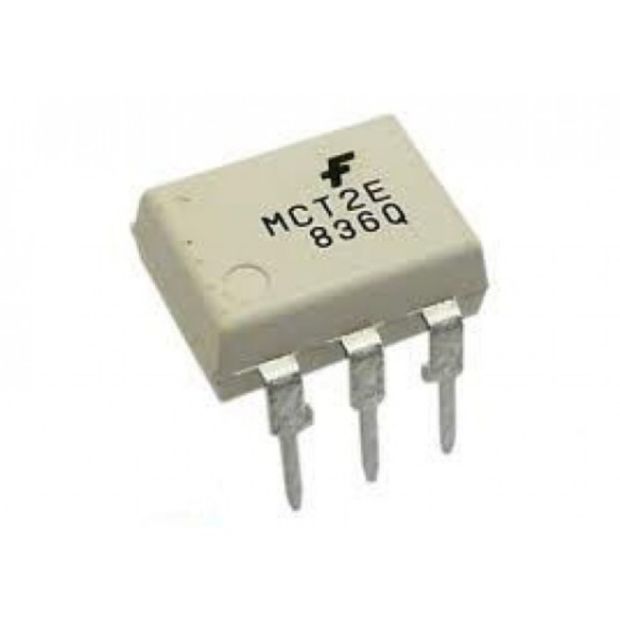

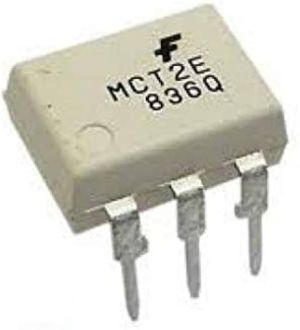

MCT2E Optocoupler/Phototransistor IC – Isolated Switching & Signal Transmission

The MCT2E Optocoupler is a highly reliable optocoupler/phototransistor IC that provides electrical isolation between two circuits while allowing for efficient signal transmission. This component is perfect for applications requiring noise suppression, safety isolation, or signal conditioning in a wide range of electronic devices.

Key Features:

• Optical Isolation: The MCT2E uses light to transmit signals between its input and output, ensuring electrical isolation. This feature protects sensitive circuits from high-voltage spikes, transients, and electrical noise.
• High-Speed Switching: Designed for fast switching applications, the MCT2E offers quick response times, making it ideal for high-frequency signal transmission.
• Wide Voltage Range: It operates over a broad voltage range, typically from 4V to 35V, which makes it suitable for both low- and high-voltage applications.
• Compact Design: The MCT2E comes in a small, 4-pin DIP package, allowing for easy integration into various circuit boards and designs.
• Built-in Phototransistor: The phototransistor on the output side ensures efficient signal transmission and the ability to switch a load in response to the input signal.
• Low Power Consumption: The MCT2E operates with low current, making it energy-efficient and ideal for battery-powered and low-power systems.
• High Isolation Voltage: It offers high isolation between input and output, typically rated up to 5000V, protecting circuits from voltage surges.

Applications:

• Signal Isolation: Ideal for isolating signals in microcontroller systems, power supplies, or communication circuits to prevent noise and spikes from affecting sensitive components.
• Switching Power Supplies: Commonly used in switching power supplies for voltage regulation and feedback isolation between high-voltage and low-voltage sections.
• Microcontroller Interfacing: Connect low-voltage microcontrollers to high-voltage systems while maintaining electrical isolation to ensure safety and reliability.
• Data Communication: Used in data communication systems to transmit signals without the risk of ground loops or electrical interference.
• Automated Systems: Great for interfacing between control and power circuits in industrial automation or home automation applications.

Specifications:

• Input Type: LED (Light Emitting Diode)
• Output Type: Phototransistor
• Voltage Rating: Typically operates between 4V to 35V
• Isolation Voltage: Up to 5000V
• Package Type: 4-pin DIP
• Response Time: Fast switching time for efficient signal transmission
• Operating Temperature: Typically from -40°C to 85°C, making it suitable for a wide range of environments

Why Choose the MCT2E Optocoupler?

• Enhanced Safety: Provides electrical isolation, preventing damage from voltage spikes and electrical noise.
• Efficient Performance: Fast switching speed ensures seamless data transfer and system responsiveness.
• Versatility: Ideal for both low- and high-voltage applications, from consumer electronics to industrial automation.

The MCT2E Optocoupler is a vital component for any project that requires signal isolation, noise reduction, or protection from electrical interference. Whether you're designing industrial control systems, power supplies, or communication circuits, the MCT2E ensures optimal performance and safety.
