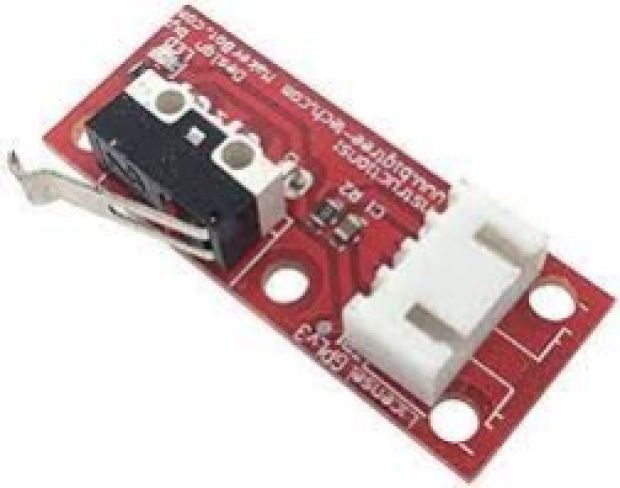

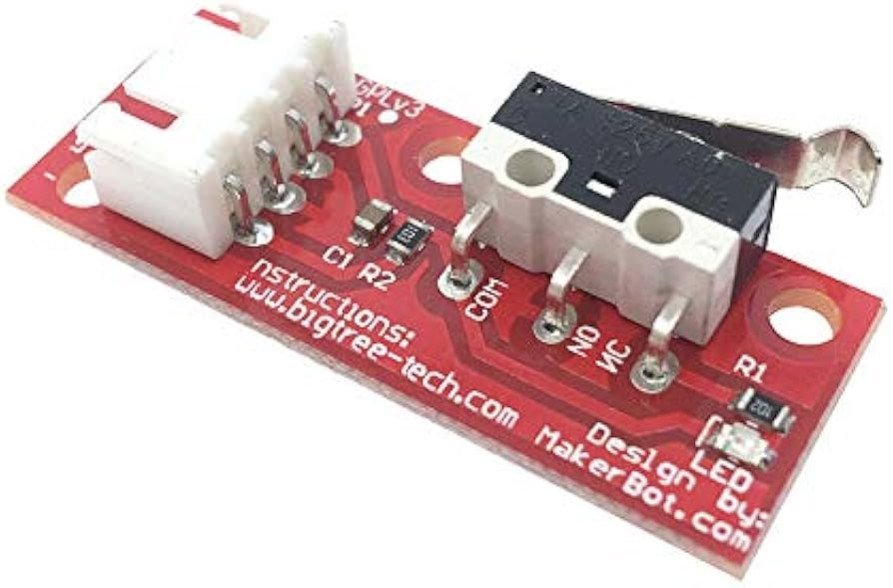

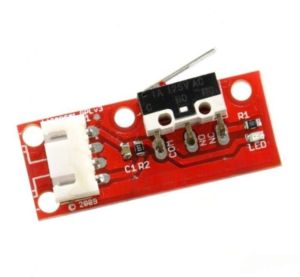

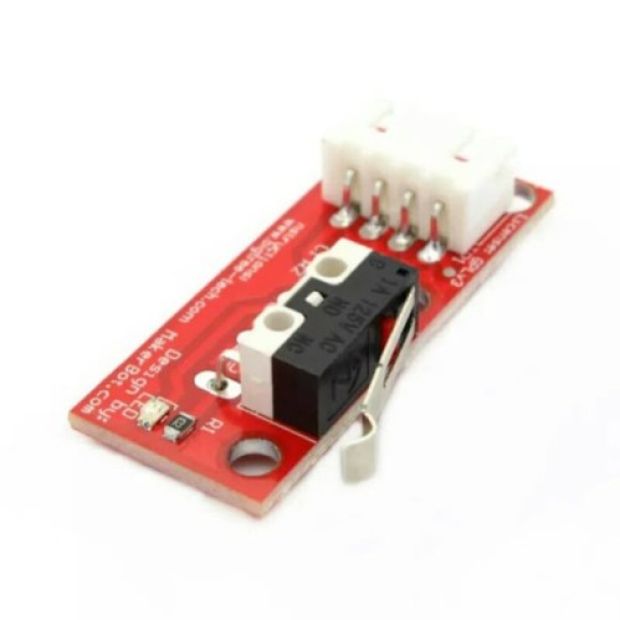

A limit switch module is a type of sensor used to detect the presence or absence of an object, or to determine the position of a moving part within a mechanical system. The “RED” designation often refers to the color of the module’s indicator or the housing, but it’s essential to understand its components and functionalities in more detail.

Components and Functions:

1. Switch Mechanism:

   • Mechanical Switch: This is the core component that makes contact to signal the presence or absence of an object. There are different types of mechanical switches like micro switches, roller switches, and push-button switches.
   • Actuator: This part physically interacts with the moving part or object. The actuator could be a lever, plunger, or roller, depending on the application.

2. Indicator Light:

   • Many limit switch modules feature a red LED or indicator light that shows the status of the switch (e.g., whether it's activated or not).

3. Output Contacts:

   • Normally Open (NO): The circuit is open when the switch is not activated and closes when the switch is actuated.
   • Normally Closed (NC): The circuit is closed when the switch is not activated and opens when the switch is actuated.
   • Common (COM): The common terminal is connected to either the NO or NC terminal based on the switch position.

4. Mounting Hardware:

   • Typically includes screws or brackets for mounting the limit switch in a fixed position.

5. Housing:

   • Provides protection for the internal components and can vary in material and design depending on the environmental conditions it needs to withstand.

Applications:

• Industrial Automation: To detect the position of machinery parts, like in CNC machines or conveyor systems.
• Safety Interlocks: To prevent machinery from operating unless certain conditions are met.
• Position Sensing: For example, in elevators or automated doors, to detect when the door is fully open or closed.
• End-of-Travel Detection: To prevent moving parts from going beyond their intended range of motion.

Typical Use in Circuits:

1. Wiring: Connect the limit switch’s output contacts to a control circuit. The NO and NC contacts allow you to integrate the switch into various logic circuits depending on whether you want the circuit to be closed or open when the switch is actuated.

2. Power Supply: Ensure that the module is powered correctly if it requires an external power source, although many limit switches simply use the electrical signals from the connected circuit.
