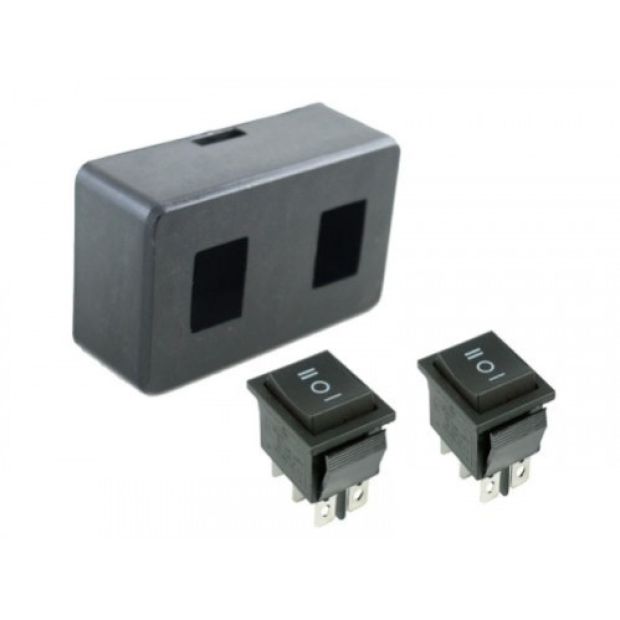

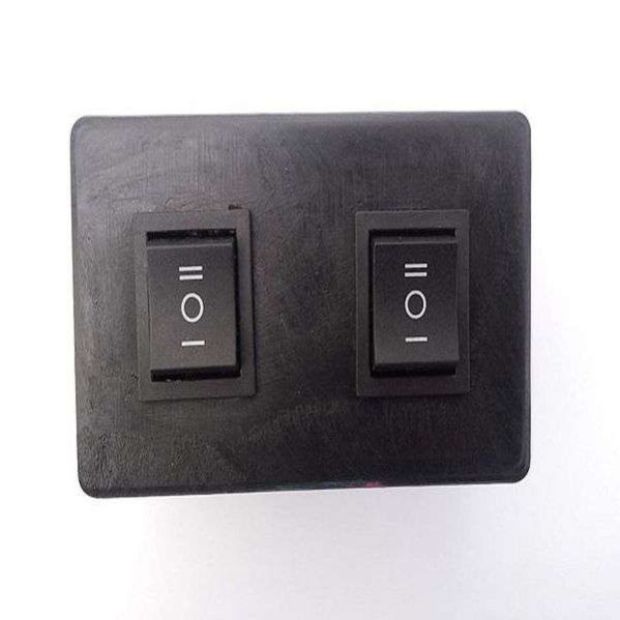

A DPDT (Double-Pole Double-Throw) 2-switch box for rocker switches is a device used to control multiple circuits or functions using two separate DPDT rocker switches. This setup allows you to manage two independent circuits with each switch having two switching positions, providing greater control and flexibility.

Key Features:

1. DPDT Switches:

   • Double-Pole: Each switch controls two separate circuits.
   • Double-Throw: Each switch has two positions (ON-ON or ON-OFF-ON), allowing for multiple connection configurations.

2. Rocker Switch Design:

   • Rocker Style: The switches have a rocker mechanism, which toggles between the two positions when pressed.

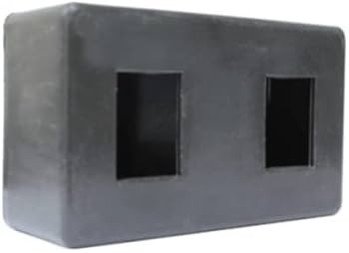

3. Switch Box:

   • Enclosure: A box or panel that houses the switches and provides mounting for wiring.
   • Mounting: Typically includes slots or mounts for securely attaching the switches and connecting wires.

4. Connections:

   • Terminals: The switch box will have terminals for connecting wires, usually labeled for easy identification.

Applications:

1. Electrical Control Panels:

   • Multi-Function Control: Used in control panels to manage various electrical functions or circuits.

2. Motor Control:

   • Direction Switching: Commonly used to control the direction of DC motors or other bidirectional devices.

3. Lighting Systems:

   • Circuit Switching: Allows for the switching of multiple lighting circuits or configurations.

4. Audio/Video Equipment:

   • Source Selection: Used to switch between different audio or video sources.

Example Configurations:

1. Two DPDT Rocker Switches:

   • Each switch controls two circuits with two positions.
   • Allows for complex control, such as reversing the direction of a motor or switching between multiple operational modes.

2. On-On Configuration:

   • Position 1: Connects the circuit to one path.
   • Position 2: Connects the circuit to another path.

3. On-Off-On Configuration:

   • Position 1: Connects to Circuit A.
   • Position 2: Disconnects the circuit (OFF).
   • Position 3: Connects to Circuit B.

Wiring and Installation:

1. Connecting the Switches:

   • Wiring Terminals: Connect wires to the terminals on each switch according to the desired configuration.
   • Pole Connections: Ensure that each pole of the DPDT switch is correctly wired to control the intended circuits.

2. Mounting:

   • Panel Installation: Install the switch box in the desired location, ensuring it is securely mounted and easily accessible.

3. Testing:

   • Verify Operation: Test each switch position to ensure it properly controls the intended circuits and functions.

Example Wiring Diagram (For a DPDT Rocker Switch Box):

For a Motor Reversal:

• Switch 1: Controls motor direction (Forward/Reverse)
• Switch 2: Controls power source or additional functionality
