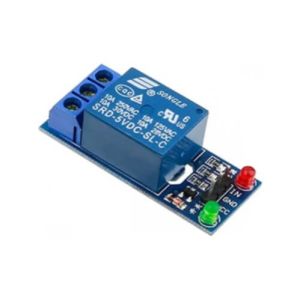

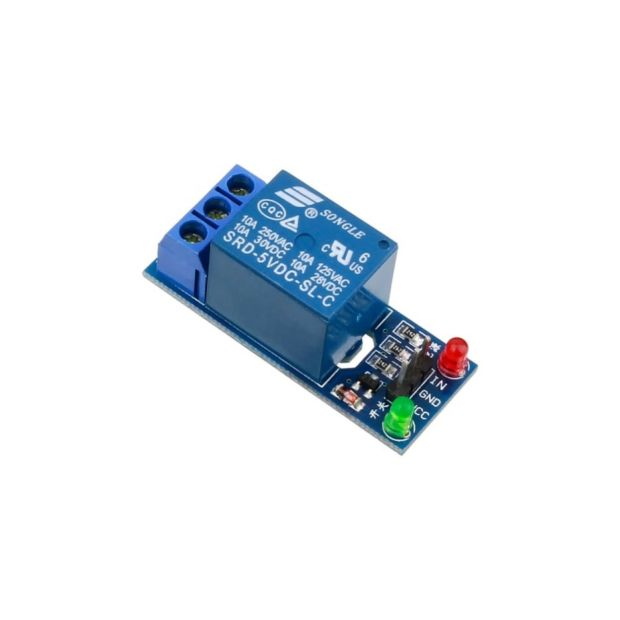

Relay 5V Dc 1 Channel module
They can be used to control devices such as lights, fans, motors, solenoids, etc. 5V relay has three high voltage terminals (NC, C, and NO) which connect to the device you want to control. The other side has three low voltage pins (Ground, Vcc, and Signal) which connect to the Arduino.
₹ 42 ₹99
99
![](https://electroboat.in/assets/front_end/classic/images/cod_logo.png)
![](https://electroboat.in/assets/front_end/classic/images/cancelable.png)
![](https://electroboat.in/assets/front_end/classic/images/returnable.png)
Add FAQ
Connecting a 5V relay module with an Arduino allows you to control higher voltage and current loads (such as lights, fans, or appliances) using the low-voltage outputs from the Arduino. Here’s a step-by-step guide on how to connect and control a 5V relay module (specifically a 1-channel relay) with an Arduino:
Components Needed:
- Arduino board (e.g., Arduino Uno)
- 5V 1-Channel relay module
- External power supply (if needed for the relay and the load)
- Jumper wires
Relay Module Pinout:
A typical 5V 1-Channel relay module has the following pins:
- VCC: Power supply (connect to Arduino +5V or an external +5V supply)
- GND: Ground (connect to Arduino GND)
- IN: Control signal input (connect to a digital output pin on the Arduino)
- NO (Normally Open): Output terminal (connect to the load that you want to control)
- COM (Common): Common terminal (connect to the other side of the load)
- NC (Normally Closed): Normally closed terminal (optional, not always used)
Wiring Instructions:
-
Power Connections:
- VCC of the relay module to +5V on the Arduino or an external +5V power supply.
- GND of the relay module to GND on the Arduino.
-
Control Signal Connection:
- IN pin of the relay module to a digital output pin on the Arduino (e.g., digital pin 7).
-
Load Connections:
- Identify the NO (Normally Open) and COM (Common) terminals on the relay module.
- Connect one terminal of the load (e.g., a light bulb or a motor) to the NO terminal of the relay module.
- Connect the other terminal of the load to the COM terminal of the relay module.
-
External Power (if needed):
- If your load requires more current than the Arduino can supply or operates at a different voltage, use an external power supply.
- Connect the positive side of the external power supply to the VCC terminal of the relay module (ensure it matches the relay module's voltage requirement).
- Connect the negative side of the external power supply to both the GND terminal of the relay module and the Arduino GND for common ground.
