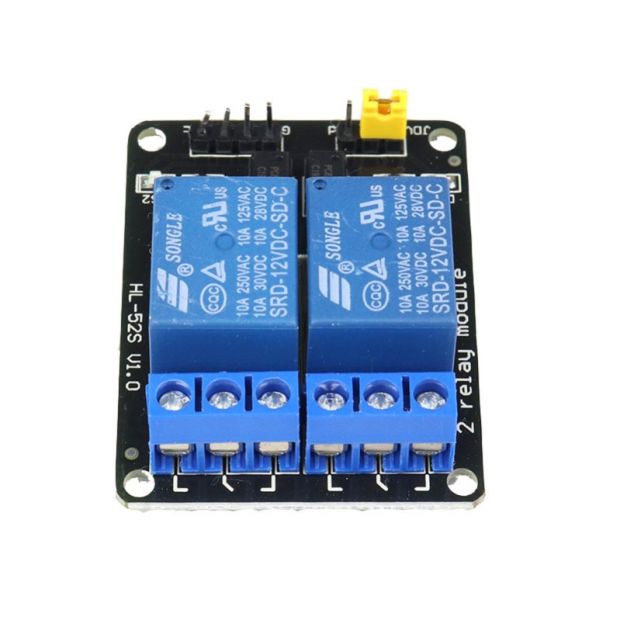

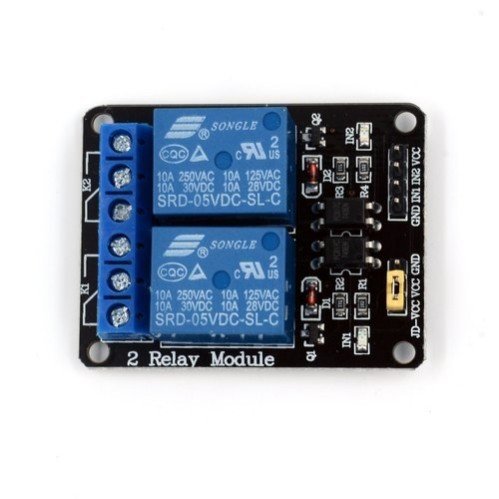

A 12V 2-Channel Relay Module is a compact and practical component used for controlling electrical devices with a 12V power supply. It is designed to switch high-voltage or high-current loads using a low-voltage control signal, making it ideal for automation and control applications. Here’s a detailed description of the 12V 2-Channel Relay Module:

Key Features:

1. Number of Channels:

   • 2 Channels: This module can control up to two separate devices independently.

2. Operating Voltage:

   • 12V DC: The relay module operates from a 12V power supply, which powers the relay coils.

3. Relay Type:

   • Electromechanical Relays: Uses electromechanical relays to switch high-voltage AC or DC loads.

4. Relay Ratings:

   • AC Load: Typically rated for 250V AC at 10A.
   • DC Load: Typically rated for 30V DC at 10A.
   • Ensure to verify the specific ratings from the relay's datasheet to match your application's needs.

5. Control Signal:

   • 5V TTL Compatible: The module can be controlled using a 5V TTL (Transistor-Transistor Logic) signal from a microcontroller such as Arduino or Raspberry Pi.

6. Isolation:

   • Optical Isolation: Includes optocouplers to provide electrical isolation between the low-voltage control side and the high-voltage load side, protecting the control circuitry from high-voltage spikes.

7. Indicator LEDs:

   • LED Indicators: Each relay channel usually has an onboard LED that lights up when the relay is activated, providing visual feedback on the relay's status.

8. Relay Pins:

   • VCC: Power supply pin for the relay module (12V DC).
   • GND: Ground pin for the relay module.
   • IN1: Control pin for Relay 1.
   • IN2: Control pin for Relay 2.
   • NO (Normally Open): Relay contact that closes when the relay is activated.
   • NC (Normally Closed): Relay contact that opens when the relay is activated.
   • COM (Common): Common terminal for the relay switch.

Applications:

• Home Automation: Used to control household appliances like lights, fans, and other devices.
• Industrial Automation: Switches machinery or equipment on and off.
• Power Control: Manages power to devices in experiments or prototypes.
• Automated Systems: Integrates into systems for different operational states requiring relay switching.

Example Connection with Arduino:

To connect and control a 12V 2-Channel Relay Module with an Arduino, follow these steps:

Wiring Instructions:

1. Relay Module to Arduino:

   • VCC (Relay Module) to 5V (Arduino) (Note: Some modules might require a separate 12V power supply for relays, ensure compatibility).
   • GND (Relay Module) to GND (Arduino).
   • IN1 (Relay 1 control) to Digital Pin 2 (Arduino).
   • IN2 (Relay 2 control) to Digital Pin 3 (Arduino).

2. Load Connection:

   • NO (Relay 1) to one terminal of the load.
   • COM (Relay 1) to the power supply (AC or DC, depending on your load).
   • Other terminal of the load to the ground or neutral of the power supply.
   • Repeat for Relay 2 as needed.
