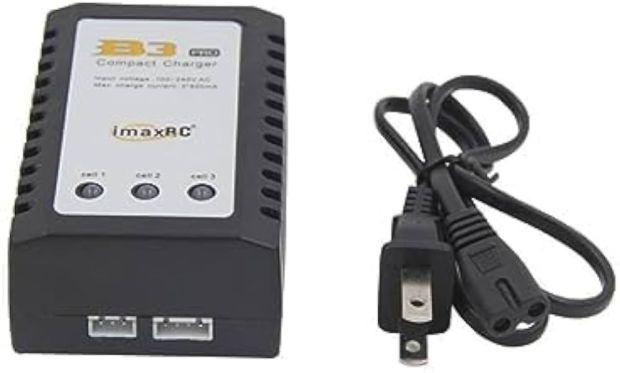

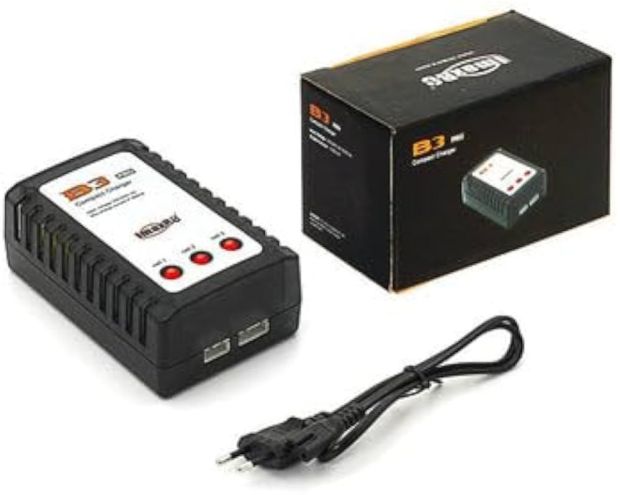

The IMAX B3 is a balance charger designed for charging LiPo (Lithium Polymer) and Li-ion batteries, commonly used in drone applications. It is a compact and budget-friendly charger, especially suitable for smaller batteries such as 2S (2-cell) and 3S (3-cell) LiPo batteries, which are typically found in toy drones, RC aircraft, or small drones. It features an automatic balance charging system to ensure safe and efficient charging of multi-cell batteries.

Key Features of the IMAX B3 Charger:

1. Battery Types:

   • It supports charging for LiPo (Lithium Polymer) and Li-ion batteries.
   • It can charge 2S (7.4V) and 3S (11.1V) batteries, which are the common voltages used in many drone models.

2. Balance Charging:

   • The IMAX B3 includes a balance charging function. This ensures that each cell in the battery is charged to the correct voltage, preventing overcharging of any single cell, which can be dangerous. It helps prolong battery lifespan and ensures the overall safety of the battery.

3. Compact Size:

   • The charger is relatively small and lightweight, which makes it very portable and suitable for use with smaller drones.

4. Charging Current:

   • It provides a maximum charge current of 800mA (0.8A), which is ideal for small drones and their batteries. The charging current is typically lower for small drone batteries to ensure safety and extend the lifespan of the battery.

5. Safety Features:

   • The charger includes basic safety features, such as overcharge protection, short-circuit protection, and reverse polarity protection. This helps prevent accidents and battery damage during charging.

6. LED Indicators:

   • The charger has LED lights that indicate the charging status. Generally, the LED will show a red light when charging, and it will turn green once the charging is complete, indicating that the battery is fully charged.

7. Input Voltage:

   • The IMAX B3 charger can be powered by a DC 12V input, which is typically supplied via a 12V power adapter or other compatible DC power sources.

How the IMAX B3 Charger Works:

1. Connect the Battery:
   • Connect the battery to the charger using the JST-XH balance connector. This is the main connector for LiPo batteries, and it allows the charger to monitor and balance the individual cells during the charging process.
2. Input Power:
   • Connect a 12V DC power supply to the charger’s input. The input voltage range is usually 12V but check the manufacturer's specifications to confirm compatibility.
3. LED Indicators:
   • Once connected, the LED indicator will typically turn red to show that charging is in progress. When the charging process is complete, the light will change to green to signal that the battery is fully charged.
4. Automatic Balance Charging:
   • The charger automatically balances the individual cells of the battery, ensuring each cell gets charged to the correct voltage and preventing overcharging or undercharging.

Applications of the IMAX B3 Charger:

• Small Drones: It is ideal for smaller drones or quadcopters that use 2S or 3S LiPo batteries. Many beginner or mid-range drones that use lightweight, smaller LiPo batteries will be compatible with the IMAX B3.
• RC Cars, Planes, and Boats: Any other RC hobby devices using LiPo or Li-ion batteries of similar voltages (2S or 3S) can also be charged using the IMAX B3.
• Small Battery Charging Projects: Hobbyists working with small battery-powered projects will also find the IMAX B3 useful.

Advantages of the IMAX B3 Charger:

• Affordability: The IMAX B3 is relatively inexpensive compared to other balance chargers, making it a great option for hobbyists and beginners.
• Compact and Portable: Its small size and portability make it convenient for traveling or outdoor drone flying sessions.
• User-Friendly: With its simple LED indicators and automatic balance charging, the charger is easy to use, even for beginners.

Limitations of the IMAX B3 Charger:

• Charging Speed: The charger offers a maximum charge rate of 800mA, which might be slow for larger batteries. If you're working with bigger batteries or need faster charging times, a higher current charger may be required.
• Limited to 2S/3S: The charger is only suitable for 2S and 3S LiPo or Li-ion batteries. It does not support higher cell count batteries (e.g., 4S, 6S, or 12S).
• No LCD Display: Unlike some advanced chargers, it does not provide detailed information like charging time, current, or voltage for each cell.

Charging Process Overview:

1. Connect the battery's balance plug to the charger.
2. Connect a 12V power supply to the charger.
3. The LED indicator will turn red, showing that charging has started.
4. When the battery is fully charged, the LED indicator will turn green.
5. Disconnect the battery once it is fully charged to avoid overcharging.

Conclusion:

The IMAX B3 charger is a great choice for small drone enthusiasts or hobbyists who need to safely charge 2S and 3S LiPo or Li-ion batteries. With its balance charging feature, it ensures the cells are charged correctly, providing better battery longevity and safety. It is compact, easy to use, and very affordable for hobbyist applications, making it a good option for small drone owners looking for a reliable, budget-friendly charger.
