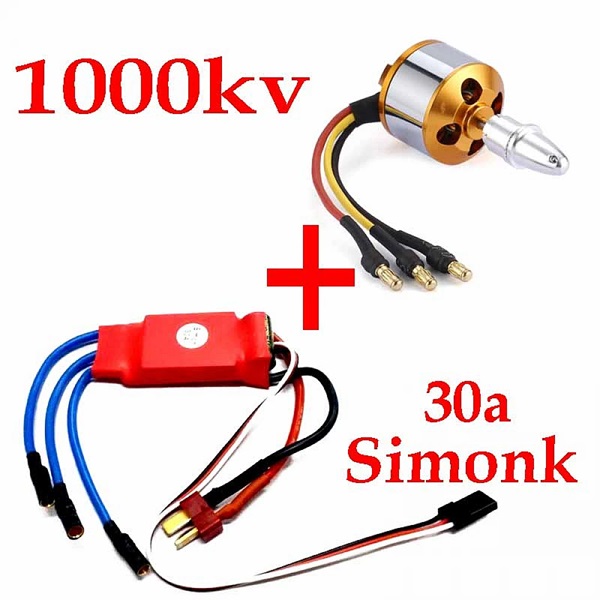

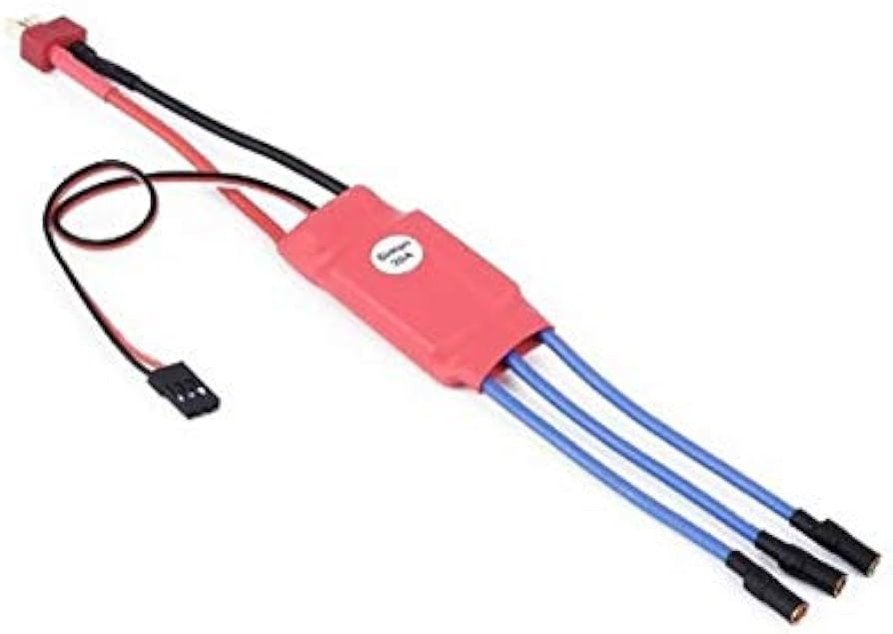

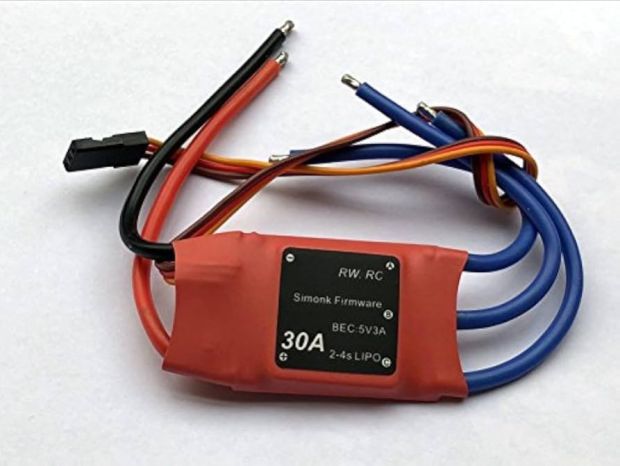

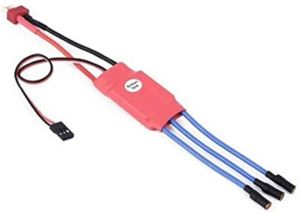

The 30A SimonK ESC (Electronic Speed Controller) is a widely used brushless motor controller for multirotor drones, especially in the hobbyist and DIY drone community. It is designed to control the speed of brushless motors, which are commonly used in drones for efficient and high-performance flight.

The term SimonK refers to a popular firmware that is flashed onto ESCs, providing smoother and more reliable motor control, especially at low speeds, which is crucial for stable flight in drones.

Key Features of the 30A SimonK ESC for Drone:

1. Current Rating:

   • 30A refers to the maximum continuous current the ESC can handle. This means the ESC can safely drive a brushless motor with a current draw of up to 30 Amps. It's suitable for medium-sized drones, typically using motors in the 1000-2500KV range with 3S or 4S LiPo batteries.

2. SimonK Firmware:

   • SimonK firmware is an optimized, open-source firmware that is popular for use with multirotor drones. It allows for:
     • Improved throttle response and smooth motor control.
     • Faster motor startup and improved handling of low-speed conditions, reducing motor stuttering and improving stability.
     • Better efficiency, which leads to longer flight times.
     • Compatibility with a wide range of flight controllers like KK2, APM, Pixhawk, or NAZA.

3. Support for Brushless Motors:

   • The 30A SimonK ESC is designed for brushless motors, which are commonly used in multirotors and provide better efficiency, power, and durability compared to brushed motors.

4. Battery Voltage:

   • Typically, these ESCs are compatible with 3S and 4S LiPo batteries, meaning they can support voltage ranges of 11.1V to 14.8V (for 3S) and 14.8V to 16.8V (for 4S), which are common battery configurations for drones.

5. BEC (Battery Eliminator Circuit):

   • Some SimonK ESCs include a 5V or 12V BEC (Battery Eliminator Circuit). This feature allows the ESC to power the flight controller or other components like the receiver from the drone’s main battery, eliminating the need for separate power supplies.

6. Motor PWM Frequency:

   • The SimonK ESC often operates at a high PWM (Pulse Width Modulation) frequency, which results in better motor control and smoother throttle response.

7. Compact Design:

   • The 30A SimonK ESC is typically a compact and lightweight design, which is crucial for drones where weight and size play a significant role in performance. The ESC's small form factor allows it to fit neatly on drone frames.

8. Overcurrent and Overtemperature Protection:

   • Many 30A SimonK ESCs come with built-in overcurrent and overtemperature protection, helping to prevent damage to the ESC and motors in the event of excessive current draw or heat buildup.

9. Reverse Polarity Protection:

   • Many ESCs, including the 30A SimonK model, come with reverse polarity protection, ensuring the ESC will not be damaged if the battery is connected incorrectly (swapping positive and negative wires).

10. Smooth Throttle Response:

• The SimonK firmware is particularly praised for providing smoother and more linear throttle responses, improving the overall flight performance, especially in maneuvers requiring precise motor control.

Advantages of the 30A SimonK ESC:

1. Improved Performance:

   • SimonK firmware enhances the smoothness of motor operation, making the drone more responsive and stable, particularly at low speeds, which is crucial for FPV (First Person View) and aerial photography.

2. Affordable:

   • The 30A SimonK ESC offers good performance at a reasonable price, making it a popular choice for hobbyists and DIY drone builders who are on a budget.

3. Reliability:

   • These ESCs are well-regarded for their reliability, especially when running under continuous load during flight. They are designed to handle high-speed operations without overheating or stuttering.

4. Wide Compatibility:

   • The 30A SimonK ESC works well with a wide range of brushless motors and flight controllers, making it a versatile option for different drone builds and setups.

5. Easy to Configure:

   • These ESCs are usually plug-and-play, with simple calibration procedures to set up the throttle range and motor directions.

6. Durable and Lightweight:

   • The ESCs are typically built to be both lightweight and durable, which is essential for drone performance, as additional weight can reduce flight time and affect maneuverability.

7. Excellent for Beginners and Intermediate Users:

   • The SimonK ESC is well-suited for beginners due to its simplicity and affordability, while also providing enough features for more experienced drone builders.

Disadvantages of the 30A SimonK ESC:

1. No Advanced Features:

   • While the SimonK firmware improves motor control, it lacks advanced features like telemetry, active braking, or logging found in more high-end ESCs. These features are typically found in BLHeli or KISS ESCs, which provide more sophisticated tuning options.

2. Not Ideal for High-Power Applications:

   • The 30A current rating might not be sufficient for larger drone setups with heavier payloads or high-power motors. For drones that need more power, higher-rated ESCs (like 40A, 50A, or 100A) would be more appropriate.

3. Lack of Telemetry and Tuning:

   • The SimonK ESC doesn't natively support telemetry features like RPM readings or temperature monitoring. For these features, more advanced ESCs and protocols (like BLHeli or KISS) would be needed.

4. Not as High-End as Other ESC Options:

   • While the 30A SimonK ESC provides great value for the price, it doesn't match the performance or features of high-end ESCs used in professional-grade drones. For racing drones or heavy-lift drones, you might need something more advanced.

Applications of the 30A SimonK ESC:

1. DIY Drones:

   • The 30A SimonK ESC is often used in custom drone builds and hobbyist drone projects. It works well with a variety of quadcopters, hexacopters, and other multirotor drone configurations.

2. FPV Racing Drones:

   • Due to its smooth motor control, this ESC is a popular choice for FPV racing drones, where responsiveness and stability are key to achieving high performance during fast maneuvers.

3. Aerial Photography Drones:

   • The 30A SimonK ESC can be used in drones intended for aerial photography or cinematography, where smooth and stable flight is necessary to capture high-quality footage.

4. Education and Hobby Use:

   • The 30A SimonK ESC is widely used in STEM education projects and by hobbyists looking for a cost-effective solution to build or modify drones.

Conclusion:

The 30A SimonK ESC is a solid and reliable choice for medium-sized drone builds, providing efficient motor control with smooth throttle response, especially at low speeds. It’s perfect for hobbyists, beginners, and those looking for an affordable, straightforward option to power their brushless motors. However, it may not be suitable for high-power drones or applications requiring advanced features such as telemetry or extensive customization. The SimonK firmware helps ensure a stable flight experience, making it a popular choice for multirotor drones, especially in FPV racing and DIY projects.
