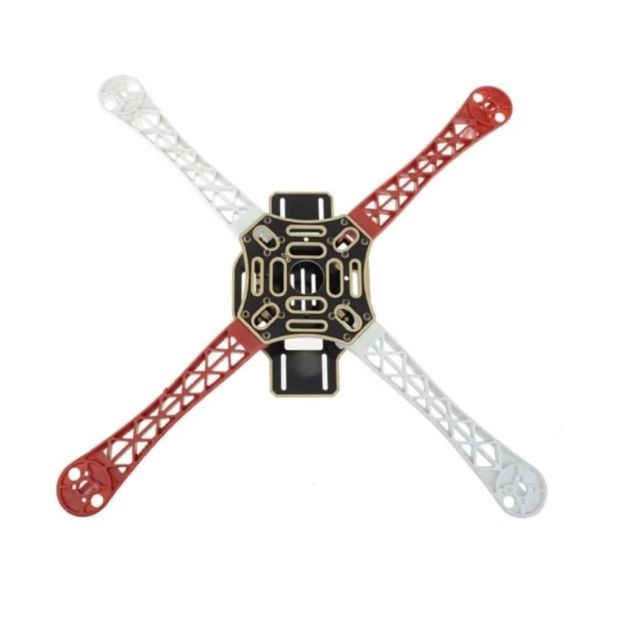

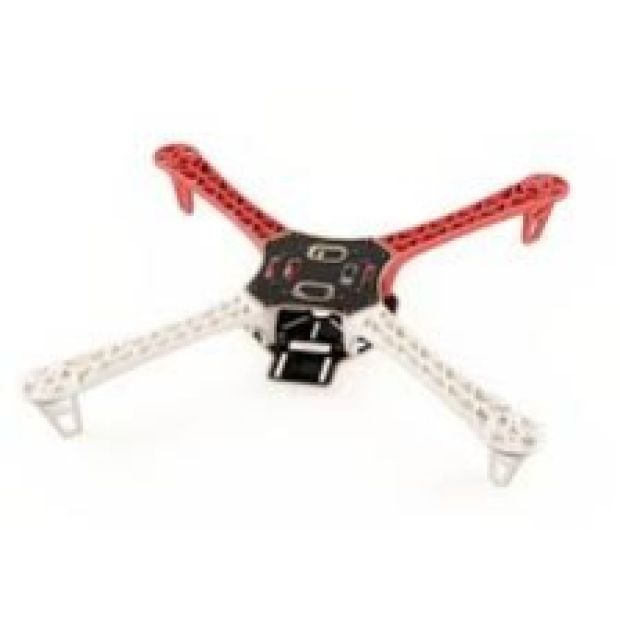

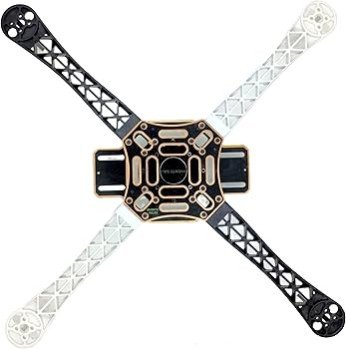

The F450 Drone Frame is a popular quadcopter frame that is widely used in the drone community, especially for hobbyists and DIY drone enthusiasts. It is a lightweight and sturdy frame, typically designed for multirotor drones, and it's often used for FPV (First Person View) flying, aerial photography, and racing drones.

Key Features of the F450 Drone Frame:

1. Frame Type:

   • The F450 frame is generally a quadcopeter frame, meaning it has four arms, each typically located at the four corners of the drone. This setup gives it stability and manoeuvrability during flight.

2. Material:

   • The F450 drone frame is often made of lightweight, durable materials, such as carbon fiber, plastic, or fiberglass.
   • Carbon fiber frames are the most popular due to their strength-to-weight ratio, making them both light and resilient to damage from minor crashes.

3. Size:

   • The F450 refers to the frame's diagonal wheelbase, which measures 450mm from motor mount to motor mount (diagonally). This is a good size for medium-sized drones and provides a good balance between flight time, stability, and agility.
   • The frame is suitable for medium to large motors and can support various payloads, such as FPV cameras, gimbals, action cameras, or other equipment.

4. Motor and Propeller Compatibility:

   • The F450 frame typically supports motor sizes like 2212, 2216, or other similar sizes.
   • It is compatible with a range of propellers, typically ranging from 8 to 12 inches, though most commonly used sizes are 10-inch or 11-inch propellers.

5. Weight:

   • The weight of the F450 frame varies depending on the material used but typically ranges between 300g and 600g. The carbon fiber versions tend to be lighter, around 300g, while plastic or fiberglass versions may weigh more.
   • It provides a decent payload capacity to carry additional equipment, such as a camera or FPV system.

6. Flight Control Compatibility:

   • The F450 frame can be paired with a variety of flight controllers like the DJI Naza, KK2, APM, or Pixhawk. These flight controllers provide the necessary control for stabilizing and navigating the drone.

7. Landing Gear:

   • Some versions of the F450 frame include landing gear, providing extra ground clearance and protection for the drone's components, such as the motors and propellers, during takeoff and landing.

8. Battery Compartment:

   • The F450 frame typically has a battery mounting area that can accommodate 3S or 4S LiPo batteries. A 3S (11.1V) or 4S (14.8V) battery is typically used for powering the motors and providing sufficient flight time.

Advantages of the F450 Drone Frame:

1. Lightweight and Strong:

   • The lightweight yet strong materials, especially carbon fiber, make the F450 frame durable and resistant to damage from minor crashes.

2. Modular Design:

   • The frame typically comes as a modular kit, meaning you can easily swap out parts like the arms, landing gear, or battery tray if needed.

3. Customization:

   • The F450 frame offers good customization options for mounting FPV cameras, gimbals, or other sensors, making it suitable for aerial photography and cinematography.

4. Affordability:

   • Compared to other commercial drone frames, the F450 is relatively affordable, making it a popular choice for hobbyists or first-time drone builders.

5. Stable Flight Performance:

   • The 450mm wheelbase provides a stable flight performance, making it a good option for beginners and intermediate drone enthusiasts. It is also versatile enough for various types of flying, including FPV, aerial photography, or racing.

6. Wide Availability:

   • As one of the most common drone frames in the market, the F450 is widely available, and there are plenty of resources (manuals, tutorials, community support) to help you with building or modifying your drone.

Disadvantages of the F450 Drone Frame:

1. Not Ideal for Heavy Payloads:

   • While it has a good payload capacity for small cameras or FPV gear, the F450 frame may not be suitable for heavier payloads, such as large cameras, heavy gimbals, or professional-grade equipment. For those, you might want to consider a larger frame (e.g., F550, F650).

2. Limited Battery Capacity:

   • With the typical 3S or 4S LiPo batteries, the flight time is usually limited to 15-30 minutes. For longer flight times, you may need to use a larger frame or a battery with a higher mAh rating.

3. Requires Assembly:

   • The F450 frame often comes as a kit that requires assembly. This is ideal for those who enjoy building their drones but may be challenging for beginners who are not familiar with drone assembly.

Applications of the F450 Drone Frame:

1. Hobbyist Drones:

   • The F450 frame is widely used by hobbyists and DIY drone builders due to its balanced performance and cost-effectiveness. It is easy to work with and can support a wide range of motors and components.

2. FPV Racing and Freestyle:

   • The F450 frame offers a good combination of stability and agility, making it a solid choice for FPV racing and freestyle flying. The frame can handle the high-speed maneuvers and agility required in racing while maintaining stability.

3. Aerial Photography and Cinematography:

   • With the ability to carry small to medium-sized cameras (such as GoPro, DJI Osmo, or small mirrorless cameras), the F450 frame is often used for aerial photography and cinematography. Its stable flight capabilities make it suitable for capturing smooth, high-quality footage.

4. Educational Projects:

   • The F450 frame is also popular for STEM (Science, Technology, Engineering, and Mathematics) projects and educational purposes. It offers students and enthusiasts a hands-on learning experience in drone building, flight control, and other areas of robotics and aerospace engineering.

Conclusion:

The F450 drone frame is a well-regarded and versatile choice for both hobbyists and enthusiasts. It offers a balance of lightweight design, durability, and stability, making it suitable for various applications, including FPV flying, aerial photography, and DIY drone building. With its modular design, ease of customization, and wide availability, the F450 remains one of the most popular drone frames for those looking to build their own multirotor drone.
