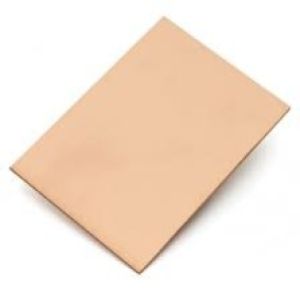

A Copper Clad PCB (Printed Circuit Board) refers to a type of circuit board made from an insulating material (usually fiberglass or phenolic resin) with a copper layer bonded to one or both sides. The copper layer serves as the conductive pathway for the circuit, where components like resistors, capacitors, and microchips are mounted and connected.

Copper-clad PCBs are commonly used in various electronic devices, including Arduino projects, Raspberry Pi accessories, consumer electronics, and prototyping applications.

Key Features and Details:

1. Copper Layer:

   • The key feature of a copper-clad PCB is the copper foil layer that covers the surface of the board. This copper layer is typically made from electrolytic copper and is usually 35µm (1 oz/ft²) thick, but it can also be found in thicker or thinner variations, depending on the application requirements.
   • The copper is chemically etched to form the desired electrical traces or conductive paths on the board.

2. Material:

   • The core material of the PCB is usually fiberglass (such as FR4), which is a highly durable, insulating material. Some other materials used for the insulating layer include phenolic (less expensive) or CEM1/CEM3 boards.
   • The copper-clad surface is bonded to the insulating core through heat and pressure.

3. Types of Copper Clad PCBs:

   • Single-Sided Copper Clad PCB: A PCB with copper on one side of the insulating material, used for simpler circuits with fewer components.
   • Double-Sided Copper Clad PCB: A PCB with copper on both sides, offering more space for routing traces, which allows for more complex circuit designs.
   • Multilayer Copper Clad PCB: These PCBs have multiple layers of copper and insulating material. They are typically used for advanced, high-density designs in applications like computers and communication devices.

4. PCB Manufacturing Process:

   • The manufacturing of a copper-clad PCB generally involves laminating the copper foil onto the insulating substrate.
   • The design of the circuit is then transferred onto the copper layer using photographic or laser etching methods.
   • Unwanted copper is etched away using a chemical process to leave behind only the desired copper traces.
   • Drilling holes for components and vias (connections between layers) is done, followed by solder mask application (a protective layer) and silkscreen printing for component labels.

5. Applications:

   • Prototyping: Copper-clad PCBs are widely used for creating prototypes, especially in the DIY electronics community. These PCBs allow hobbyists to design and test their circuits before mass production.
   • Consumer Electronics: Many consumer electronics, including smartphones, computers, and televisions, use multi-layer copper-clad PCBs for compact and high-performance circuit designs.
   • Arduino and Raspberry Pi Projects: When developing custom circuits for Arduino or Raspberry Pi, copper-clad PCBs are often used to create compact, efficient, and durable designs.

6. Advantages:

   • Durability: Copper-clad PCBs are durable and resistant to damage, making them suitable for various applications, including harsh environments.
   • Customizability: You can design custom circuit patterns for specific needs, ensuring that your project fits your exact requirements.
   • Cost-effective for Prototyping: Copper-clad PCBs are relatively inexpensive for prototyping and small-run production, especially when compared to more complex, multi-layer PCBs.
   • Reliable Electrical Connection: The copper layer ensures a reliable electrical connection between components and provides stable operation.

7. Disadvantages:

   • Limited Space on Single-Sided Boards: Single-sided copper-clad PCBs have limited space for routing traces, which may not be suitable for more complex circuits.
   • Heat Dissipation: Although copper is an excellent conductor of heat, dense circuits on copper-clad PCBs can still experience heat issues that require additional heat management techniques.

Types of Copper Clad PCBs by Application:

1. Single-Sided Copper Clad PCB:

   • Used in simple, less complex designs.
   • Common in low-cost applications and basic circuits.

2. Double-Sided Copper Clad PCB:

   • More complex designs with components on both sides.
   • Used in applications where space is limited but more components are required, such as power supplies, audio amplifiers, etc.

3. Multilayer Copper Clad PCB:

   • Used in high-density applications with multiple layers of circuits.
   • Common in advanced consumer electronics, computers, and communication devices.

Applications in Specific Projects:

• Arduino Projects: Copper-clad PCBs are ideal for creating custom Arduino shields or breakout boards that interface with sensors, displays, and other components.

• Raspberry Pi Projects: For Raspberry Pi accessories or custom add-ons (like sensor interfaces, HATs, or custom shields), a copper-clad PCB offers the versatility needed for prototyping and development.

• DIY Electronics Projects: Whether for audio circuits, motor controllers, or lighting projects, a copper-clad PCB provides a reliable foundation for custom circuit designs.

Conclusion:

A Copper Clad PCB is an essential component in the world of electronics, offering a stable, reliable, and customizable surface for building circuits. With copper providing the electrical pathways and an insulating core for stability, these boards are ideal for both prototyping and mass production of electronic devices. Whether you're creating a simple circuit or a multi-layer, complex design, a copper-clad PCB is an indispensable tool for the modern engineer and hobbyist.
