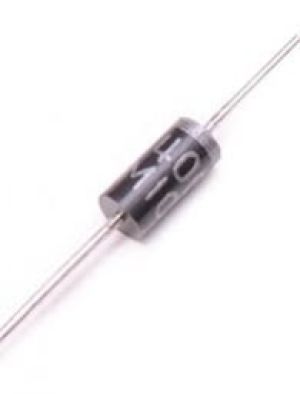

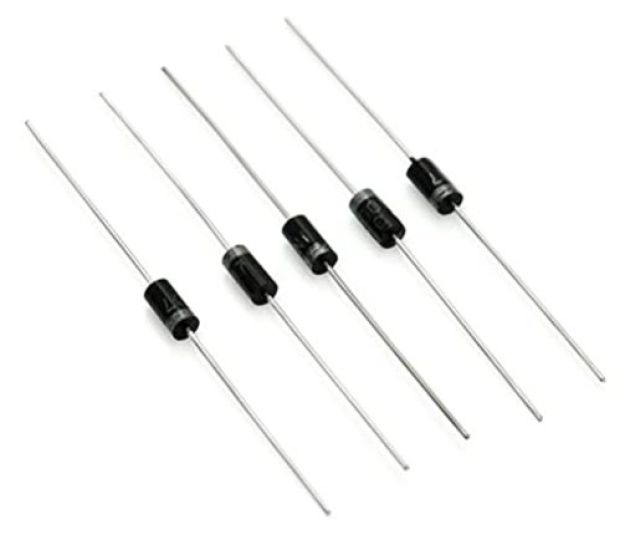

The 1N4007 is a widely used general-purpose rectifier diode. It is part of the 1N400x series, which includes diodes with different current and voltage ratings. The 1N4007 is one of the most popular diodes for use in a variety of applications, particularly for power rectification in AC-to-DC conversion circuits. Here's a detailed look at the 1N4007 diode, its specifications, applications, and key characteristics:

Key Specifications of the 1N4007 Diode:

1. Peak Inverse Voltage (PIV):

   • The 1N4007 has a peak inverse voltage of 1000V. This means the diode can withstand reverse voltages up to 1000V without breaking down. This high PIV makes it suitable for high-voltage applications.

2. Average Forward Current:

   • The diode can handle an average forward current of 1A. This is the maximum current the diode can conduct in the forward direction without overheating. This makes it suitable for low- to medium-power applications.

3. Forward Voltage Drop:

   • The forward voltage drop (Vf) of the 1N4007 is typically 0.7V when conducting current. This means when current is flowing through the diode in the forward direction, the voltage drop across the diode will be around 0.7V.

4. Reverse Recovery Time:

   • The reverse recovery time is relatively long for a 1N4007 compared to other diodes like Schottky diodes, but this is normal for a standard rectifier diode. The reverse recovery time is around 30 to 50 nanoseconds.

5. Maximum Power Dissipation:

   • The 1N4007 can dissipate up to 3W of power. This indicates the amount of power the diode can handle before it risks damage due to excessive heat.

6. Operating Temperature:

   • The diode is typically rated to operate in temperatures ranging from -55°C to +150°C, which makes it suitable for a wide range of environments.

Key Characteristics:

1. Rectifying Function:

   • The 1N4007 is a rectifier diode, which means it allows current to pass in one direction (forward direction) and blocks current in the reverse direction. This makes it ideal for use in power supplies, AC-to-DC conversion, and other applications requiring current rectification.

2. Reverse Leakage Current:

   • When the diode is in the reverse-biased state, it has a very small reverse leakage current, typically in the nanoampere range, which makes it very effective at blocking reverse current.

3. Durability:

   • The 1N4007 is durable and robust, capable of withstanding high voltages and moderate currents. This is why it’s commonly used in power supplies, transformers, and other high-voltage applications.

Common Applications of the 1N4007 Diode:

1. AC-to-DC Rectification:

   • The 1N4007 is frequently used in rectifier circuits to convert AC (Alternating Current) into DC (Direct Current). This is a typical application in power supplies, where AC voltage from the grid needs to be converted into usable DC voltage to power electronic devices.
   • The diode is often used in bridge rectifiers, where four diodes are arranged to rectify both halves of the AC waveform.

2. Power Supply Circuits:

   • 1N4007 diodes are commonly found in power supply circuits to protect the circuit from reverse voltage spikes and to help with the rectification process in DC power supplies.

3. Flyback Diode in Motors and Relays:

   • In circuits with motors, inductive loads, or relays, the 1N4007 can be used as a flyback diode to protect the circuit from voltage spikes that can occur when the current is suddenly interrupted. This is important for protecting sensitive electronic components.

4. Reverse Voltage Protection:

   • The 1N4007 can be used in circuits where it is important to protect against reverse polarity. If the input voltage is accidentally reversed, the diode can block the reverse current, preventing damage to the circuit components.

5. Voltage Clamping and Protection Circuits:

   • The diode can be used in clamping circuits to limit the voltage in sensitive components, protecting them from spikes and high-voltage transients.

6. Battery Charging Circuits:

   • In charging circuits, especially for lead-acid batteries or other rechargeable battery systems, the 1N4007 can be used for rectifying AC input or to prevent reverse current flow.

Example Circuit: Bridge Rectifier with 1N4007 Diodes

A bridge rectifier is a common application for the 1N4007 diode. In this circuit, four diodes are arranged in a bridge configuration to convert an AC input into a DC output.

• AC Input: An alternating current (AC) voltage source is connected to the bridge.
• Diodes: Four 1N4007 diodes are arranged in a bridge configuration. During the positive half of the AC cycle, two diodes conduct, allowing current to pass through the load in one direction. During the negative half of the AC cycle, the other two diodes conduct, allowing current to pass through the load in the same direction.
• DC Output: The output from the bridge rectifier will be a pulsating direct current (DC), which can be further smoothed using capacitors to provide a steady DC voltage.

Advantages of Using the 1N4007 Diode:

1. High Reverse Voltage Rating:

   • The 1N4007 can handle reverse voltages up to 1000V, making it suitable for high-voltage applications where other diodes might not be able to withstand the voltage.

2. Versatility:

   • The 1N4007 is versatile and can be used in a wide variety of applications, from power rectification to reverse voltage protection and flyback protection.

3. Durability and Robustness:

   • The 1N4007 is a durable and reliable diode, capable of operating in a wide temperature range and withstanding higher voltages and moderate currents.

4. Low Cost:

   • The 1N4007 is inexpensive, making it a popular choice for both hobbyists and professionals. It is widely available and commonly found in various electronic and power supply circuits.

Limitations:

1. Slow Recovery Time:

   • The 1N4007 has a relatively slow reverse recovery time compared to faster diodes like Schottky diodes. This may make it unsuitable for high-frequency applications where fast switching is required.

2. Not Suitable for High-Frequency Applications:

   • Due to its relatively long recovery time and higher forward voltage drop, the 1N4007 is not ideal for high-frequency applications, such as RF circuits or digital logic circuits.

3. Limited to Moderate Currents:

   • The 1N4007 can handle up to 1A of continuous forward current, which is suitable for most general-purpose applications but may not be appropriate for circuits requiring higher currents.

Conclusion:

The 1N4007 is a robust and reliable diode that is well-suited for use in rectifier circuits, reverse voltage protection, flyback protection, and power supplies. Its high reverse voltage rating of 1000V and moderate current handling make it versatile and widely used in many electronic applications. However, its slow recovery time and moderate current rating make it less ideal for high-frequency or high-current applications. The 1N4007 is a cost-effective and easy-to-use component, perfect for power conversion and protection in many electronic designs.
