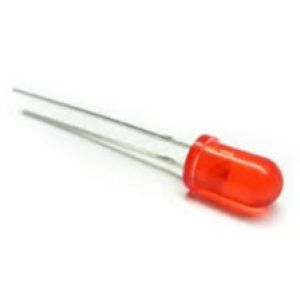

A 5mm red LED is a Light Emitting Diode (LED) that emits red light when an electrical current passes through it. The 5mm refers to the diameter of the LED casing, which is a standard size used in many electronic projects and applications. Red LEDs are one of the most commonly used types of LEDs due to their visibility, ease of use, and low power consumption.

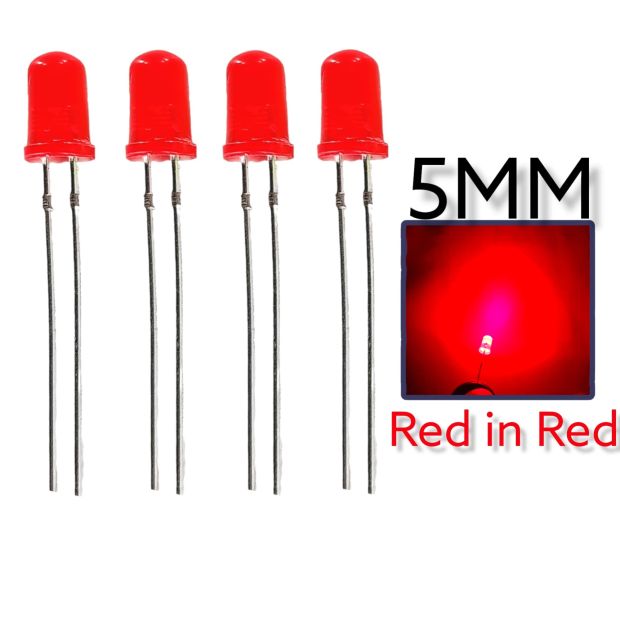

Key Features of a 5mm Red LED:

1. Size:

   • The 5mm diameter is a standard size for LEDs, meaning the LED casing has a diameter of 5mm. This size is compact and widely used in both hobby electronics and commercial applications.

2. Color:

   • Red LEDs emit light in the red region of the visible spectrum, typically between 620 and 750 nanometers (nm). Red is a common color used for indicators, warnings, and error states because it is easily noticeable.

3. Voltage and Current:

   • Forward voltage: A typical red LED has a forward voltage around 1.8V to 2.2V, which is lower than other color LEDs like green or blue.
   • Current: The standard operating current for most LEDs is 20mA (milliamps), though this can vary depending on the LED type. Exceeding this current can cause the LED to overheat or burn out.

4. Power Consumption:

   • 5mm red LEDs are low-power components, usually consuming only a few milliwatts. Their low power consumption makes them ideal for battery-powered devices, low-energy circuits, and embedded systems.

5. Lifespan:

   • Red LEDs have a long lifespan, typically ranging from 25,000 to 50,000 hours, which is much longer than traditional incandescent bulbs or other light sources.

6. Viewing Angle:

   • The typical viewing angle of a 5mm LED ranges from 20° to 60°. The viewing angle determines how widely the light spreads when viewed from different angles. A diffused LED will have a wider viewing angle, while a clear LED will emit a more focused beam.

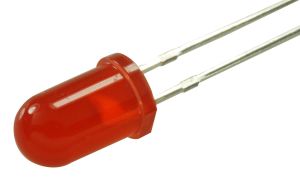

7. Housing:

   • The 5mm LED is typically housed in either a transparent or diffused plastic casing. A diffused LED will produce softer, more uniform light, while a transparent LED will emit a sharper, focused beam of light.

Typical Applications of 5mm Red LEDs:

1. Indicator Lights:

   • Red LEDs are commonly used as indicator lights to signal an error, warning, or alert state. For example, they may indicate that a device is in error mode, offline, or that the battery is low.

2. Status Indicators:

   • Red LEDs are often used in status indicators to show when a device is powered off, in standby mode, or experiencing a problem. This is common in devices like televisions, chargers, and appliances.

3. Traffic Lights:

   • Red LEDs are widely used in traffic signal systems, where red light means stop. They are used in traffic lights on roads, as well as in model traffic lights or simulated traffic light circuits.

4. Consumer Electronics:

   • Red LEDs are used in many consumer electronics to indicate the power status of a device, such as standby lights on a TV, charging indicators on a smartphone, or a low battery warning in a power bank.

5. Alarm Systems:

   • In alarm systems and safety applications, red LEDs are used to signal an alarm or indicate that an alarm is triggered. They are often used in security systems, fire alarms, or emergency signals.

6. Toys and Gadgets:

   • Many toys and gadgets use 5mm red LEDs to create visual effects, show a part of the device is functioning, or provide feedback. They are commonly used in novelty lights, light-up toys, and interactive gadgets.

7. Lighting Effects and Decorations:

   • Red LEDs are commonly used in decorative lighting for holidays, parties, or events. They are used in light strings, decorative signage, and special effect lighting.

8. Modeling and Simulation:

   • In modeling projects or simulations, such as model trains, control systems, or robotics, red LEDs are used to represent warning lights, active status, or alert signals.

How to Use a 5mm Red LED in a Circuit:

Basic LED Circuit:

To use the 5mm red LED in a simple circuit, you typically need a current-limiting resistor to prevent excessive current from flowing through the LED. Here's how to set it up:

1. Calculate the Resistor: If you're using a 5V power supply and the forward voltage of the LED is about 2.0V, you can calculate the current-limiting resistor using Ohm’s Law:

   R=Vsupply−VforwardIR = rac{V_{supply} - V_{forward}}{I}

   Where:

   • VsupplyV_{supply} is the supply voltage (e.g., 5V),
   • VforwardV_{forward} is the forward voltage of the LED (about 2.0V for red),
   • II is the current (typically 20mA or 0.02A).

   So, for a 5V supply, the calculation would be:

   R=5V−2.0V0.02A=3V0.02A=150 ΩR = rac{5V - 2.0V}{0.02A} = rac{3V}{0.02A} = 150 Omega

   Therefore, you would need a 150-ohm resistor in series with the LED.

2. Connect the LED:

   • The longer leg (anode) of the LED is connected to the positive side of the circuit (the power supply).
   • The shorter leg (cathode) is connected to the negative side (ground) of the circuit, passing through the current-limiting resistor.

Example Circuit with Arduino:

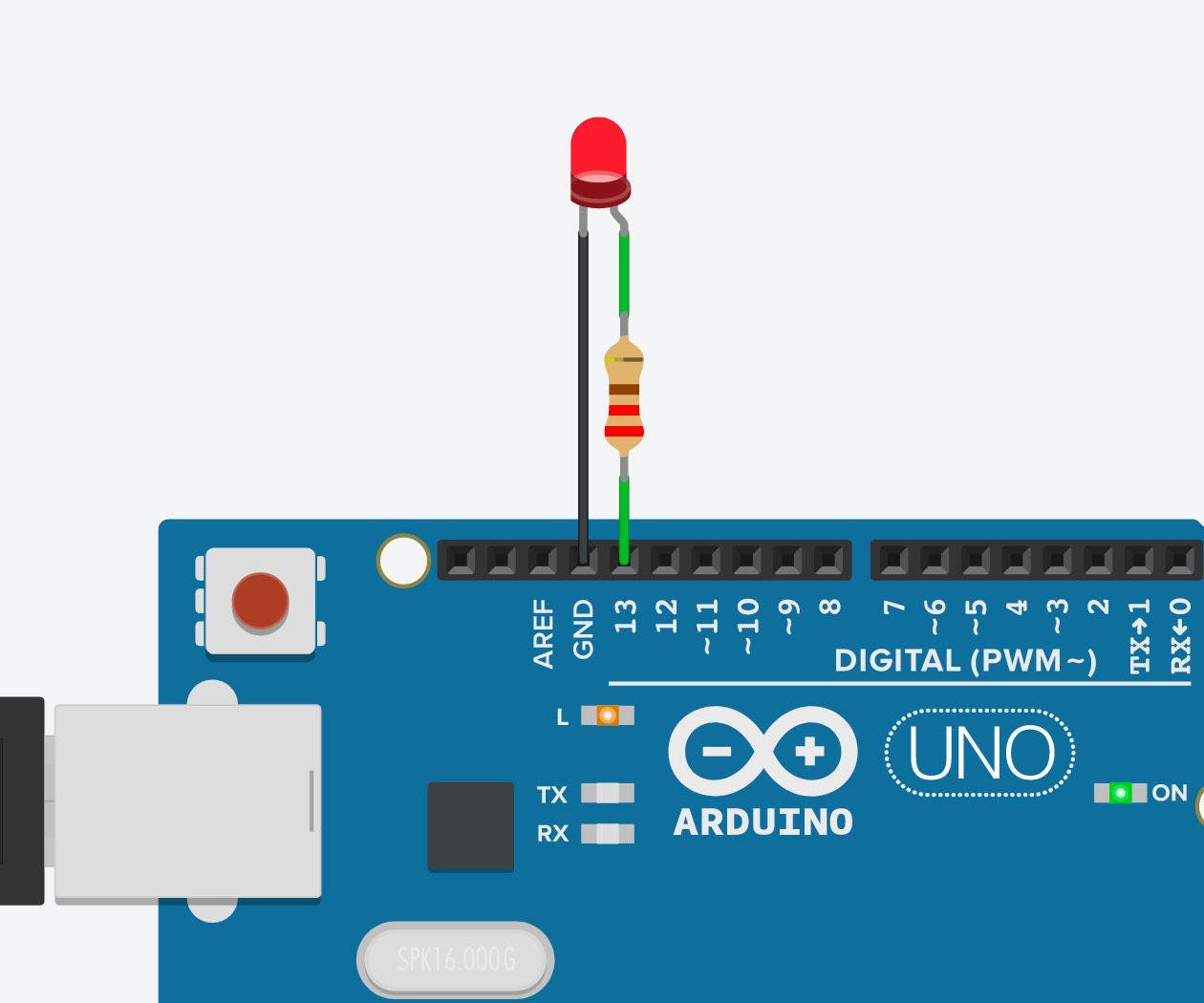

Here’s a simple example of how to use a 5mm red LED with an Arduino to blink the LED on and off:

int ledPin = 13; // Pin where the LED is connected

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000); // Wait for 1 second
  digitalWrite(ledPin, LOW); // Turn the LED off
  delay(1000); // Wait for 1 second
}

In this example, the red LED is connected to pin 13 on the Arduino, and it will blink on and off every second.

Conclusion:

The 5mm red LED is a reliable and energy-efficient component for a wide range of applications, including status indicators, warning lights, and decorative lighting. Its low power consumption, long lifespan, and visibility make it an ideal choice for hobby electronics, consumer electronics, traffic signals, and alarm systems. Whether you are building a simple circuit or a complex system, the 5mm red LED offers an easy and effective way to provide visual feedback or signals in your projects.
