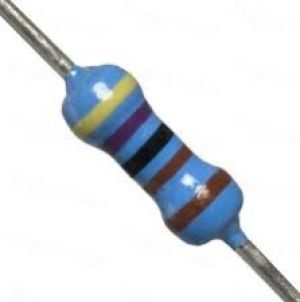

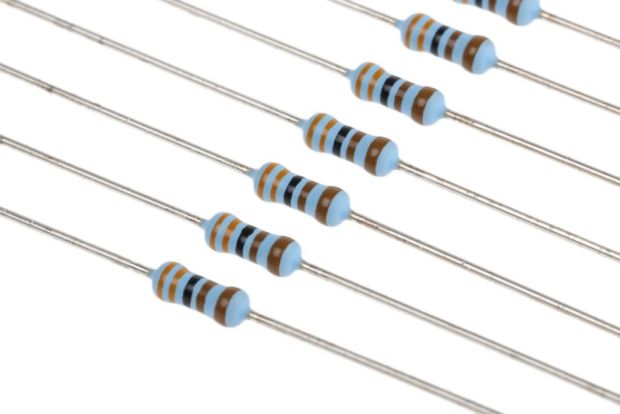

A 4.7k ohm (4.7kΩ) resistor is a commonly used resistor in electronics with a moderate resistance value. It’s used in a wide range of applications, from simple voltage dividers to more complex circuits like biasing transistors or creating filters. Here's a detailed overview of the 4.7kΩ resistor, its specifications, typical uses, and considerations:

Key Specifications of a 4.7kΩ Resistor:

1. Resistance Value (4.7kΩ):

   • A 4.7kΩ resistor has a resistance of 4,700 ohms. It is frequently used to control the current in circuits and set voltage levels.
   • The relationship between voltage (V), current (I), and resistance (R) is given by Ohm's Law: V=I×RV = I imes R. In the case of a 4.7kΩ resistor, the voltage drop across it will depend on the amount of current flowing through it.

2. Power Rating:

   • The power rating of a resistor indicates how much power it can dissipate without overheating. Typical power ratings for resistors are 1/4W, 1/2W, 1W, or higher.
   • A 4.7kΩ resistor is most commonly available with a 1/4W or 1/2W power rating for general-purpose applications.

3. Tolerance:

   • Tolerance indicates how much the actual resistance can vary from the nominal value. For instance, a ±1% tolerance means the actual resistance can be 1% higher or lower than 4.7kΩ.
   • 4.7kΩ resistors commonly come in ±1%, ±5%, or ±10% tolerances, with ±1% being used in precision circuits and ±5% in less critical applications.

4. Temperature Coefficient:

   • The temperature coefficient specifies how much the resistance will change with temperature. For general-purpose applications, a typical temperature coefficient is sufficient, but in high-precision applications, a resistor with a low temperature coefficient is preferred to avoid fluctuations due to temperature changes.

Common Applications for a 4.7kΩ Resistor:

1. Voltage Divider:

   • A 4.7kΩ resistor is commonly used in voltage divider circuits, where two resistors are used to reduce a higher input voltage to a lower output voltage. This is often used in applications like setting reference voltages for sensors or logic circuits.
   • For example, if you want to divide a 9V input to get a 5V output, a 4.7kΩ resistor can be used in conjunction with another resistor to form a voltage divider.

2. Pull-up or Pull-down Resistor:

   • 4.7kΩ resistors are commonly used as pull-up or pull-down resistors in digital logic circuits. These resistors ensure that the voltage at a logic input is well defined when the input is not actively driven.
   • A 4.7kΩ pull-up resistor can be used with switches or buttons to ensure that the input pin is pulled to a known logic level (HIGH) when the button is open and LOW when pressed.

3. Biasing Transistors:

   • In transistor circuits, a 4.7kΩ resistor can be used for biasing. It helps set the base current of a BJT (Bipolar Junction Transistor) or determines the voltage threshold in FET (Field-Effect Transistor) circuits.
   • Biasing is essential for the transistor to operate in the correct region (active or saturation) for amplification or switching.

4. Current Limiting:

   • A 4.7kΩ resistor can limit the current in a circuit, though typically lower-value resistors are used for high-current applications. For example, it might limit current in LED circuits or in the current-limiting aspect of a sensor interface.
   • In some digital circuits, 4.7kΩ resistors are used in series with LEDs or other components to ensure proper current flow.

5. Filtering and Signal Conditioning:

   • A 4.7kΩ resistor can be part of an RC (Resistor-Capacitor) filter circuit. Filters are commonly used to either pass or block certain frequencies of signals. A 4.7kΩ resistor combined with capacitors can create low-pass, high-pass, or band-pass filters.
   • This is useful in audio circuits, signal processing, or noise reduction.

6. Setting Gain in Operational Amplifier Circuits:

   • In operational amplifier (op-amp) circuits, a 4.7kΩ resistor may be used in the feedback loop to set the gain. The ratio of the feedback resistor to the input resistor determines the amplification factor of the op-amp.

7. Temperature Sensing:

   • A 4.7kΩ resistor might be used in conjunction with a thermistor in temperature sensing circuits. The resistance of the thermistor changes with temperature, and the 4.7kΩ resistor can form a voltage divider that converts temperature variations into a corresponding voltage output.

8. Audio Applications:

   • In audio circuits, a 4.7kΩ resistor can be used for impedance matching or setting appropriate levels for audio signals. It may also be used in tone control circuits or in adjusting signal levels.

Example Circuit:

Voltage Divider Example:

Let’s say you want to create a 5V output from a 9V input using a 4.7kΩ resistor in a voltage divider circuit.

Using the voltage divider formula:

Vout=Vin×R2R1+R2V_{out} = V_{in} imes rac{R_2}{R_1 + R_2}

Where:

• Vin=9VV_{in} = 9V
• Vout=5VV_{out} = 5V
• R1=4.7kΩR_1 = 4.7kΩ
• R2R_2 is the resistor to calculate.

Solving for R2R_2:

5V=9V×R24.7kΩ+R25V = 9V imes rac{R_2}{4.7kΩ + R_2} 59=R24.7kΩ+R2rac{5}{9} = rac{R_2}{4.7kΩ + R_2} 0.555=R24.7kΩ+R20.555 = rac{R_2}{4.7kΩ + R_2} R2≈3.9kΩR_2 pprox 3.9kΩ

Thus, to get 5V output from a 9V source, you would pair the 4.7kΩ resistor with a 3.9kΩ resistor.

Advantages of Using a 4.7kΩ Resistor:

1. Versatility:

   • The 4.7kΩ resistor is versatile and widely used in a variety of circuits, including voltage dividers, biasing, signal conditioning, and current limiting.

2. Common Availability:

   • It is available from almost every electronics supplier and is one of the standard values in the E12 series of resistor values.

3. Cost-Effective:

   • The 4.7kΩ resistor is inexpensive, making it a good choice for both hobbyists and professionals in a wide range of applications.

4. Precise Value:

   • The 4.7kΩ resistor is often used in circuits where the specific resistance value is important for maintaining performance, such as in voltage dividers or feedback networks in amplifiers.

Considerations When Using a 4.7kΩ Resistor:

1. Power Dissipation:

   • Ensure that the power rating of the resistor is appropriate for your circuit. A 1/4W resistor is usually sufficient, but in high-power applications, a 1/2W or higher-rated resistor may be necessary.

2. Tolerance:

   • If precision is important for your circuit, ensure that you select a 4.7kΩ resistor with an appropriate tolerance (e.g., ±1% for precision applications).

3. Current Rating:

   • In high-current circuits, the 4.7kΩ resistor may limit current too much, so it is important to check the expected current in the circuit before choosing this resistance.

Conclusion:

The 4.7kΩ resistor is a commonly used component in electronic circuits due to its moderate resistance value. It’s useful in applications like voltage dividers, transistor biasing, pull-up or pull-down resistors, current limiting, and signal filtering. It is widely available, cost-effective, and versatile, making it a key component in many DIY, educational, and professional electronics projects. Always consider the power rating, tolerance, and temperature coefficient when selecting a resistor for a specific application to ensure optimal performance and reliability in your circuits.
