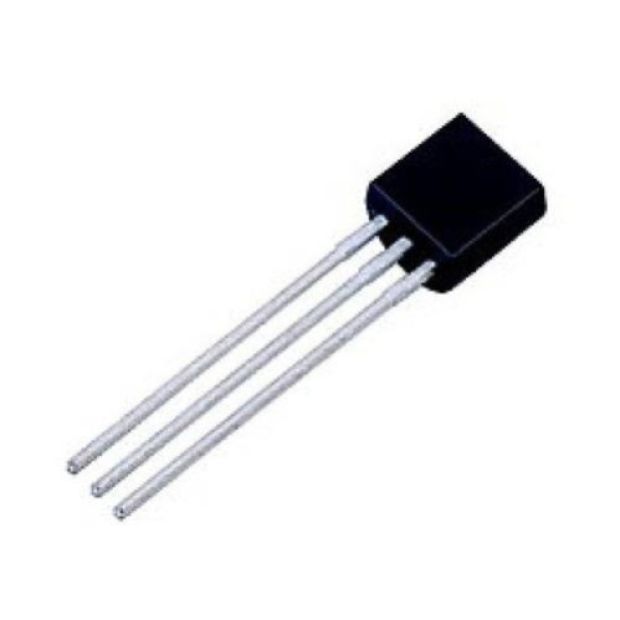

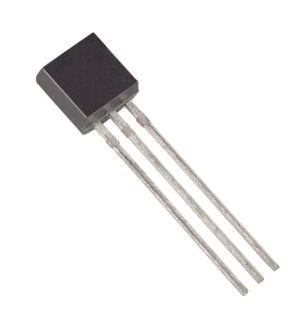

An NPN transistor is a type of bipolar junction transistor (BJT) that is widely used in electronic circuits for amplification, switching, and signal modulation. In an NPN transistor, the flow of current is controlled by the application of a small voltage to its base, which allows a much larger current to flow between the collector and emitter terminals.

Key Characteristics of an NPN Transistor:

1. Structure:

   • The NPN transistor has three layers:
     • N-type material (negative) as the emitter (on the left).
     • P-type material (positive) as the base (in the middle).
     • N-type material (negative) as the collector (on the right).

2. Symbols:

   • The symbol for an NPN transistor has an arrow pointing outward from the base (indicating the direction of current flow), as the current moves from the emitter (negative) to the base (positive).



3. Functionality:

   • Emitter (E): The terminal through which electrons flow out. In an NPN transistor, it is negatively doped.
   • Base (B): The terminal that controls the current flow between the collector and emitter. A small current at the base allows a much larger current to flow between the collector and emitter.
   • Collector (C): The terminal where current flows from the emitter through the transistor. It is positively doped in an NPN transistor.

4. Operation:

   • When a small current is applied to the base, it allows a much larger current to flow from the collector to the emitter. This property makes the NPN transistor useful for amplification and switching purposes.
   • The transistor turns on when the base-emitter voltage (V_BE) is higher than a threshold (typically around 0.7V for silicon transistors), and turns off when the base-emitter voltage is below this threshold.

5. Current Flow:

   • In an NPN transistor, the current flows from collector to emitter (C → E) when the transistor is on. This is known as current amplification because a small current at the base controls a larger current flowing through the collector-emitter path.

6. Biasing:

   • Forward Bias: When the base-emitter junction is forward biased (base is positive relative to the emitter), the transistor conducts.
   • Reverse Bias: When the base-emitter junction is reverse biased (base is negative relative to the emitter), the transistor does not conduct.

Example of NPN Transistor Circuit:

1. Switching Circuit:

   • NPN transistors are often used as electronic switches in circuits. When a small voltage is applied to the base, the transistor turns on and allows a larger current to flow from the collector to the emitter. In a switching application, it can control the flow of current to a load, such as an LED or motor.

   Simple Switch Example:

   • Base Resistor (R_B) controls the current into the base.
   • Load Resistor (R_L) can be an LED or other components.
   • The NPN transistor turns on when a current flows from the base to the emitter, completing the circuit and allowing current to flow from collector to emitter.

   Basic Circuit:

   • Connect the emitter to ground.
   • Connect the collector to the negative side of the load (e.g., LED) with the positive side connected to a voltage source.
   • Apply a small current to the base through a resistor to activate the transistor and complete the circuit.

   Base Current (IBI_B) controls the collector current (ICI_C) according to the transistor’s current gain (βeta):

   IC=β×IBI_C = eta imes I_B

   Where β (beta) is the transistor's current gain (typically ranging from 20 to 1000 for most transistors).

2. Amplifier Circuit:

   • NPN transistors are also used in amplifier circuits. In this configuration, the small input signal at the base is amplified to produce a larger output signal between the collector and emitter. This is commonly used in audio amplifiers or signal processing circuits.

   Common Emitter Amplifier:

   • Input Signal is applied to the base.
   • The collector is connected to a resistor (or load) and the output is taken from the collector.
   • The signal is amplified and inverted (a phase shift of 180 degrees).

Applications of NPN Transistors:

1. Switching:

   • Used in digital circuits as switches for controlling high-power devices with a low-power control signal (e.g., turning on/off motors, LEDs, relays, etc.).

2. Amplification:

   • Used in analog circuits to amplify weak signals in audio amplifiers, radio transmitters, and television receivers.

3. Oscillators:

   • NPN transistors are often used in oscillator circuits for generating sine or square waves for clocks, signals, etc.

4. Digital Logic Circuits:

   • Used in logic gates (e.g., AND, OR, NOT gates) and in microprocessors to control binary signals (on/off).

5. Current Regulation:

   • NPN transistors can regulate current in power supply circuits and help control voltage levels.

6. Motor Drivers:

   • In motor control circuits, NPN transistors can be used to drive motors by switching the high current needed by motors on and off.

Example of a Simple NPN Switching Circuit:

Components Needed:

• NPN Transistor (e.g., 2N2222)
• Base Resistor (typically 1kΩ to limit current)
• Load (LED, motor, etc.)
• Power Supply (e.g., 9V battery)
• Switch

Circuit Description:

• The emitter of the NPN transistor is connected to ground.
• The collector is connected to one side of the load (e.g., LED), and the other side of the load is connected to the positive terminal of the power supply.
• A base resistor is connected between the base of the transistor and the switch (which goes to the power supply). When the switch is closed, a small base current is applied, turning on the transistor and allowing current to flow from the collector to the emitter, thus powering the load.

Summary:

An NPN transistor is an essential component in many electronic applications, including switching, amplification, and signal modulation. Its ability to control a large current with a small current at the base makes it useful for a wide variety of circuits, from simple switches to complex amplification stages.
