2200uf capacitor

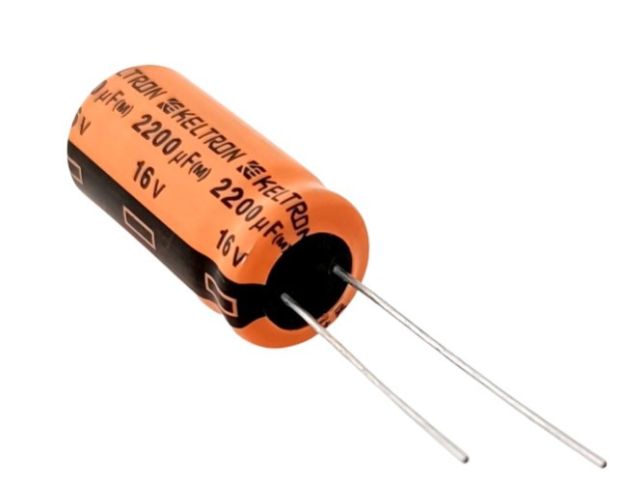

Applications of 2200uF/25V Electrolytic Capacitor: Noise Filteration. As a coupling capacitor. Charge Storage. Multiple DIY projects and circuit construction. : Images shown is only for representation.
₹ 14 ₹29
29
Made In : | India |
Add FAQ
A 2200µF capacitor refers to a capacitor with a capacitance value of 2200 microfarads (µF). Capacitors are electronic components that store and release electrical energy, and they come in various sizes and types depending on the specific application.
Key Specifications of a 2200µF Capacitor:
-
Capacitance (2200µF):
- This value represents the amount of electric charge the capacitor can store per unit voltage. 2200µF means that the capacitor can store 2200 microfarads of charge, which is quite large compared to smaller capacitors like 10µF or 100µF. This makes 2200µF capacitors suitable for applications requiring substantial energy storage.
-
Voltage Rating:
- Capacitors are rated by their maximum operating voltage, which specifies the highest voltage they can safely handle. For example, a typical 2200µF capacitor might be rated for 25V, 35V, or 50V, depending on its intended use.
- The voltage rating must always be higher than the voltage the capacitor will experience in the circuit. Using a capacitor with a voltage rating too low can cause the capacitor to fail or even explode.
-
Type:
- The most common type of a 2200µF capacitor is an electrolytic capacitor, which uses an electrolyte to achieve a high capacitance value in a compact form factor. Electrolytic capacitors are polarized, meaning they have a positive and negative lead, and must be connected with correct polarity in the circuit.
- There are also solid or aluminum electrolytic versions, which may have slightly different performance characteristics.
-
Tolerance:
- Tolerance refers to the permissible deviation from the nominal capacitance value. A typical 2200µF capacitor might have a tolerance of ±20%, meaning the actual capacitance could range from 1760µF to 2640µF.
-
ESR (Equivalent Series Resistance):
- This is an important parameter that affects the performance of the capacitor, especially in high-frequency applications. A low ESR is desired for smooth operation in power supply filtering and other energy storage applications.
Common Applications of a 2200µF Capacitor:
-
Power Supply Filtering:
- The 2200µF capacitor is commonly used in power supplies, particularly for smoothing or filtering the output from a rectifier. After AC is converted to DC in a power supply circuit, a 2200µF capacitor is used to smooth out the fluctuations and produce a stable DC voltage.
-
Decoupling and Bypassing:
- It is used in decoupling applications to stabilize voltage levels in electronic circuits. It helps to remove noise and transient spikes that can affect sensitive components.
-
Energy Storage in Power Circuits:
- In circuits that need to store energy for a short time, such as camera flashes, motor drives, or audio amplifiers, the 2200µF capacitor provides the necessary charge storage.
-
Signal Filtering:
- The 2200µF capacitor is also found in filter circuits, such as those used in audio systems, where it helps smooth signals and reduce noise.
-
Tuning Circuits:
- It can also be used in tuning circuits in radio frequency applications, such as in tuning circuits for radio transmitters or receivers.
-
Timing Applications:
- Capacitors like the 2200µF are used in RC (Resistor-Capacitor) circuits to create time delays in certain electronic devices.
Key Considerations:
-
Polarity:
- As most 2200µF capacitors are electrolytic and polarized, it’s essential to connect them correctly to the circuit. The negative lead is often marked with a stripe or minus sign on the capacitor body.
-
Size:
- The physical size of the capacitor will vary depending on its voltage rating and manufacturer, but generally, higher capacitance values like 2200µF will result in a larger package compared to smaller capacitance values.
-
Temperature Sensitivity:
- Capacitors can degrade over time, especially if exposed to high temperatures. Capacitors with high ESR or poor voltage rating can cause heating issues, especially in high-load circuits.
Example of a 2200µF Capacitor in a Circuit:
- Power Supply Filter: In a power supply, after the rectifier converts AC to DC, the 2200µF capacitor smooths out ripples in the DC output.
- Audio Amplifier: In audio systems, a 2200µF capacitor can smooth out power supply fluctuations to maintain clean audio output.
Conclusion:
The 2200µF capacitor is a relatively large electrolytic capacitor with a wide range of uses in power supply filtering, energy storage, signal conditioning, and other electronic circuits. When using this type of capacitor, it's important to pay attention to the voltage rating, polarization, and tolerance to ensure it functions correctly in your application.
