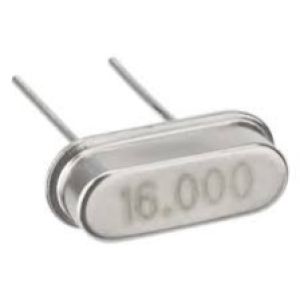

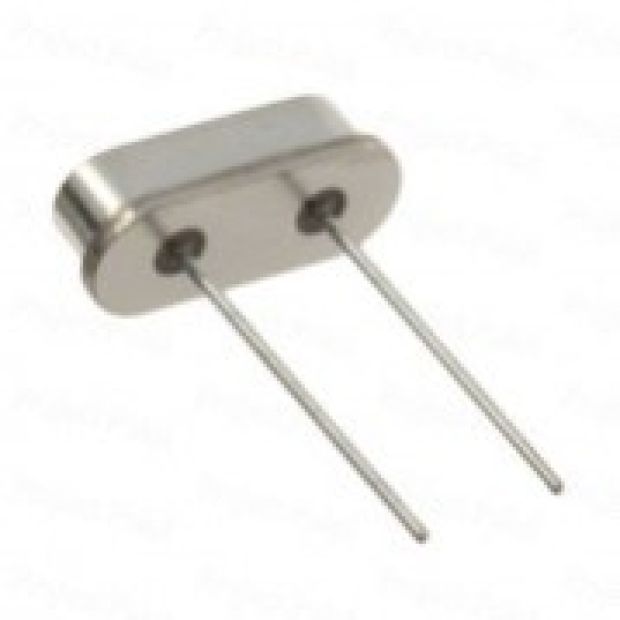

A 16 MHz crystal refers to a quartz crystal oscillator that vibrates at a frequency of 16 megahertz (MHz), which is 16 million cycles per second. Like other crystals, it is used in electronic circuits to provide a stable and precise clock signal for timing and frequency generation purposes.

Characteristics of a 16 MHz Crystal:

• Frequency: The crystal oscillates at 16,000,000 cycles per second (16 MHz), and it provides this stable signal to a circuit.
• Size & Form Factor: Crystals come in various physical packages, such as through-hole or surface-mount designs, and the 16 MHz version is widely available in both.
• Precision & Stability: The crystal offers very accurate timing, making it suitable for applications that require precise frequency control.
• Low Power Consumption: Crystals are efficient in terms of power consumption, which is important for portable devices.

Common Applications of a 16 MHz Crystal:

1. Microcontrollers and Microprocessors:

   • 16 MHz is a common clock frequency used in various microcontroller families (e.g., Arduino boards like the Uno, and many AVR microcontrollers).
   • It helps generate the clock signals for the microcontroller, ensuring proper timing and synchronization in the system.

2. Clock Generation for Digital Circuits:

   • Used in digital systems that require precise timing, such as counters, timers, and sequential logic circuits.

3. Communication Systems:

   • Used for frequency synthesis or to provide a stable reference clock for communication modules, such as UARTs, SPI, and other protocols.

4. Audio and Video Processing:

   • In some applications, like audio clocks or video systems, precise timing is needed to synchronize various parts of the system.

5. Embedded Systems:

   • In many embedded devices, the 16 MHz crystal serves as the clock generator for processors and controllers, ensuring the proper functioning of real-time systems and other time-dependent operations.

Advantages of 16 MHz Crystals:

• Affordable & Easy to Find: The 16 MHz crystal is widely available and cost-effective for many different types of electronics projects.
• Good Balance of Speed and Power: For many applications, 16 MHz provides a good balance between speed (processing power) and low power consumption.
• Stable & Reliable: Crystals are known for their reliability and stable performance over time, which is critical in timing circuits.

If you're using a 16 MHz crystal in your project or system, it would typically be for the purpose of generating a stable clock signal for a microcontroller or digital system. Let me know if you need specific details or help with a project
