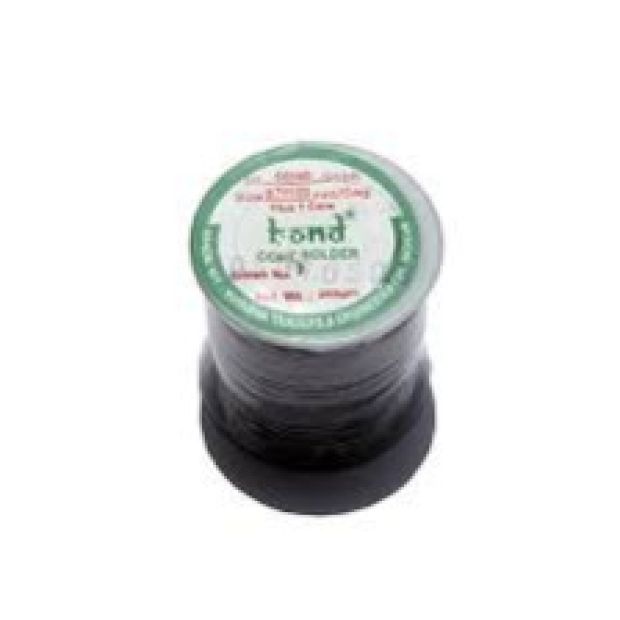

Soldering wire is a crucial component in the process of soldering, which is used to join electrical components and create permanent connections in circuits. Soldering wire typically consists of a metal alloy that melts at a relatively low temperature and solidifies when cooled, allowing the electrical components to be securely connected. It is commonly used in electronics, electricity repair, PCB (Printed Circuit Board) assembly, and DIY projects.

Key Features of Soldering Wire:

1. Material Composition:

   • The most common soldering wire is made of tin (Sn) and lead (Pb), but lead-free solder is also widely used for safety and environmental reasons. Common lead-free compositions include tin-copper (SnCu) or tin-silver-copper (SAC) alloys.
   • Lead-based solder (such as 60/40 SnPb or 63/37 SnPb) is favored for its lower melting point and easier flow, making it ideal for general soldering.
   • Lead-free solder has a higher melting point, so it requires slightly higher temperatures to melt but is used in electronics and devices where lead is not allowed due to health concerns.

2. Wire Size:

   • Soldering wire comes in different diameters, typically ranging from 0.3mm to 1mm or more. The size of the wire determines the amount of solder applied and is chosen based on the type of work.
     • Smaller diameters (e.g., 0.5mm to 0.7mm) are used for precise work, such as surface-mount technology (SMT) components or fine PCB connections.
     • Larger diameters (e.g., 1mm or more) are used for general wiring or heavier gauge connections.

3. Flux Core:

   • Soldering wire typically has flux inside the wire, known as flux core solder. Flux helps to clean the surface of the components and the soldering iron tip, ensuring a smooth and strong connection.
   • Rosin flux is the most commonly used type, as it is non-corrosive and leaves minimal residue.
   • Some soldering wires are also available without flux core, especially when using for specialized applications, but most consumer-grade solder wire is flux-cored.

4. Melting Point:

   • The melting point of solder depends on its composition. For lead-based solder, the melting point is usually between 180°C and 190°C.
   • Lead-free solder tends to have a higher melting point, around 215°C to 230°C. This is important to note because you may need to adjust your soldering iron temperature accordingly.

5. Packaging:

   • Soldering wire is typically sold in spools or reels, but can also come in pre-cut lengths. Spools of wire generally range from 25g to 500g, depending on the amount required for the work.

6. Application:

   • The solder is applied to the joint between two components (e.g., a wire and a PCB or a wire and a connector). When heated with the soldering iron, the solder melts and flows over the joint, cooling and solidifying to create a permanent electrical connection.

How to Choose Soldering Wire:

• Lead-free vs Lead-based: Choose lead-free solder if you are working on devices that will be used in environments where lead exposure is a concern (e.g., consumer electronics, food-related devices).
• Size of Wire: Select an appropriate wire size depending on the precision and type of work:
  • Use smaller wire (around 0.3mm to 0.7mm) for fine work such as PCB assembly or SMD soldering.
  • Use larger wire (around 1mm or more) for through-hole components or heavy-duty connections.
• Flux Type: Ensure the solder you choose has adequate flux for your work. Rosin-core solder is the most common and works for most general-purpose soldering.
• Temperature: Ensure your soldering iron can reach the appropriate temperature for the solder type you're using (e.g., 350°C for lead-free solder).

Common Solder Wire Types:

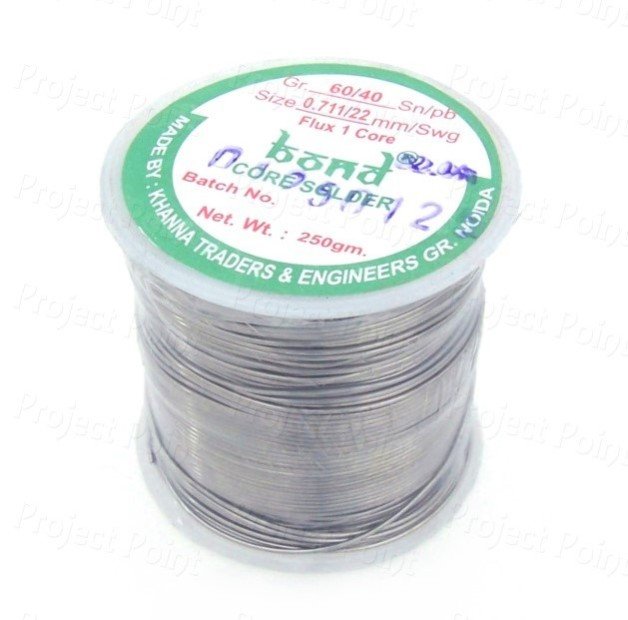

1. 60/40 SnPb (Tin/Lead):

   • 60% Tin / 40% Lead: This is a standard solder composition known for its low melting point, making it easy to work with. It is widely used in general electronics and hobbyist projects.

2. 63/37 SnPb (Tin/Lead):

   • 63% Tin / 37% Lead: Known for being eutectic, which means it melts at a specific temperature (183°C) without a pasty phase. This solder is excellent for reliable connections in electronics.

3. SnCu (Tin/Copper):

   • Tin/Copper solder is one of the most common lead-free solder types. It has a higher melting point than lead-based solders but is generally easier to handle than other lead-free alloys.

4. SAC (Tin-Silver-Copper):

   • SnAgCu (Tin-Silver-Copper) solder is another type of lead-free solder used in electronics. It provides higher strength and is used in more demanding applications, such as automotive and aerospace electronics.

5. Rosin-Core Solder:

   • This solder has a flux core inside the wire, which helps clean the metal surfaces during the soldering process. The flux prevents oxidation and allows the solder to flow more easily, resulting in a smooth, clean joint.

6. Lead-Free Solder:

   • As a standard, lead-free solder is now preferred due to health and environmental concerns. Lead-free solder generally has a higher melting point, but advances in technology have made it easier to use.

Tips for Using Soldering Wire:

1. Use the Right Soldering Iron Temperature:

   • Too high a temperature can damage components or PCBs, while too low a temperature will make it difficult to achieve a proper solder joint. Typically, the iron tip temperature should be around 350°C for lead-free solder and 320°C for lead-based solder.

2. Avoid Cold Solder Joints:

   • A cold solder joint occurs when the solder does not melt properly or doesn’t flow over the joint. This can cause unreliable connections. Ensure the soldering iron is in contact with both the component and the PCB for a few seconds to allow proper heating before applying the solder.

3. Clean the Soldering Iron Tip:

   • Always keep your soldering iron tip clean. Use a wet sponge or brass wool to wipe off excess solder and oxidation before each joint.

4. Use Enough Solder:

   • Make sure to use enough solder to ensure a strong and reliable electrical connection. However, avoid using too much solder, as it can cause bridging (unintended connections between nearby pads or pins).

5. Proper Ventilation:

   • Solder fumes, especially from lead-based solder, can be harmful. Always ensure adequate ventilation or use a fume extractor when soldering.

Applications:

• PCB Assembly: Creating reliable electrical connections on printed circuit boards (PCBs).
• Wiring Projects: Connecting wires, components, and terminals.
• Repairs: Soldering broken connections in electronics or household items.
• DIY Electronics Projects: Building custom circuits, devices, and prototypes.
• SMD (Surface-Mount Device) Work: Using fine soldering wire for working with small surface-mount components.

Conclusion:

Soldering wire is a fundamental component in the world of electronics, enabling permanent electrical connections between components. By choosing the right type of solder wire, flux, and ensuring proper soldering techniques, you can achieve strong, reliable connections for all your electronic projects. Whether you're building or repairing electronics, using the appropriate soldering wire and tools will ensure the best results.
