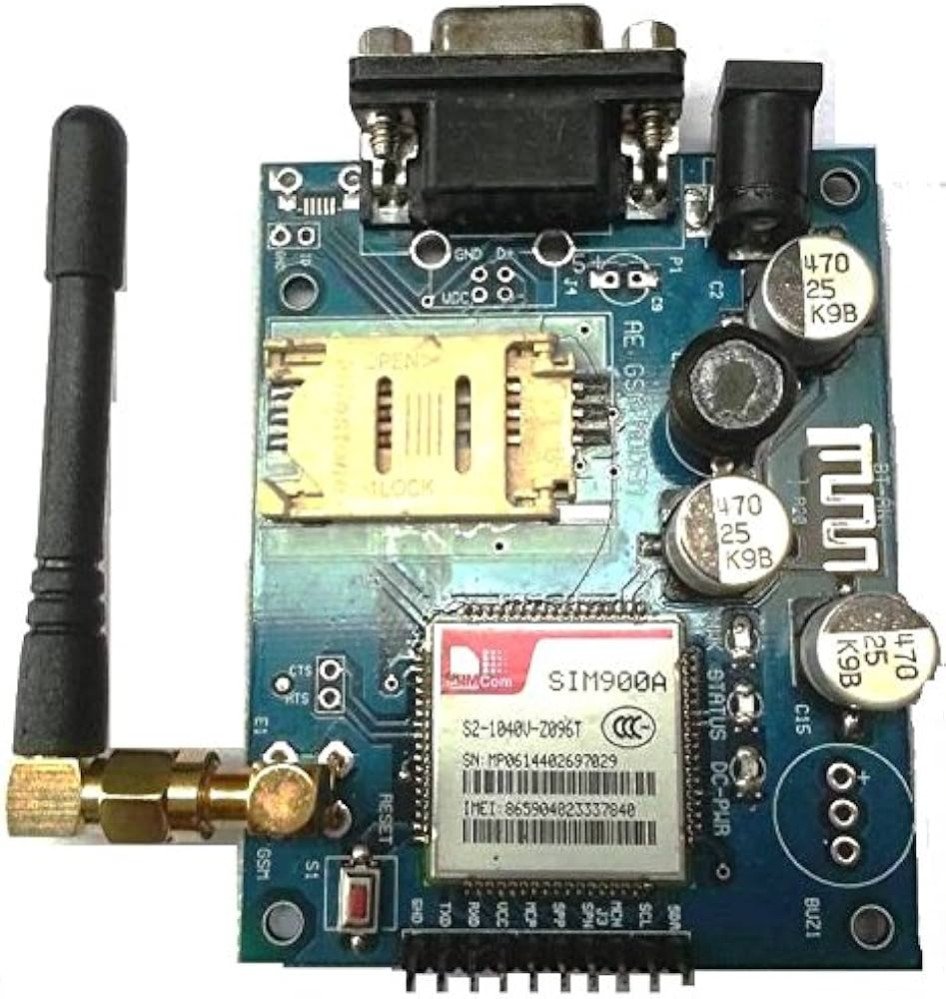

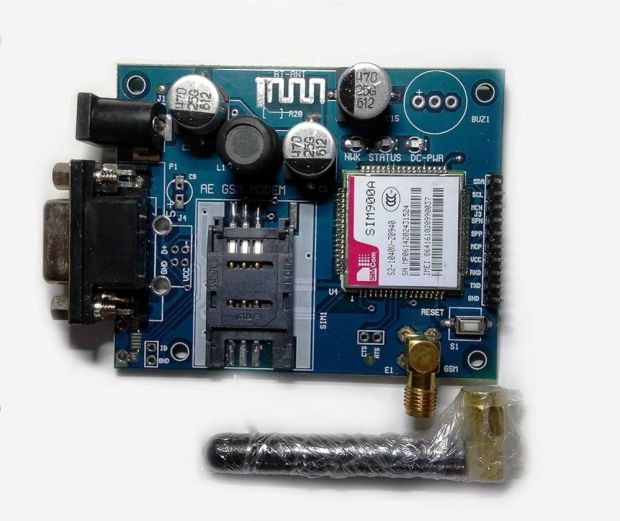

The SIM900A GSM Module is a widely used communication module designed to allow devices to communicate over cellular networks. It operates on the GSM (Global System for Mobile Communications) network and enables functionalities like sending SMS (Short Message Service), making and receiving voice calls, and accessing mobile data through a GPRS (General Packet Radio Service) connection. This module is often used in IoT (Internet of Things) projects, remote monitoring systems, and mobile-based control systems.

Key Features:

1. GSM Communication:

   • The SIM900A module supports GSM frequencies, including 900 MHz and 1800 MHz, making it suitable for many cellular networks worldwide. It's commonly used for SMS and voice communication.

2. SMS and Voice Call:

   • The module allows devices to send and receive SMS messages and make/receive voice calls, enabling the creation of mobile-based communication systems.
   • It also supports USSD (Unstructured Supplementary Service Data), which allows for interactive communication with a mobile network (e.g., checking balance).

3. GPRS (General Packet Radio Service):

   • The SIM900A module supports GPRS connectivity, enabling devices to access the internet or send/receive data over the cellular network.
   • GPRS can be used for data logging, remote control, or data transmission in IoT applications.

4. Low Power Consumption:

   • The module operates with low power consumption, especially when in idle mode, making it suitable for battery-powered applications.
   • It supports sleep modes to save power when not actively communicating.

5. Interface:

   • UART (Universal Asynchronous Receiver-Transmitter): The SIM900A module communicates with external devices (like microcontrollers or development boards) using the serial interface (UART). This makes it compatible with popular development platforms like Arduino, Raspberry Pi, and others.
   • SIM Card Slot: The module uses a standard SIM card, which is required to connect to the GSM network and send/receive messages or calls.

6. AT Commands:

   • The SIM900A module is controlled using AT commands (Attention Commands), which are a set of instructions used to interface with the module and perform operations like sending messages, making calls, or establishing internet connectivity.
   • The module responds to these commands through the serial communication interface.

7. Easy to Use with Arduino and Other Platforms:

   • The SIM900A module is easy to interface with microcontrollers like Arduino, ESP32, Raspberry Pi, and others. Various libraries and sample code are available to facilitate integration and communication.

8. External Antenna Support:

   • The module has an external antenna port (usually an SMA or U.FL connector), which can improve the signal reception, especially in areas with weak cellular coverage.

9. Operating Voltage:

   • The SIM900A module typically operates at a voltage of 3.4V to 4.4V (nominal 3.7V), so it's important to provide a regulated power supply to the module to avoid damage and ensure stable operation.

Applications:

1. SMS-based Communication:

   • The SIM900A module can be used in remote control systems, alarm systems, automatic notification systems, and location tracking systems that rely on SMS communication.

2. IoT Applications:

   • In IoT projects, the SIM900A module can send data to the cloud or receive commands via SMS or GPRS. For example, it can be used in smart metering, remote monitoring, and control of devices like sensors and actuators.

3. Home Automation:

   • The module can be used for controlling home appliances or systems remotely via SMS commands, allowing users to turn devices on/off, adjust settings, or receive status updates via text.

4. Voice and Data Communication:

   • It can also serve as the communication interface for voice-based projects like two-way radio systems or interactive voice response (IVR) systems.

5. GPS Tracking Systems:

   • Combined with a GPS module, the SIM900A module can be used in vehicle tracking systems, sending location data via SMS or GPRS.

6. Security Systems:

   • The module is used in security systems like intruder alarms or fire alarms. It can send SMS alerts to users or control a system remotely by receiving commands.

7. Emergency Communication:

   • It is useful in emergency communication systems, where SMS or voice calls can be triggered automatically in case of an emergency.

How It Works:

1. Hardware Setup:

   • The SIM900A module requires a SIM card with an active cellular plan (which supports SMS and data) to function.
   • It connects to a microcontroller (like an Arduino or Raspberry Pi) through the UART interface (TX/RX pins).
   • The module communicates with the microcontroller using AT commands, which are sent as serial data to the module.

2. Powering the Module:

   • The SIM900A operates with a voltage of 3.4V to 4.4V, so a stable 3.7V or 5V power supply is typically used with a voltage regulator to ensure proper operation.
   • It is important to ensure sufficient current supply, as the module may require more current during active communication (like during calls or data transmission).

3. Sending SMS:

   • You can use AT commands like AT+CMGF=1 to set the message format to SMS, followed by AT+CMGS="+phone_number" to send an SMS to a specific phone number.
   • Example AT command for sending an SMS:

     AT+CMGS="+1234567890"
     > "Hello, this is a test message."


     After entering the message, press Ctrl+Z to send the SMS.

4. Making a Call:

   • The module can be used to dial a number using AT commands. For example:

     ATD+1234567890;


     This command will dial the phone number +1234567890 and establish a voice call.

5. GPRS for Data Communication:

   • You can use GPRS to send or receive data over the internet. Example AT commands for GPRS include:
     • AT+CGATT=1 (to attach to the GPRS service)
     • AT+CIPSTART="TCP","","" (to start a TCP/IP connection)
     • AT+CIPSEND (to send data)

Pinout of the SIM900A GSM Module:

The SIM900A module typically has the following pins:

1. VCC: Power supply (typically 3.7V - 4.2V)
2. GND: Ground
3. TX: Serial data output (transmit pin, connected to RX pin of the microcontroller)
4. RX: Serial data input (receive pin, connected to TX pin of the microcontroller)
5. RST: Reset pin (used to reset the module)
6. DTR: Data Terminal Ready (used for controlling sleep mode)
7. RI: Ring Indicator (used to signal incoming calls)
8. SPEAKER: Speaker output (for voice calls)
9. MICROPHONE: Microphone input (for voice calls)
10. AUX: Auxiliary I/O (optional for some features)
11. SIM Card Slot: To insert the SIM card

Example Code for Arduino:

To interface the SIM900A GSM module with Arduino, here is an example that sends an SMS:

#include

// Create software serial port to communicate with the SIM900
SoftwareSerial sim900(7, 8); // RX, TX

void setup() {
  // Start serial communication at 9600 baud rate for Arduino
  Serial.begin(9600);

  // Start software serial communication at 9600 baud rate for SIM900
  sim900.begin(9600);

  Serial.println("Initializing SIM900 GSM Module...");

  // Wait for the SIM900 module to initialize
  delay(2000);

  // Test if the module responds to AT commands
  sim900.println("AT");
  delay(1000);

  // Send an SMS
  sim900.println("AT+CMGF=1");    // Set SMS format to text mode
  delay(1000);
  sim900.println("AT+CMGS="+1234567890"");  // Enter recipient phone number
  delay(1000);
  sim900.println("Hello, this is a test message.");  // SMS message content
  delay(1000);
  sim900.write(26);  // ASCII code for Ctrl+Z to send the message
}

void loop() {
  // Nothing to do in loop
}

Advantages:

1. Low Cost: The SIM900A is an affordable solution for adding cellular communication to projects.
2. Wide Availability: It’s widely available and compatible with most microcontrollers like Arduino, ESP32, Raspberry Pi, etc.
3. Versatility: The module supports SMS, voice calls, and GPRS for a variety of communication needs.
4. Easy to Use: The AT command set makes it easy to control the module using simple commands.

Disadvantages:

1. Limited Coverage: The SIM900A is designed for 900 MHz and 1800 MHz bands, which may not work well in all regions. It is more suitable for 2G networks, which are being phased out in some countries.
2. Slow Data Speed: GPRS data speeds are relatively slow compared to modern cellular technologies like 3G, 4G, or 5G.
3. Power Consumption: While it has low power consumption in idle mode, during active transmission (like calling or data transfer), the power consumption increases significantly.

Conclusion:

The SIM900A GSM Module is a versatile and cost-effective solution for integrating cellular communication into various projects. Whether you need to send SMS, make voice calls, or transmit data over GPRS, the SIM900A can be an excellent choice for IoT, remote monitoring, and mobile communication applications. With easy-to-use AT commands, it is well-supported in the maker community and is compatible with platforms like Arduino and Raspberry Pi.
