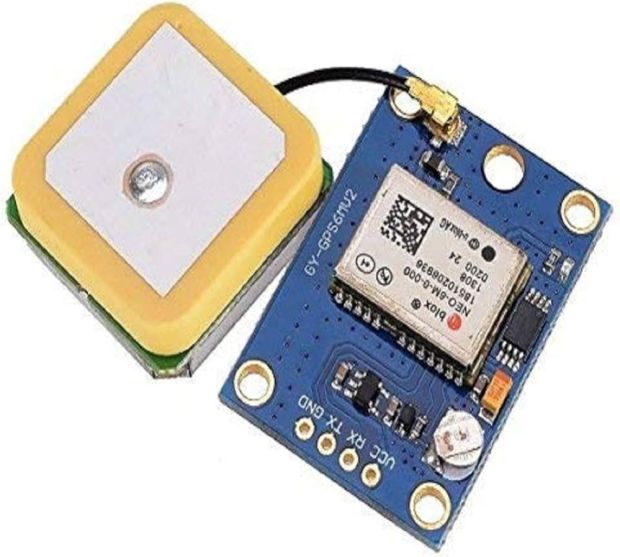

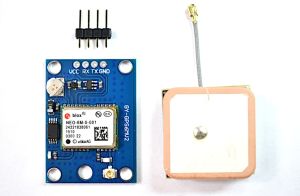

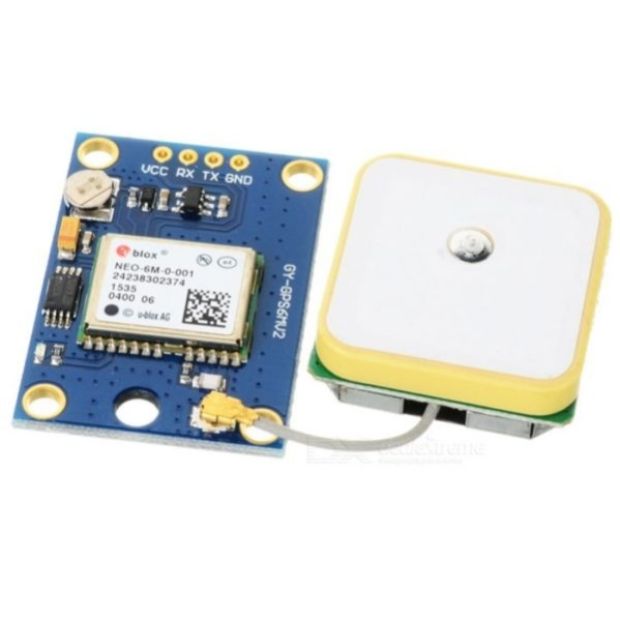

The NEO-6M GPS module is a popular and widely used GPS receiver module, known for its reliability and ease of integration in various applications. It is based on the NEO-6M chipset from u-blox, a leading manufacturer of GPS modules.

NEO-6M GPS Module Overview

1. Key Features:

• High Sensitivity:

  • Chipset: u-blox NEO-6M, known for high sensitivity and accurate positioning.
  • Reception: Supports multiple GNSS systems including GPS, GLONASS, and sometimes BeiDou.

• Output:

  • Data Format: Provides location data in NMEA (National Marine Electronics Association) format, including latitude, longitude, altitude, speed, and time.
  • Communication: Typically communicates via UART (serial interface), with a default baud rate of 9600 bps.

• Power Supply:

  • Operating Voltage: Usually 3.3V or 5V DC.
  • Power Consumption: Low power consumption, making it suitable for battery-operated applications.

• Antenna:

  • Built-in Antenna: Some modules come with an integrated antenna, while others have a connector for an external antenna.

• Accuracy:

  • Position Accuracy: Can achieve meter-level accuracy in good conditions.
  • Update Rate: Usually supports update rates up to 10Hz (10 updates per second).

2. Pin Configuration:

The NEO-6M GPS module typically comes with a set of pins for power and communication. The pin configuration can vary slightly depending on the specific module version, but generally includes:

1. VCC:

   • Connects to the power supply (3.3V or 5V depending on the module).

2. GND:

   • Connects to the ground of the power supply.

3. TX (Transmit):

   • Serial output pin that transmits GPS data to a microcontroller or other device.

4. RX (Receive):

   • Serial input pin that receives commands from a microcontroller or other device.

5. RST (Reset):

   • Resets the module. Some modules have this pin for manual reset purposes.

6. ANT (Antenna):

   • Connector for an external antenna if not integrated. Some modules include an internal antenna.

7. Backup:

   • (Optional) Backup battery input pin that can be used to maintain satellite data when the module is powered off.

3. Working Principle:

• Signal Reception:

  • The NEO-6M module receives signals from multiple satellites in the GPS constellation. It uses these signals to calculate its position, velocity, and time.

• Data Processing:

  • The module processes the received signals and computes the geographic coordinates (latitude, longitude), altitude, and other parameters.

• Data Transmission:

  • It transmits the computed data in NMEA format through the TX pin. The NMEA sentences include information such as the Global Positioning System Fix Data (GGA), Global Navigation Satellite System (GNS), and other relevant data.

• Command Handling:

  • Receives configuration commands through the RX pin, allowing adjustments to parameters such as update rate and data format.

4. Applications:

• Navigation Systems:

  • Used in automotive, marine, and pedestrian navigation systems for accurate location tracking.

• Robotics:

  • Helps in autonomous navigation and positioning of robots.

• Tracking Systems:

  • Used in vehicle tracking, personal tracking devices, and other location-based services.

• Drones:

  • Provides GPS location data for autonomous flight and navigation in UAVs (Unmanned Aerial Vehicles).

5. Advantages:

• Ease of Use:

  • Simple to integrate with microcontrollers using UART communication.

• High Sensitivity:

  • Reliable performance in various environmental conditions.

• Low Power Consumption:

  • Suitable for battery-operated devices and low-power applications.

• Versatility:

  • Supports various GNSS systems, increasing reliability and accuracy.

6. Limitations:

• Signal Dependency:

  • Requires a clear view of the sky to receive satellite signals effectively. Performance can be affected indoors or in urban canyons.

• Accuracy Variation:

  • Accuracy can vary based on environmental conditions and the number of satellites visible.

Example Use Case:

GPS Tracking System:

• In a GPS tracking system, the NEO-6M module can be used to provide real-time location data of a vehicle. The GPS data is transmitted via the TX pin to a microcontroller or computer system that processes and displays the vehicle's location on a map.

Summary:

The NEO-6M GPS module is a reliable and versatile GPS receiver that provides accurate location data for various applications. With its high sensitivity, ease of integration, and low power consumption, it is well-suited for navigation, tracking, and positioning tasks in both consumer and industrial applications.
