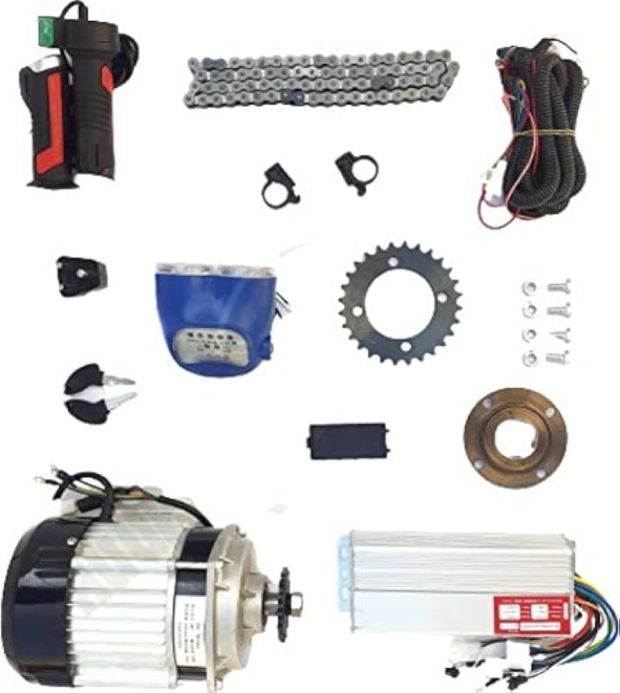

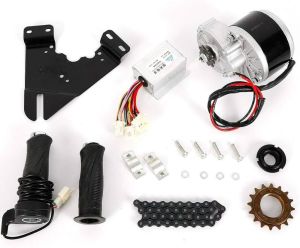

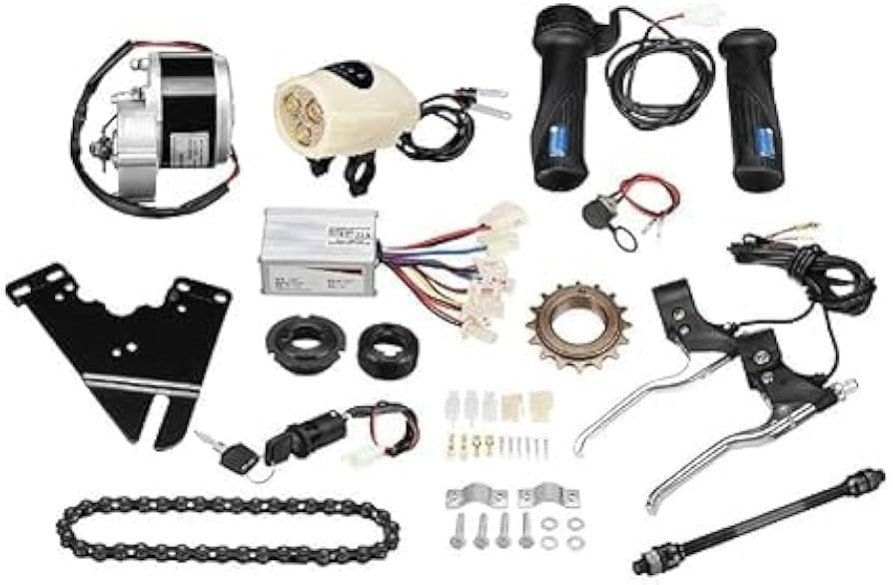

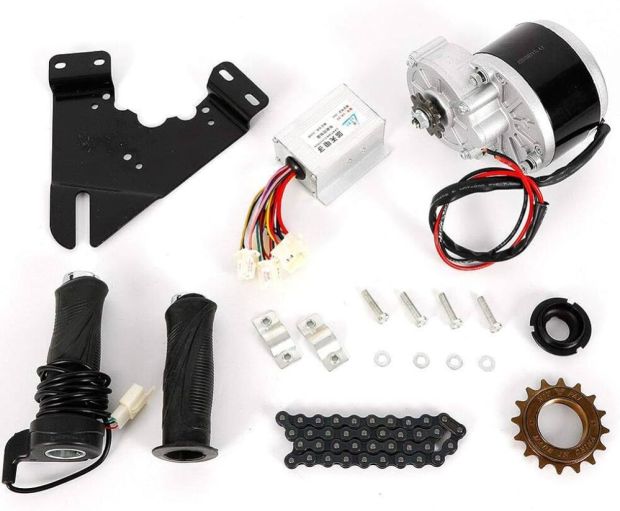

An electric bike (e-bike) integrates various components to enhance cycling with electric assistance. Here's a detailed description of the key components:

1. Motor:

• Types:
  • Hub Motor: Located in the wheel hub (front or rear). Common for its simplicity and ease of installation.
  • Mid-Drive Motor: Positioned near the bike's bottom bracket, driving the crank. Offers better weight distribution and efficiency, particularly on hills.
• Power Rating: Typically ranges from 250W to 750W. Higher wattages provide more power and speed but may affect battery life and legal restrictions.

2. Battery:

• Type: Usually lithium-ion (Li-ion) due to its high energy density and longevity.
• Capacity: Measured in watt-hours (Wh). Common capacities range from 300Wh to 600Wh.
• Location: Can be mounted on the frame, rear rack, or integrated into the down tube.

3. Controller:

• Function: Regulates power flow from the battery to the motor based on input from the rider (throttle or pedal assist).
• Features: May include settings for different levels of pedal assist and power output, as well as diagnostics.

4. Display/Control Unit:

• Function: Provides information about speed, battery level, distance traveled, and assistance levels.
• Location: Typically mounted on the handlebars for easy access while riding.
• Controls: Allows the rider to adjust assistance levels and switch between different riding modes.

5. Throttle:

• Type: Can be a twist-grip or thumb lever.
• Function: Provides direct power control to the motor, allowing the rider to control speed without pedaling (common in some e-bikes but not universally included).

6. Pedal Assist System (PAS):

• Function: Automatically provides motor assistance based on the rider's pedaling. The system uses sensors (e.g., cadence or torque sensors) to determine how much power to provide.
• Modes: Often includes multiple levels of assistance, such as low, medium, and high.

7. Sensors:

• Cadence Sensor: Measures the rate at which the rider pedals.
• Torque Sensor: Measures the amount of force applied to the pedals.
• Function: These sensors help the controller adjust motor output for a smooth riding experience.

8. Brakes:

• Types: Mechanical disc, hydraulic disc, or rim brakes.
• Considerations: E-bikes often use disc brakes for better stopping power due to the increased speed and weight.

9. Gearing:

• Types: Traditional derailleur systems or internally geared hubs.
• Function: Allows the rider to adjust the bike's gearing for various terrain, which works in conjunction with the motor for optimal performance.

10. Frame:

• Material: Commonly aluminum, steel, or carbon fiber.
• Design: Designed to accommodate the additional weight of the motor and battery while providing durability and comfort.

11. Lights and Reflectors:

• Function: Enhance visibility and safety, especially in low-light conditions.
• Integration: Some e-bikes have built-in lights powered by the bike’s battery.

12. Charging System:

• Charger: Typically included with the e-bike. Designed to recharge the battery safely and efficiently.
• Charging Time: Varies based on battery capacity and charger specifications but generally takes a few hours.

13. Suspension:

• Types: Front fork suspension, rear suspension, or a combination (full suspension).
• Function: Enhances comfort and control over rough terrain by absorbing shocks and vibrations.

14. Wiring and Connectors:

• Function: Connects all electronic components, including the battery, motor, controller, and sensors.
• Design: Must be well-organized and protected from the elements to ensure reliable operation.

Each of these components plays a crucial role in the overall performance and functionality of an e-bike, contributing to a smoother, more efficient, and enjoyable riding experience.
