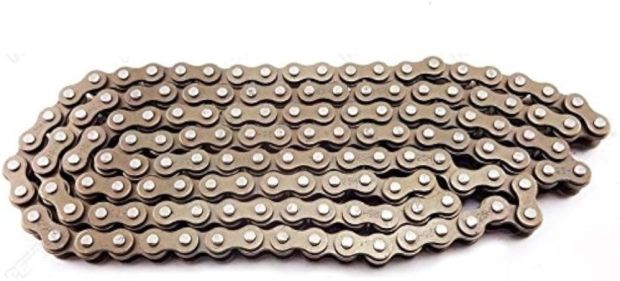

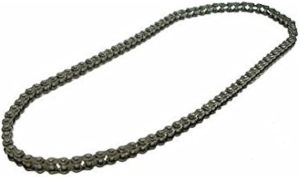

The #25 Chain for 6.35mm Pitch Sprocket is a small chain commonly used in electric bicycles (e-bikes) and scooters, especially in chain-driven drive systems. It is known for its compact size, durability, and efficient power transmission, making it a popular choice for lightweight electric vehicles.

Key Features and Specifications:

1. Chain Size:
   • #25 Chain: The #25 chain refers to a chain with a pitch of 6.35mm (0.25 inches). The pitch is the distance between the centers of two consecutive pins in the chain. This small pitch size makes it suitable for applications where space is limited, such as small e-bikes or scooters.
2. Compatibility:
   • Sprockets: The #25 chain is designed to work with sprockets that have a 6.35mm pitch, meaning the teeth on the sprocket are spaced to match the distance between the chain’s links. It ensures proper engagement with the sprocket, allowing for smooth and efficient power transmission.
3. Strength and Durability:
   • Materials: The #25 chain is typically made from steel or alloy steel, which provides strength, wear resistance, and longevity. It is designed to withstand the stresses of motorized applications like e-bikes and scooters.
4. Design:
   • Single-Speed: This chain is generally used in single-speed drivetrains. For e-bikes and scooters, this means that the motor’s power is directly transferred to the wheels without needing a multi-gear system.
   • Lightweight: The small size of the #25 chain makes it a lightweight option compared to other chain types like #40 or #41, which is ideal for smaller vehicles such as e-bikes and scooters where minimizing weight is a concern.

Applications:

1. E-bikes:

   • The #25 chain is commonly used in electric bicycles that are equipped with a chain drive system. It is suitable for e-bikes that don’t require multiple gears, as it allows for direct, simple, and efficient power transfer from the motor to the wheels.

2. Electric Scooters:

   • Similar to e-bikes, electric scooters often use a chain-driven system. The #25 chain is perfect for smaller scooters that operate at lower speeds and have compact motors.

3. Go-Karts and Mini Bikes:

   • Although it is more commonly used in e-bikes and scooters, the #25 chain is also found in go-karts, mini bikes, and other small machinery that use a chain drive to transfer power to wheels or other moving parts.

4. Small Machinery and Tools:

   • It can be used in small engines or tools that require a compact and reliable chain system for transmitting motion, especially when space is limited.

Gear Ratios and Performance:

The performance of a chain-driven system is influenced by the sprocket sizes and the gear ratio. The #25 chain typically works with sprockets of varying sizes (measured by the number of teeth), allowing you to customize the performance of the e-bike or scooter.

• Higher Sprocket Teeth Count: Using a larger sprocket (more teeth) on the wheel side results in lower speed but more torque, which can be useful for climbing hills or providing more pulling power.
• Smaller Sprocket Teeth Count: A smaller sprocket (fewer teeth) on the wheel side will increase speed but reduce torque, which might be more suitable for flat terrain or higher-speed riding.

Advantages of Using #25 Chain:

1. Compact Size:

   • The #25 chain is ideal for applications where space is limited, such as compact e-bikes, scooters, or small electric vehicles. Its small pitch (6.35mm) allows it to fit into tight spaces while still delivering reliable performance.

2. Lightweight:

   • Because it’s designed for smaller vehicles, the #25 chain is lighter than larger chain types like #40 or #41. This helps keep the overall weight of the e-bike or scooter down, improving efficiency and range.

3. Durability and Strength:

   • Made from steel or alloy steel, the #25 chain can withstand the stresses of electric motors, ensuring a long lifespan when properly maintained. It also handles the torque generated by the motor well, ensuring smooth performance.

4. Easy Maintenance:

   • Chains like the #25 are typically easy to maintain, with simple lubrication needed to keep the system running smoothly. Regular maintenance can help extend the life of the chain and other drivetrain components.

5. Smooth Power Transfer:

   • The #25 chain ensures efficient power transfer from the motor to the wheels, which is crucial in maintaining smooth performance and conserving energy in electric vehicles.

Installation and Maintenance:

1. Installation:

   • Installing the #25 chain involves first ensuring that the sprockets on both the motor and wheel sides are designed for a 6.35mm pitch chain.
   • The chain is usually threaded onto the sprockets and then secured in place, ensuring the correct tension.
   • Make sure the chain is properly aligned with the sprockets to avoid wear or slippage.

2. Maintenance:

   • Lubrication: Apply a lubricant specifically designed for chains to reduce wear and friction. This should be done regularly, especially after riding in wet or dirty conditions.
   • Cleaning: Regularly clean the chain using a chain cleaner to remove dirt, grime, and debris that can cause unnecessary wear.
   • Chain Tension: Ensure the chain remains properly tensioned. A chain that is too loose can slip or skip on the sprockets, while a chain that is too tight can lead to excessive wear.

Safety Considerations:

1. Chain Wear:

   • Over time, chains will wear, especially in high-stress applications. If the #25 chain shows significant signs of wear (elongation, rust, or fraying), it should be replaced to prevent further damage to the drivetrain.

2. Proper Alignment:

   • Ensure the sprockets are properly aligned with the chain to avoid premature wear or malfunctioning of the system. Misalignment can cause the chain to derail or damage the teeth on the sprockets.

3. Chain Breakage:

   • While rare, the chain may break if it is excessively worn or improperly maintained. Always keep a spare chain on hand if you’re using your e-bike or scooter frequently.

Conclusion:

The #25 Chain for 6.35mm Pitch Sprocket is an excellent choice for small e-bikes, electric scooters, and other compact machinery that use a chain-driven system. Its small pitch and lightweight design make it ideal for lightweight electric vehicles where space and weight are critical factors. By ensuring proper maintenance and choosing the right sprockets, the #25 chain can deliver efficient and reliable performance over time.
