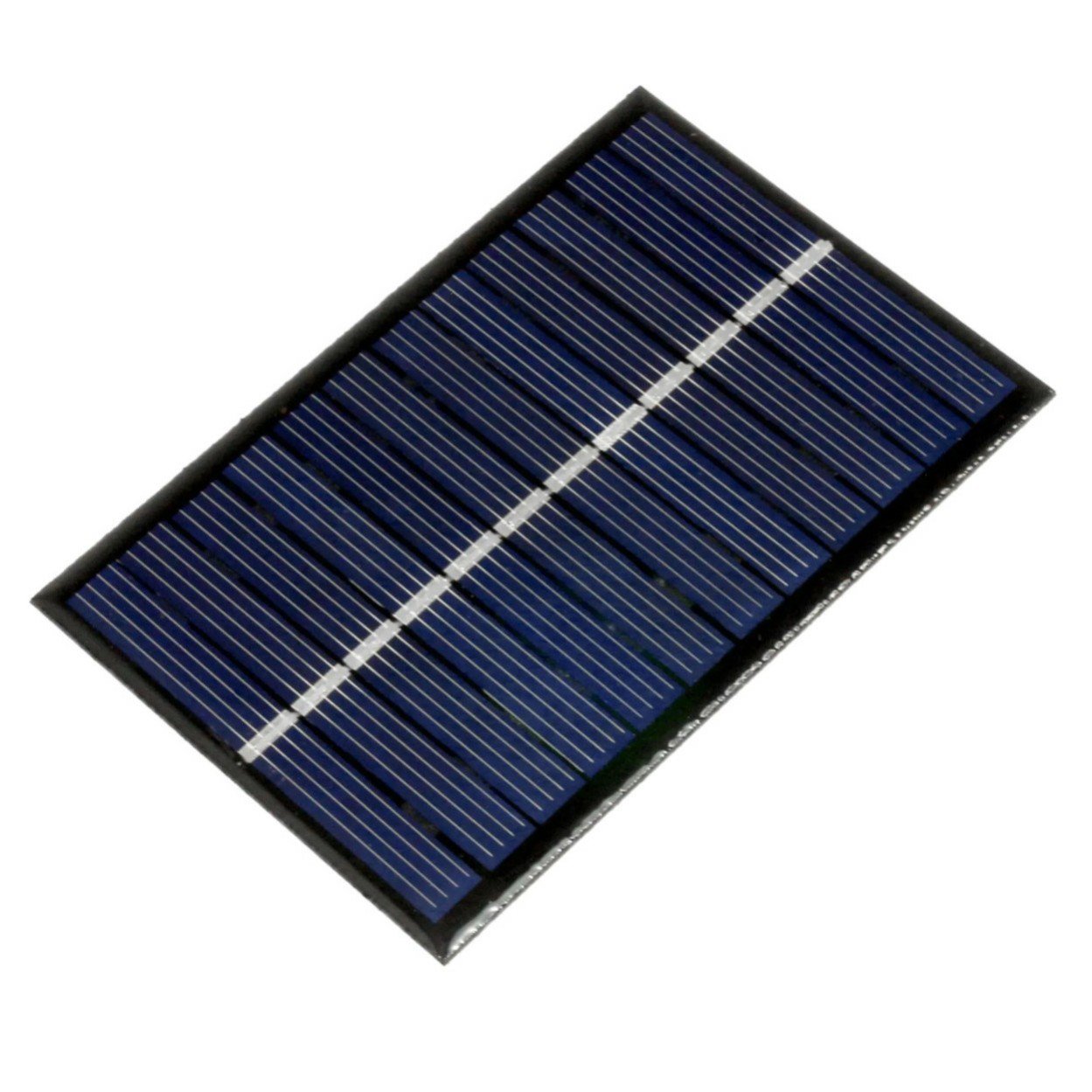

A 3V 150mA solar panel is a compact and efficient way to harness solar energy for powering small electronic devices or charging batteries. Here’s a breakdown of its key features, applications, and considerations:

Key Features:

1. Voltage: 3V (nominal output voltage).
2. Current: 150mA (nominal output current).
3. Power Output: Power output can be calculated as $P=V\times I$. For a 3V, 150mA solar panel, the power output is 0.45 watts (3V × 0.15A).

Applications:

1. Small Electronics: Ideal for powering small devices such as sensors, low-power microcontrollers, or small LED lights.
2. Battery Charging: Suitable for charging small batteries (e.g., Li-ion or NiMH cells) when used with a proper charge controller.
3. Educational Projects: Great for educational projects or demonstrations on renewable energy.
4. Outdoor Devices: Can be used in outdoor settings for applications like garden lights or small weather stations.

Connecting and Using the Solar Panel:

1. Wiring:

   • Positive Lead: Connect to the positive terminal of your load or battery.
   • Negative Lead: Connect to the negative terminal of your load or battery.

2. Voltage Regulation:

   • Load Matching: Ensure that your device or battery charging circuit can operate at 3V or use a voltage regulator if your application requires a different voltage.
   • Charge Controller: If charging batteries, use an appropriate charge controller to protect the batteries and ensure proper charging.

3. Mounting:

   • Placement: Place the solar panel in a location with good sunlight exposure. Avoid shading from objects or dirt on the panel.

Example Uses:

1. Powering a Small LED:

   • Connect the LED (with a suitable resistor if needed) directly to the solar panel. Ensure the LED's voltage and current requirements are compatible with the solar panel’s output.

2. Charging a Rechargeable Battery:

   • Use a battery management system or a charge controller to manage the charging process. For instance, a TP4056 module can be used for charging Li-ion batteries.

Considerations:

1. Sunlight Conditions:

   • The output of the solar panel can vary based on sunlight intensity, angle, and weather conditions. Ensure that the panel receives adequate sunlight for optimal performance.

2. Temperature Sensitivity:

   • Solar panel efficiency can be affected by temperature. High temperatures can reduce the efficiency of the panel.

3. Connection:

   • Ensure proper connections to avoid short circuits or incorrect wiring, which could damage the panel or your device.

4. Panel Orientation:

   • For maximum efficiency, orient the solar panel towards the sun and adjust its angle throughout the day if possible.
