The Solar Charge Controller, Intelligent Lithium Battery Regulator for Solar Panel with LCD Display and USB Port (12V/24V, 30A) is an advanced solar charge controller designed to regulate the charging of lithium-ion or lead-acid batteries in off-grid solar power systems. This controller is specifically optimized for use with 12V and 24V solar panels and features intelligent charging management, an LCD display, and additional functionalities like a USB charging port. Let's break down the key features, working principles, and applications of this type of controller.

Key Features:

1. 12V/24V System Compatibility:

   • Supports both 12V and 24V battery systems, making it versatile for different solar setups. It automatically detects the system voltage and adjusts accordingly.

2. 30A Charging Current:

   • The 30A current rating allows the controller to handle high-power solar panels and ensure efficient charging of large batteries. It is ideal for solar systems with higher power demands.

3. Intelligent Charging:

   • The controller includes MPPT (Maximum Power Point Tracking) or PWM (Pulse Width Modulation) charging technology, which ensures that the battery is charged optimally, improving the charging efficiency and extending the lifespan of the batteries.
   • MPPT controllers are more efficient, especially when the solar panel voltage is higher than the battery voltage.

4. LCD Display:

   • The LCD display provides real-time information about:
     • Solar panel voltage and current
     • Battery voltage and charging status
     • Charging modes (e.g., bulk, absorption, float)
     • Error codes for troubleshooting
   • This allows users to monitor the system's health and performance without needing to connect to a computer.

5. USB Port:

   • The USB port is a convenient feature for charging devices such as phones, tablets, or other USB-powered electronics directly from the solar power system.
   • It is typically a 5V USB output, allowing users to charge devices even when the system is not actively powering large loads.

6. Overcharge, Overdischarge, Overcurrent, and Short-circuit Protection:

   • The controller offers multiple protection features, such as:
     • Overcharge protection: Stops charging once the battery is fully charged.
     • Overdischarge protection: Prevents battery damage due to excessive discharge.
     • Overcurrent protection: Protects both the battery and controller from excessive current.
     • Short-circuit protection: Prevents system damage from short-circuit events.

7. Multiple Battery Type Support:

   • Many controllers, including those designed for lithium batteries, allow you to select the type of battery being used (e.g., Lithium-ion, Lead-acid, Gel, etc.). This optimizes charging parameters for the chosen battery type.

8. Temperature Compensation:

   • Some models offer temperature sensors to adjust the charging voltage based on the ambient temperature, further optimizing the charge and extending the life of the battery.

9. Heat Dissipation Design:

   • Typically, these controllers are equipped with heat sinks or built-in ventilation fans to manage the heat generated during high-current charging, ensuring efficient performance under load.

How It Works:

1. Solar Panel Charging:

   • The solar panel generates DC electricity, which is regulated by the charge controller before reaching the battery.

2. Charge Regulation:

   • The controller manages the charging process by adjusting the voltage and current based on the battery type and charge status. For example, in MPPT mode, the controller adjusts the input from the solar panel to extract the maximum power output, converting it to the optimal charging current for the battery.

3. Battery Protection:

   • Once the battery is fully charged, the controller switches to a float mode, ensuring that the battery is not overcharged.
   • If the battery voltage drops below a certain level (over-discharge), the controller will stop drawing power from the battery, preventing damage.

4. Powering Devices via USB:

   • The USB port on the charge controller outputs 5V (via a step-down regulator), allowing users to charge small electronics like smartphones, tablets, or even small LED lights directly from the solar system.

Typical Applications:

1. Off-Grid Solar Systems:

   • This controller is ideal for off-grid solar applications where you need to charge batteries using solar power and then use that power for lighting, appliances, or other devices.

2. Camping or RV Solar Systems:

   • Perfect for campers and RV owners who want a portable power solution, as the system can charge their battery and also provide USB charging for small devices like smartphones or GPS units.

3. Remote Monitoring Stations:

   • Used in remote locations where solar energy is needed to power equipment like communication systems, sensors, or small appliances.

4. Solar-Powered Homes and Cabins:

   • For small homes or cabins that use solar panels to charge batteries, this charge controller ensures proper battery maintenance and protection.

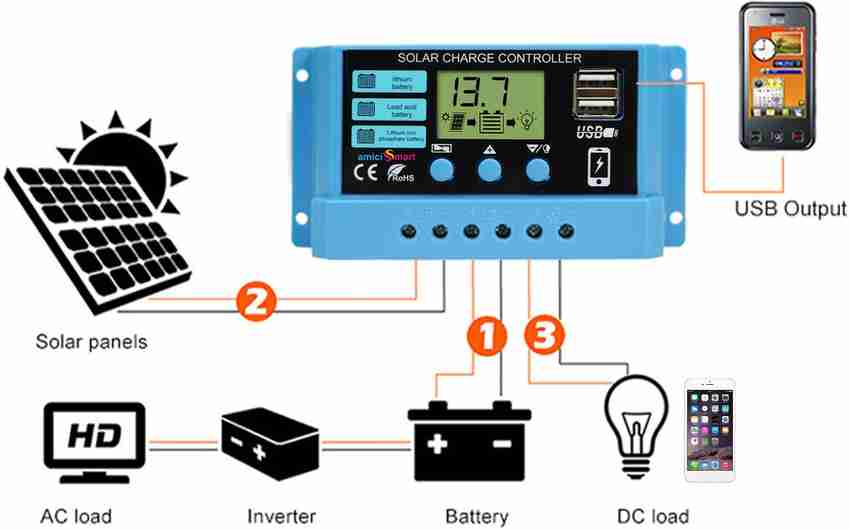

Example Wiring Diagram:

For a typical setup, the wiring connections are as follows:

• Solar Panel → Solar Input Terminals (on the charge controller)
• Battery → Battery Terminals (on the charge controller)
• USB Device → USB Port (on the charge controller)
• Load (e.g., lights, appliances) → Load Terminals (if the controller has load terminals for powering appliances directly)

Advantages:

• Efficient Solar Harvesting: MPPT or PWM charging ensures maximum energy harvesting from your solar panels.
• Real-time Monitoring: The LCD display gives you continuous feedback on system performance, helping you optimize your energy use.
• USB Port: Convenient for charging personal electronics directly from the solar power system.
• Safety Protections: Ensures safe and efficient operation, preventing damage to batteries, the controller, and connected devices.

Considerations:

• Temperature Sensitivity: Always ensure the controller operates within the recommended temperature range. High temperatures can reduce efficiency.
• Battery Size: Ensure the batteries you are using are appropriately sized for the charge controller's output. A 30A controller is best suited for larger systems or those with higher power demands.

In summary, the Solar Charge Controller with LCD Display and USB Port (12V/24V, 30A) is a feature-packed and efficient solution for managing solar power in off-grid or hybrid solar systems. It provides the necessary protections, monitoring features, and user convenience for anyone looking to integrate solar energy with reliable battery storage and USB-powered devices.
