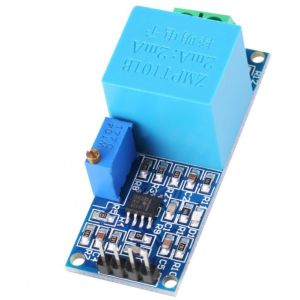

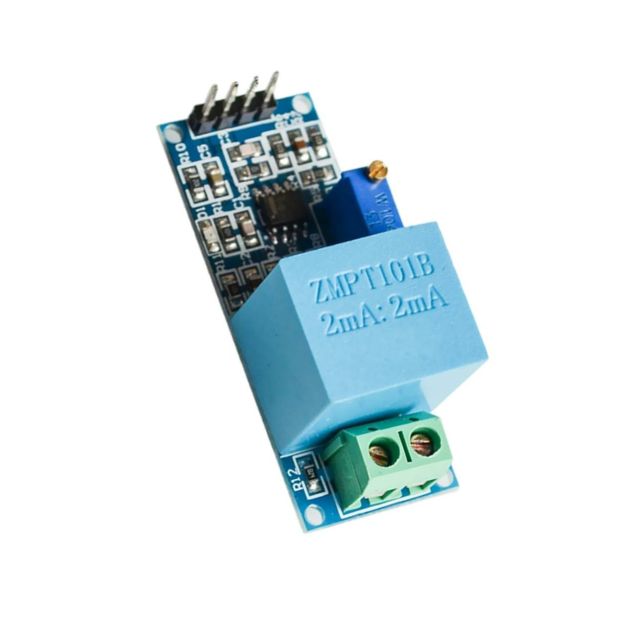

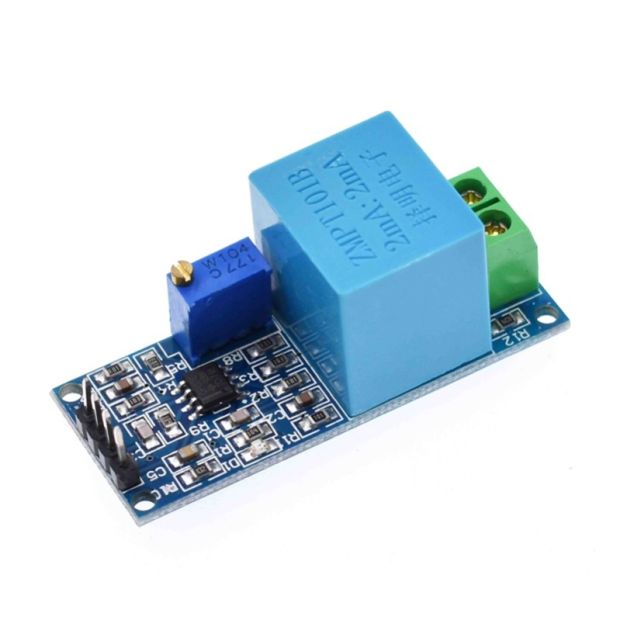

The ZMPT101B is a popular module used for measuring AC voltage. It's a specific type of voltage sensor that provides an isolated and precise way to measure AC voltage levels, often used in power monitoring applications. Here’s a detailed description of the ZMPT101B module:

1. Overview:

• Purpose:

  • The ZMPT101B is designed to measure AC voltage and provide a corresponding analog output that can be read by a microcontroller or other electronic devices. It’s widely used in power measurement, electrical monitoring, and similar applications.

• Type:

  • It’s a voltage transformer module with an integrated analog output, making it easy to interface with microcontrollers or analog-to-digital converters (ADC).

2. Key Components:

• Voltage Transformer:

  • The module contains a small step-down transformer that reduces the high AC voltage to a lower AC voltage level. This step-down transformer isolates the high voltage from the low voltage side of the module, providing safety during measurement.

• Voltage Divider:

  • After stepping down the voltage, a voltage divider circuit within the module scales the reduced voltage to a level suitable for analog measurement. This circuit ensures the output voltage is within the input range of most microcontrollers or ADCs.

• Op-Amp Circuit:

  • An operational amplifier (op-amp) is used to amplify the signal and provide a precise analog output. The op-amp helps in scaling and stabilizing the output voltage.

• Output Pin:

  • The module typically has an output pin that provides an analog voltage proportional to the input AC voltage. This output can be connected to an ADC or an analog input pin of a microcontroller.

3. Working Principle:

• AC Voltage Measurement:

  • The ZMPT101B module measures AC voltage through the transformer. The primary winding of the transformer is connected to the high voltage AC source, while the secondary winding provides a stepped-down voltage.

• Signal Conditioning:

  • The stepped-down AC voltage is then processed by the internal circuitry, including the voltage divider and op-amp, to produce a stable and proportional DC voltage output. This output DC voltage is easier to measure and interpret.

4. Applications:

• Power Monitoring:

  • Used in systems that monitor and measure electrical power consumption, voltage levels, and other electrical parameters.

• Voltage Sensing:

  • Useful in projects that require voltage sensing, such as in energy meters or electrical safety systems.

• Microcontroller Interfacing:

  • The analog output of the module can be interfaced with microcontrollers for data logging, real-time monitoring, or control systems.

• AC Voltage Display:

  • Can be used in conjunction with display systems to show real-time AC voltage values.

5. Circuit Connections:

• Power Supply:

  • The module is usually powered by a DC supply, typically in the range of 5V to 12V, depending on the specific design.

• Input AC Voltage:

  • Connects to the high-voltage AC source through the primary winding of the transformer.

• Analog Output:

  • Provides a DC voltage output proportional to the AC input voltage. This output is connected to the analog input of a microcontroller or ADC.

• Ground and Reference:

  • Proper grounding and reference connections are crucial to ensure accurate measurement and safety.

6. Calibration:

• Adjustment:
  • Some ZMPT101B modules may require calibration to ensure accurate voltage readings. Calibration typically involves adjusting the module to match a known reference voltage or using software to account for any deviations.

7. Safety Considerations:

• Isolation:

  • The transformer provides electrical isolation between the high-voltage input and the low-voltage output, enhancing safety.

• High Voltage Precautions:

  • Always handle the high-voltage connections with caution and ensure proper insulation and safety measures are in place.

8. Advantages:

• Isolation:

  • Provides electrical isolation between the high-voltage and low-voltage sides, which is crucial for safety.

• Accuracy:

  • Offers precise measurements of AC voltage with minimal distortion.

• Ease of Use:

  • Integrates the necessary components (transformer, voltage divider, op-amp) into a single module, simplifying the design and implementation process.

9. Limitations:

• Limited to AC Voltage:

  • Specifically designed for AC voltage measurement and not suitable for DC voltage or current measurement.

• Module Sensitivity:

  • Sensitivity to variations in AC frequency and waveform might require calibration or compensation in some applications.

In summary, the ZMPT101B module is a versatile and useful tool for measuring AC voltage, providing a safe and accurate way to interface with high-voltage AC signals and integrate them into electronic systems.
