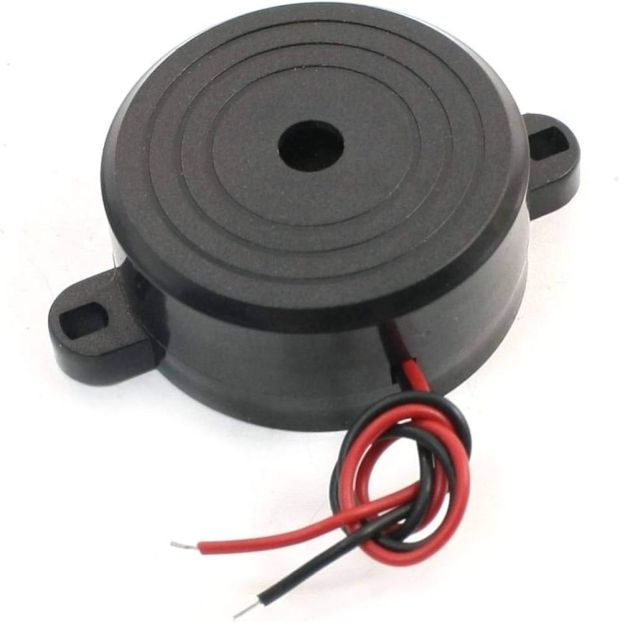

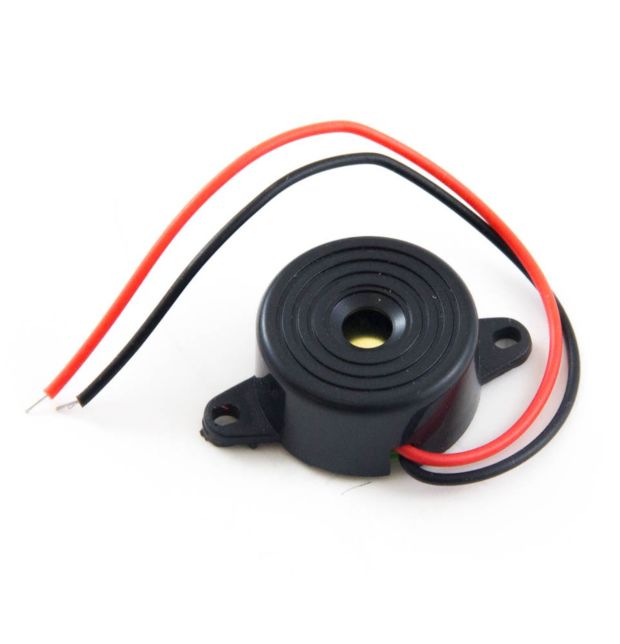

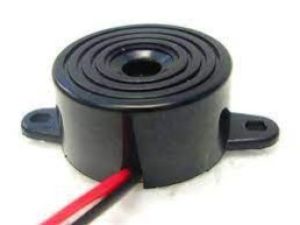

A 12V DC Buzzer is a type of electronic sound-emitting device that produces a tone or sound when powered by a 12V DC power source. These buzzers are commonly used in electronic circuits, alarms, notifications, and various other applications where an audible signal is needed.

Key Features and Details:

1. Operating Voltage:

   • The 12V DC buzzer operates with a 12V DC power supply. This is a common voltage used in automotive, battery-powered devices, and some industrial applications.

2. Types of Buzzers:

   • Active Buzzer: An active buzzer has a built-in oscillator circuit and will produce a sound as soon as power is applied. You do not need to send a separate signal to make it sound; just applying the 12V DC power is enough.
   • Passive Buzzer: A passive buzzer requires an external signal or square wave (usually from a microcontroller or signal generator) to produce a sound. It does not have a built-in oscillator, so you need to provide it with a frequency signal.

3. Sound Output:

   • The buzzer emits a beep, tone, or alarm sound depending on the design.
   • Tone: The tone produced can vary, but many buzzers produce a standard continuous beep or pulsing sound.
   • The sound volume is typically not adjustable, but there may be slight variations depending on the model.

4. Current Consumption:

   • The current drawn by the buzzer is usually low, typically in the range of 20mA to 50mA for most 12V DC buzzers, although it can vary by model and design.
   • For example, an active buzzer might use around 30mA of current when operating.

5. Common Applications:

   • Alarms: Used in security systems to provide a loud alert when a sensor is triggered.
   • Indicators: Used in devices to provide a notification or status update (e.g., when a process is complete, or there’s an error).
   • Timers: Often used in timing circuits for audible feedback.
   • Automotive: Used in vehicles for alarms, warning sounds, or indicators.
   • Toys and Gadgets: Many electronic toys or gadgets use buzzers to emit sounds for interactivity or to grab attention.

6. Size and Design:

   • Size: The size of the buzzer can vary from small (used in portable devices) to larger ones used in industrial or automotive settings.
   • Mounting: Buzzers can be panel-mounted (screwed into a panel or surface) or through-hole for easy installation on a PCB.

7. Tone Characteristics:

   • Frequency: The sound produced by the buzzer can vary in terms of frequency (Hz). Common frequencies are around 2-5kHz, though some buzzers can produce lower or higher tones.
   • Volume: Most 12V buzzers have a moderate to high sound output, but the loudness can vary depending on the size and design. It's usually loud enough to be heard in industrial or household environments.

How It Works:

• Active Buzzer: When you apply 12V DC to the terminals of an active buzzer, it will automatically start emitting a sound without needing any external signal. The built-in circuit oscillates and generates a tone.

• Passive Buzzer: A passive buzzer requires an external signal to work. For example, if you’re using a microcontroller (like an Arduino) to control the buzzer, the microcontroller will generate a square wave signal at a specific frequency, which causes the passive buzzer to produce a sound.

Example Circuit:

1. For an Active Buzzer:

   • Connect the positive terminal to the 12V DC power supply and the negative terminal to ground.
   • As soon as power is applied, the buzzer will start sounding.

2. For a Passive Buzzer:

   • Connect the positive terminal to a PWM output pin of a microcontroller (like an Arduino).
   • Connect the negative terminal to ground.
   • The microcontroller will send a square wave signal (with frequency and timing control) to the buzzer to generate sound.

Safety and Considerations:

• Polarity: Ensure correct polarity when connecting the buzzer to your circuit, especially with active buzzers, as connecting them in reverse may prevent them from functioning.
• Overload Protection: Although buzzers generally draw low current, it’s a good idea to make sure the circuit has overload protection or a current-limiting resistor if needed.
• Sound Intensity: Buzzers can be loud. Be cautious when using them in confined spaces or in environments where noise is an issue.

Conclusion:

The 12V DC buzzer is a simple and effective component for providing audible feedback in electronic systems. Whether it's for a security alarm, a notification system, or a timer, the buzzer’s function is to provide a clear and loud sound when powered. Active buzzers are easy to use, while passive buzzers give more control to the user for creating specific tones, especially in more complex circuits involving microcontrollers.
