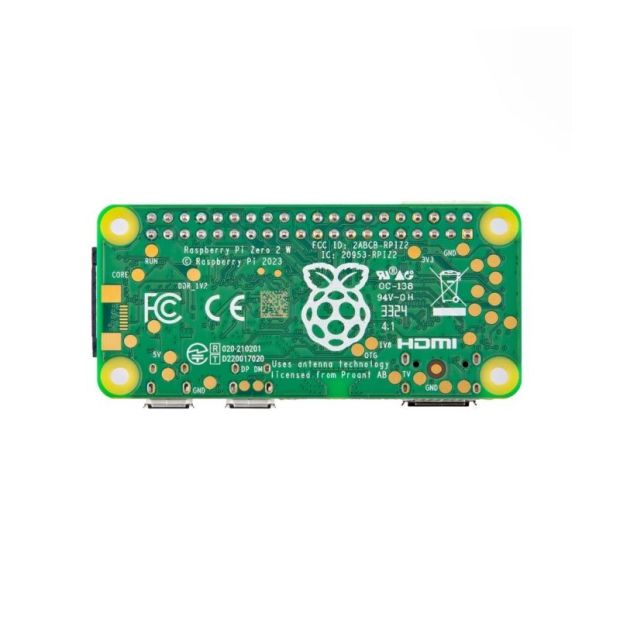

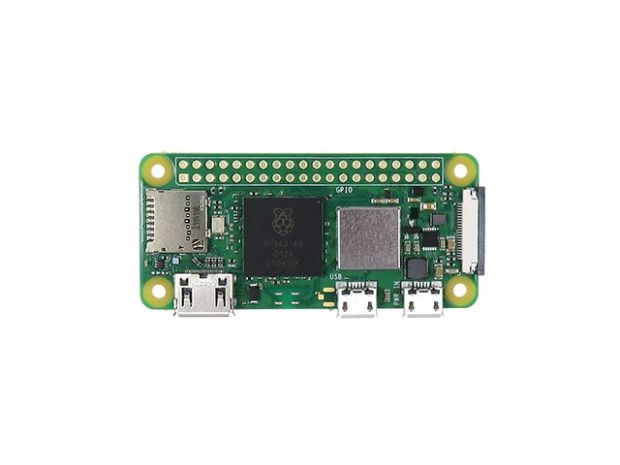

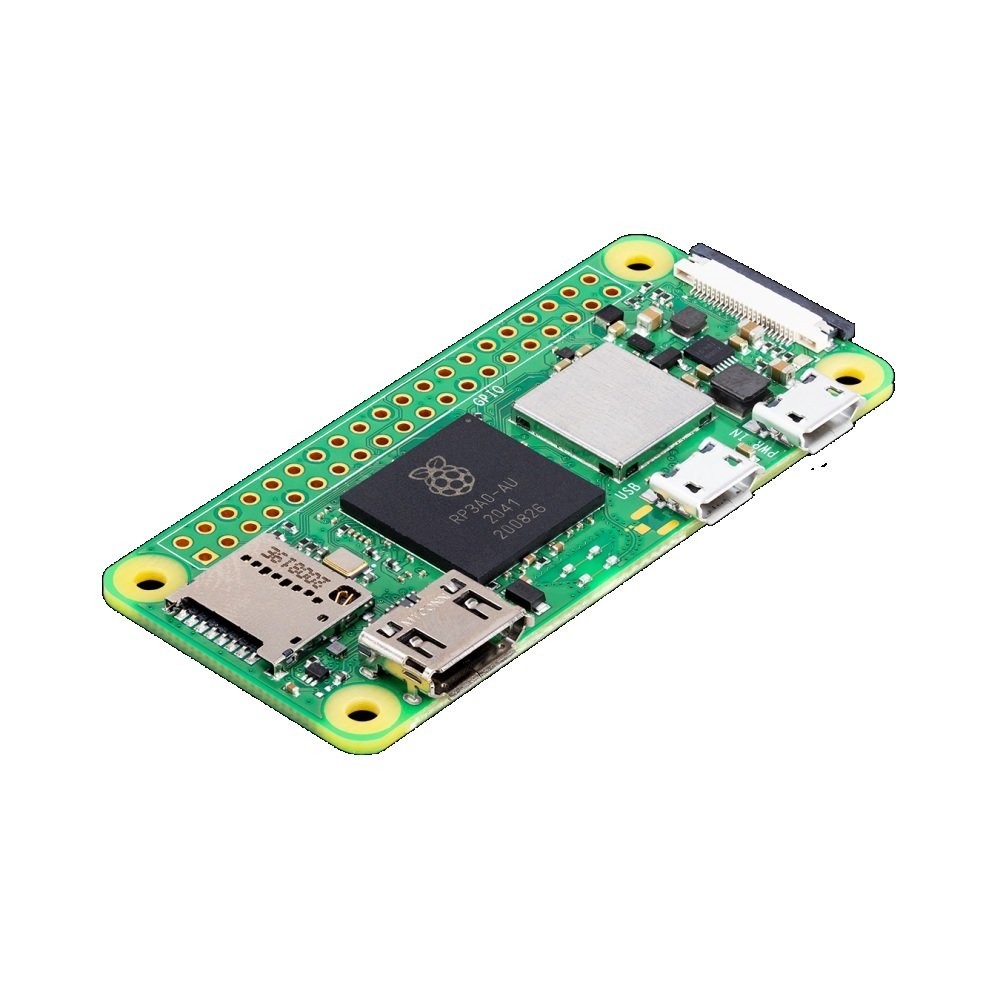

Raspberry Pi Zero 2 W – Overview and Specs

Though you mentioned “Raspberry Pi 2W,” all current official sources refer to this device as the Raspberry Pi Zero 2 W. No mainstream results indicate a different board named “2W.”

Key Specifications

• Processor & Memory
  Equipped with a Raspberry Pi–designed System-on-Package (RP3A0) that integrates the Broadcom BCM2710A1 quad-core 64-bit ARM Cortex‑A53 CPU at 1 GHz and 512 MB of LPDDR2 SDRAM Robuelement14ZboticCytron Technologies Malaysia.
  This delivers up to 5× multi‑core performance and ~40% better single‑core performance compared to the original Pi Zero W element14WIRED.

• Connectivity
  Includes 2.4 GHz 802.11 b/g/n Wi‑Fi, Bluetooth 4.2 + BLE, with a PCB antenna built-in element14Cytron Technologies Malaysia.

• Physical Interfaces

  • Mini‑HDMI for video output

  • Micro‑USB OTG & power ports

  • micro‑SD card slot element14Cytron Technologies Malaysia

  • CSI‑2 camera connector for camera modules (requires adapter cable) Cytron Technologies MalaysiaZbotic

  • HAT‑compatible 40‑pin GPIO header (comes unpopulated in the W version; pre-soldered in WH variant) Robuelement14Cytron Technologies Malaysia

  • Composite video & reset accessible via solder test pads RobuCytron Technologies Malaysia.

• Multimedia Features
  Supports H.264/MPEG‑4 decoding and encoding at 1080p30, plus OpenGL ES 1.1 & 2.0 graphics element14Cytron Technologies Malaysia.

• Form Factor & Power
  Small and lightweight, measuring approximately 65 × 30 × 5 mm and weighing ~10 grams Zboticelement14.
  Requires a 5 V DC 2.5 A power supply AmazonZbotic.

Performance & Community Feedback

• As mentioned earlier, upgrading from the original Pi Zero makes the Zero 2 W significantly more capable, particularly for multitasking and light desktop workloads WIREDelement14.

• Some users have shared from experience on forums like Reddit:

  “Alpine Linux is the standard recommendation… A base install is just a few megabytes.”
  “Raspbian... it fits comfortably in 512MB of RAM.”
  Reddit

  “A Pi Zero 2 W is effectively a Pi 3A+ with a slower clock… Any Pi 3 image that is okay with 512MB RAM will run.”
  Reddit

  These insights highlight that while it's resource-constrained, it's well-supported by Raspberry Pi OS variants and can handle lightweight uses effectively.

Summary Table
