Detailed Description:

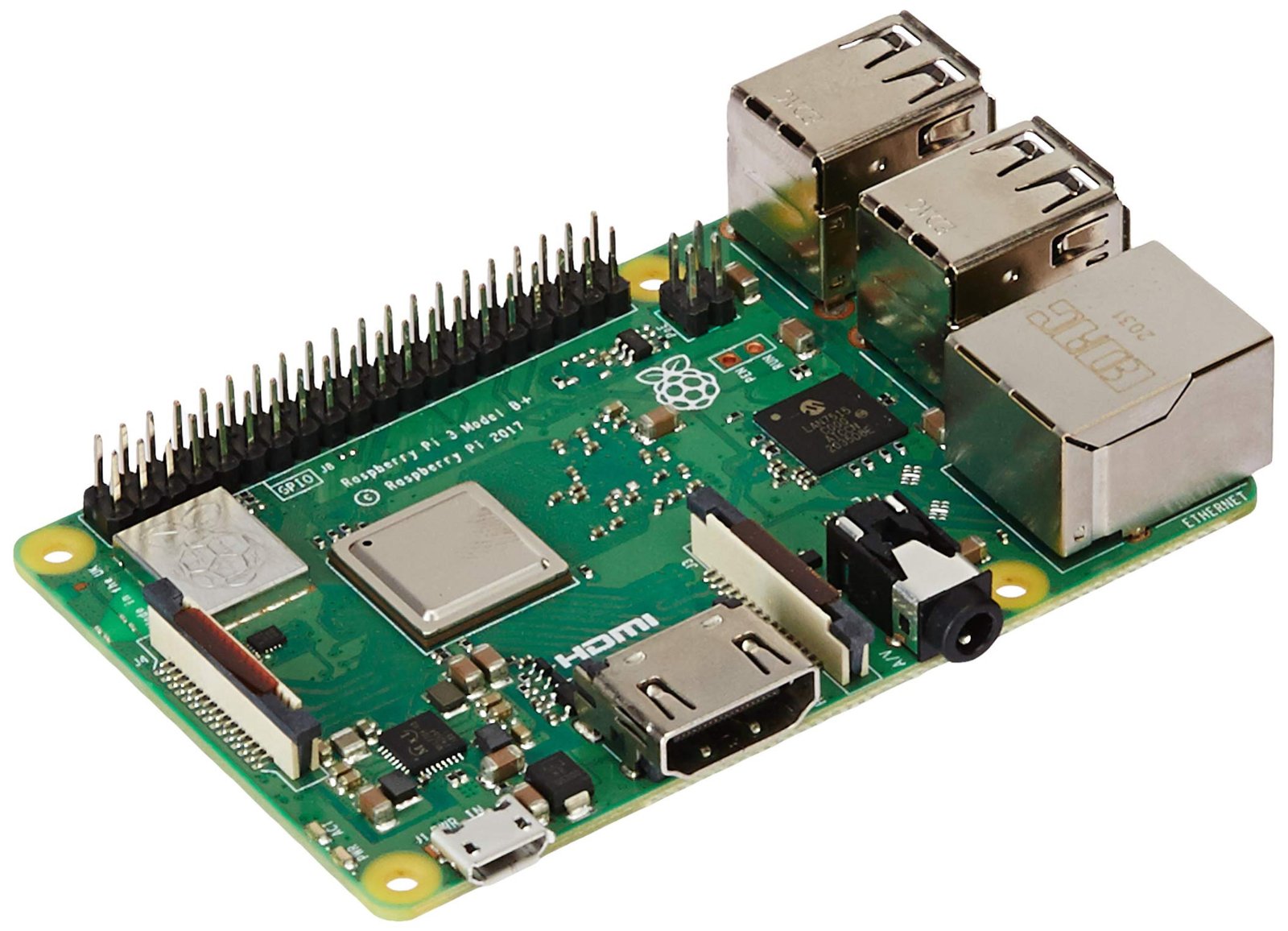

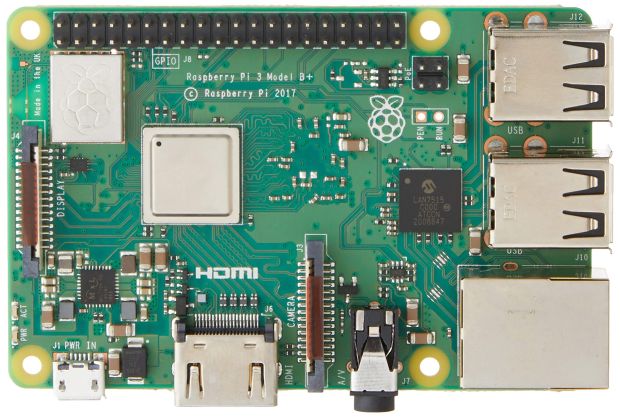

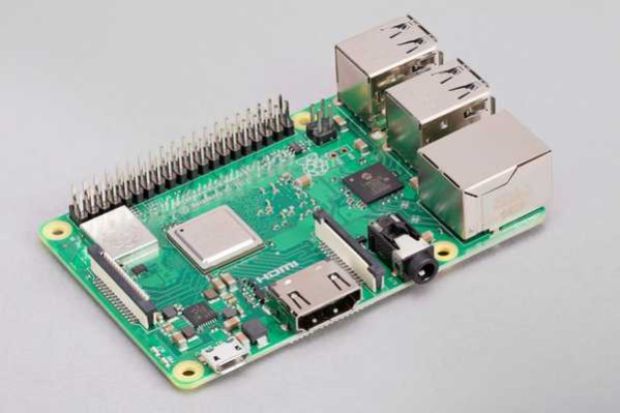

Unlock endless possibilities in computing, IoT, and embedded systems with the powerful Raspberry Pi 3 Model B+ Motherboard. This highly versatile single-board computer is a significant upgrade in the popular Raspberry Pi series, offering enhanced performance and connectivity, making it the ideal choice for a vast array of projects, from educational endeavors to advanced industrial applications.

At its core, the Raspberry Pi 3 Model B+ features a robust Broadcom BCM2837B0 SoC with a 1.4GHz Quad-Core 64-bit ARM Cortex-A53 Processor. This substantial processing power, combined with 1GB of LPDDR2 SDRAM, allows for smooth multitasking, efficient execution of various operating systems (like Raspberry Pi OS, Ubuntu, Windows 10 IoT Core), and the handling of demanding applications.

Connectivity is a key strength of the Raspberry Pi 3 Model B+. It comes equipped with:

• Dual-band 2.4GHz and 5GHz IEEE 802.11ac Wi-Fi: Provides fast and reliable wireless networking for internet access, cloud communication, and device-to-device interaction.

• Bluetooth 4.2 / BLE (Bluetooth Low Energy): Enables seamless wireless connections to a wide range of peripherals, sensors, and mobile devices.

• Gigabit Ethernet over USB 2.0 (up to 300Mbps throughput): Offers significantly faster wired network performance compared to its predecessors, ideal for network-intensive tasks like data transfer or server applications.

• 4 x USB 2.0 Ports: For connecting keyboards, mice, external storage, and various USB devices.

• Full-size HDMI Port: For connecting to monitors or TVs, supporting high-definition video output.

• MIPI DSI Display Port & MIPI CSI Camera Port: For dedicated display and camera module connections.

• 40-pin GPIO Header: A standard interface for connecting and controlling a vast ecosystem of sensors, actuators, and expansion boards (HATs), empowering countless hardware projects.

• PoE (Power over Ethernet) capability (with a separate PoE HAT): Allows the board to receive power directly over the Ethernet cable, simplifying wiring in certain installations.

The Raspberry Pi 3 Model B+ is not just a computer; it's a platform for innovation. Popular applications include:

• IoT & Home Automation: Building smart home hubs, controlling lights, thermostats, and security systems.

• Robotics & Drones: Acting as the brain for advanced robotic platforms.

• Media Centers: Running Kodi or Plex for a powerful home entertainment system.

• Edge Computing & AI/ML: Deploying machine learning models for local data processing.

• Web Servers & Network Monitoring: Hosting websites, VPNs, or monitoring network traffic.

• STEM Education: An invaluable tool for teaching programming, electronics, and computer science.

Experience enhanced performance and expanded capabilities for your next big idea.

The Raspberry Pi 3 Model B+ is an enhanced version of the Raspberry Pi 3 Model B, designed to deliver more processing power, improved network connectivity, and wider application support. It features a 1.4GHz 64-bit quad-core ARM Cortex-A53 processor, 1GB LPDDR2 RAM, and supports full HD video, networking, and GPIO-based electronics projects.

With built-in 802.11ac dual-band Wi-Fi, Bluetooth 4.2, and Gigabit Ethernet over USB 2.0, it's perfect for IoT devices, media servers, home automation, edge computing, and STEM education platforms. Compatible with Raspberry Pi OS, Ubuntu, Kali, and other Linux distributions.

Key Features:

• Quad-core 64-bit ARM Cortex-A53 @ 1.4GHz

• 1GB LPDDR2 SDRAM

• Dual-band Wi-Fi 802.11 b/g/n/ac (2.4GHz + 5GHz)

• Bluetooth 4.2 + BLE

• Gigabit Ethernet (over USB 2.0, 300 Mbps max)

• 40 GPIO pins for hardware interfacing

• Full-size HDMI output

• 4 x USB 2.0 ports

• CSI and DSI camera/display interfaces

• MicroSD slot for OS and storage

• Powered via 5V/2.5A Micro USB

Technical Specifications:

How to Use:

1. Flash an OS like Raspberry Pi OS to a microSD card

2. Insert the SD card and connect power, HDMI, USB keyboard/mouse

3. Boot into the OS and start coding or building IoT apps

4. Connect sensors or modules via GPIO header

Applications:

• IoT edge devices & data logging

• Python and Linux programming

• Smart home automation hubs

• Media center (Kodi, Plex, etc.)

• AI/ML on edge using TensorFlow Lite

• Educational robotics and STEM kits

• Remote weather stations and monitoring

Package Includes:

• 1 x Raspberry Pi 3 Model B+ Motherboard (1GB RAM)
  (Power supply, case, SD card not included – available separately or in kits)
