Product Description (Detailed):

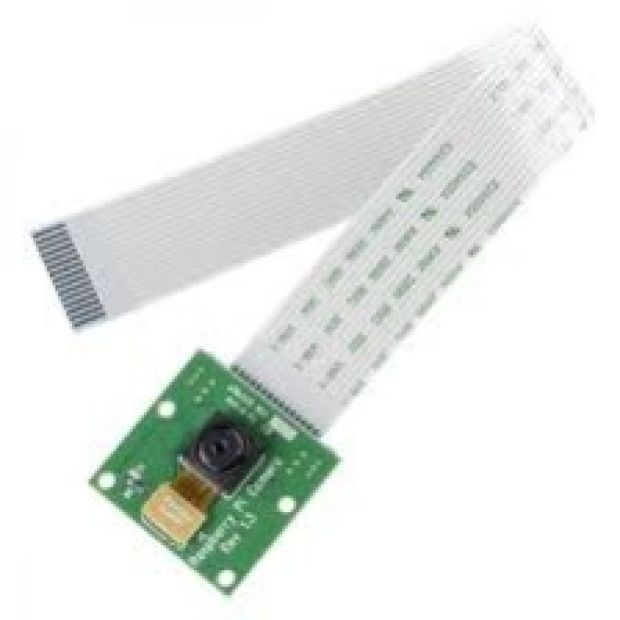

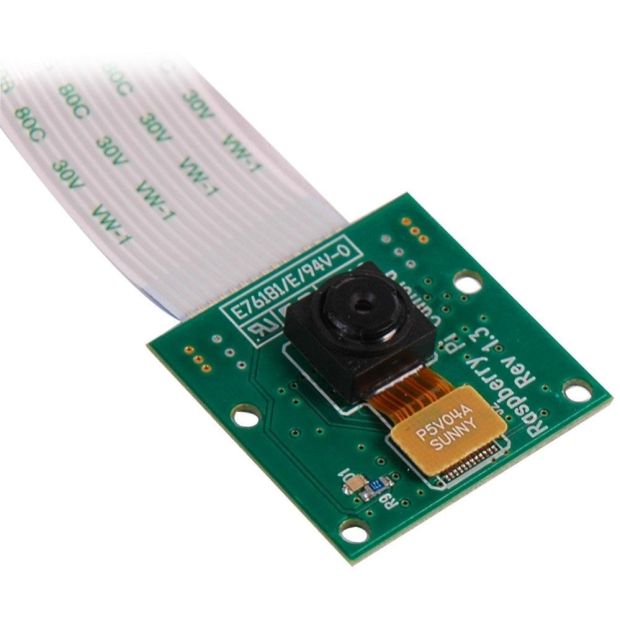

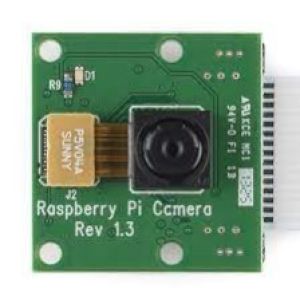

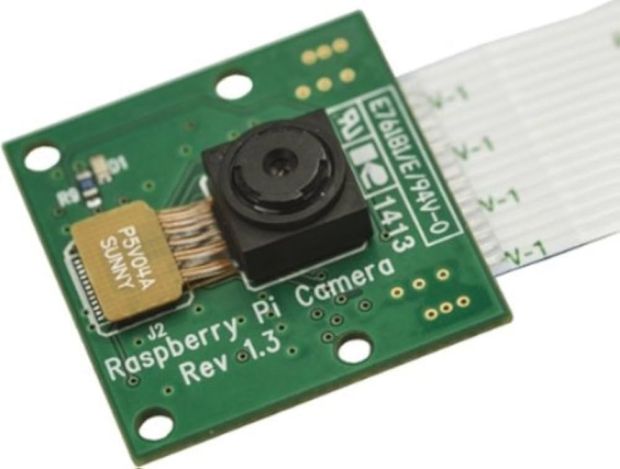

Unlock a world of visual possibilities for your embedded projects with the Raspberry Pi Camera Module 5MP, featuring the reliable OmniVision OV5647 sensor. This original iteration of the official Raspberry Pi camera offers a cost-effective yet powerful solution for capturing high-quality images and video. Boasting a native resolution of 5 megapixels (2592 x 1944 pixels) for still photographs, it also supports versatile video modes including 1080p at 30fps, 720p at 60fps, and even 640x480p at 90fps, making it ideal for motion analysis or high-speed capture. The module connects seamlessly via the dedicated CSI (Camera Serial Interface) port on all Raspberry Pi boards, from the original models to the Raspberry Pi 4 and even the compact Pi Zero, utilizing a 15-pin FFC cable. Its fixed-focus lens (typically 3.6mm focal length) provides a suitable field of view for a multitude of applications. With excellent integration with Raspbian OS and compatibility with powerful libraries like Picamera and OpenCV, this module is perfect for DIY surveillance systems, time-lapse photography, robotics vision, and various IoT camera projects. Leverage its compact size and low power consumption to add intelligent visual capabilities to your next innovative creation.

This 5MP Raspberry Pi Camera Module is a high-quality image sensor board based on the OmniVision OV5647 sensor, capable of capturing still images up to 2592×1944 pixels and video at 1080p30, 720p60, and VGA90.

It is designed to connect directly to the CSI port on Raspberry Pi boards, enabling seamless integration with AI, machine vision, robotics, surveillance, and IoT projects. It supports motion detection, image processing, and OpenCV applications right out of the box with Raspbian OS.

Perfect for face detection, license plate recognition, time-lapse photography, or just fun DIY Pi camera experiments.

Key Features:

• 5MP OV5647 CMOS sensor for clear image & video

• Captures 1080p, 720p, and 640x480 video

• Fully compatible with Raspberry Pi models including Zero & 4B

• Supports Raspbian & third-party camera applications

• 15cm FFC cable included for easy Pi connection

• Plug-and-play via CSI (Camera Serial Interface) port

Technical Specifications:

How to Use:

1. Power off Raspberry Pi and connect the camera module to the CSI port (near HDMI).

2. Boot Pi and enable the camera via raspi-config.

3. Use commands like raspistill or raspivid to test image/video capture.

4. Integrate with OpenCV, Python, or Node.js for custom applications.

Tip: Use raspistill -o image.jpg to take a snapshot.

Applications:

• AI and machine vision

• DIY surveillance and motion detection

• IoT-enabled camera projects

• Smart agriculture and weather stations

• Robotics and line-following robots

• Time-lapse and wildlife photography

Package Includes:

• 1 × 5MP Raspberry Pi Camera Module (OV5647)

• 1 × 15cm FFC Cable
