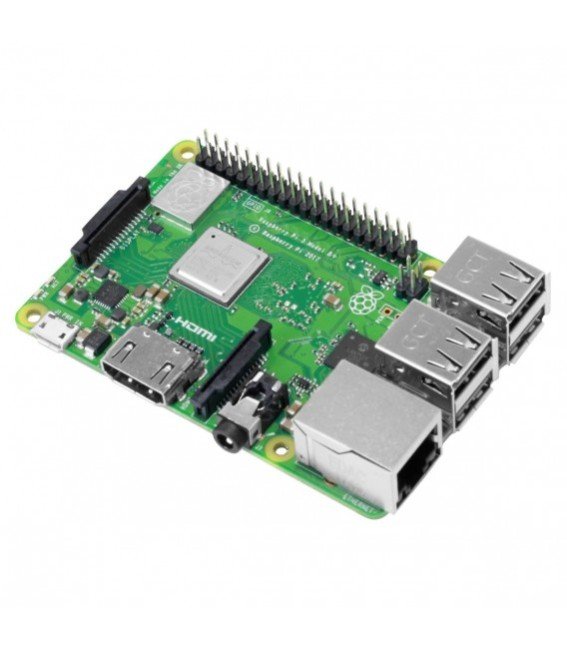

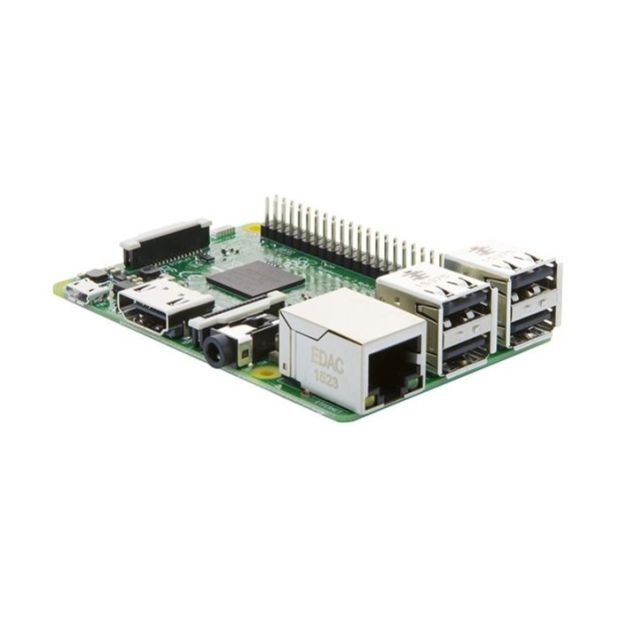

The Raspberry Pi 3 Model B+ is a versatile and popular single-board computer from the Raspberry Pi Foundation. Here’s a detailed description:

Key Features:

1. Processor:

   • CPU: Broadcom BCM2837B0, Quad-core ARM Cortex-A53, 64-bit, running at 1.4 GHz.
   • GPU: Broadcom VideoCore IV.

2. Memory:

   • RAM: 1 GB LPDDR2 SDRAM.

3. Networking:

   • Wi-Fi: Onboard 802.11n Wireless LAN.
   • Ethernet: 10/100 Mbps Ethernet port.
   • Bluetooth: Bluetooth 4.2.

4. Ports:

   • USB Ports: 4 x USB 2.0 ports.
   • HDMI: Full-size HDMI port.
   • Audio: 3.5mm audio jack (composite video and audio).
   • Camera Interface: CSI (Camera Serial Interface) connector.
   • Display Interface: DSI (Display Serial Interface) connector.

5. Storage:

   • MicroSD Card Slot: For the operating system and data storage.

6. Power:

   • Power Supply: 5V via micro-USB connector.
   • Power Consumption: Typically 2.5W to 3W.

7. GPIO:

   • General Purpose I/O: 40-pin GPIO header, fully compatible with previous Raspberry Pi boards.

8. Dimensions:

   • Size: Approximately 85.6mm x 56.5mm.

Improvements Over Previous Models:

• Enhanced Performance: The Raspberry Pi 3B+ has a faster 1.4 GHz processor compared to the 3B's 1.2 GHz, leading to better performance.
• Improved Networking: It features faster Ethernet (Gigabit over USB 2.0) and better Wi-Fi (dual-band 2.4 GHz and 5 GHz).
• Better Thermal Management: The board has improved heat dissipation features.

Use Cases:

• Learning and Development: Great for learning programming, electronics, and system design.
• Projects: Ideal for DIY electronics projects, media centers, retro gaming consoles, and home automation.
• Prototyping: Often used for prototyping embedded systems and IoT applications.

Overall, the Raspberry Pi 3B+ is a powerful and cost-effective tool for hobbyists, educators, and developers, providing a solid foundation for a wide range of computing tasks.

import RPi.GPIO as GPIO
import time

# Set up the GPIO mode to BCM
GPIO.setmode(GPIO.BCM)

# Define GPIO pins
LED_PIN = 17       # GPIO pin connected to the LED
BUTTON_PIN = 18    # GPIO pin connected to the pushbutton

# Set up the GPIO pins
GPIO.setup(LED_PIN, GPIO.OUT)        # Set LED pin as an output
GPIO.setup(BUTTON_PIN, GPIO.IN, pull_up_down=GPIO.PUD_UP)  # Set button pin as input with pull-up resistor

# Main loop to monitor the button and control the LED
try:
    while True:
        # Check if the button is pressed
        button_state = GPIO.input(BUTTON_PIN)

        if button_state == GPIO.LOW:  # Button pressed (since the button pulls the pin LOW)
            GPIO.output(LED_PIN, GPIO.HIGH)  # Turn the LED on
            print("Button Pressed! LED ON")
        else:
            GPIO.output(LED_PIN, GPIO.LOW)   # Turn the LED off
            print("Button Released! LED OFF")

        time.sleep(0.1)  # Delay for debouncing and to avoid high CPU usage

except KeyboardInterrupt
