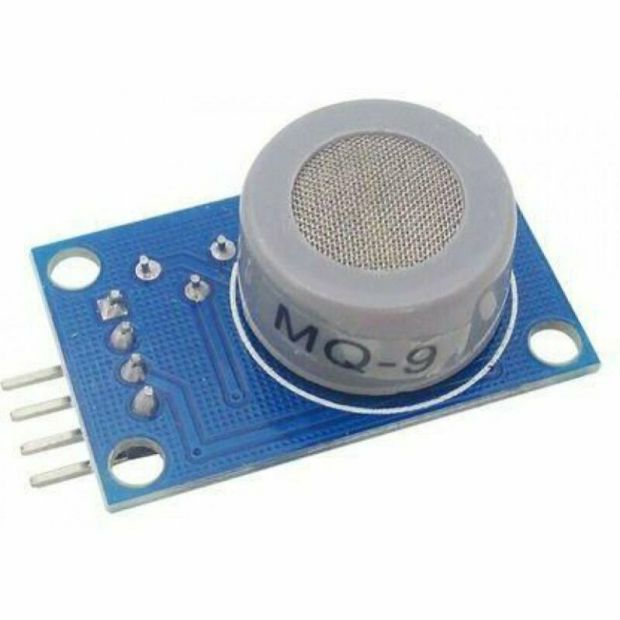

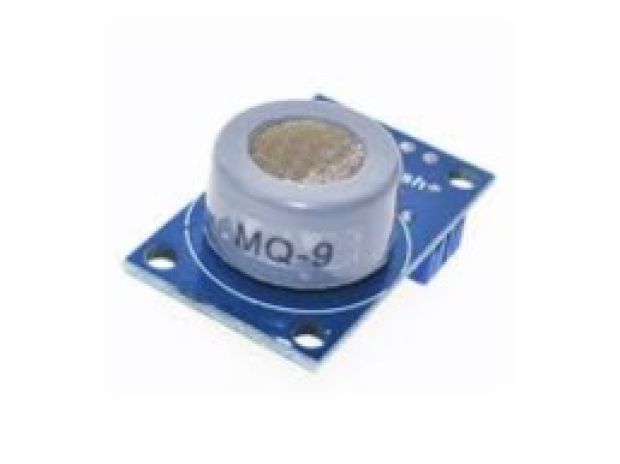

The MQ9 gas sensor module is designed to detect carbon monoxide (CO), methane (CH4), and liquefied petroleum gas (LPG). It's a versatile sensor used in various applications such as gas leak detection, air quality monitoring, and environmental safety. Here’s a detailed overview of the MQ9 gas sensor module:

MQ9 Gas Sensor Module Overview:

1. Key Features:

• Gas Detection:

  • Primary Gases: Carbon monoxide (CO), methane (CH4), and liquefied petroleum gas (LPG).
  • Secondary Gases: The sensor may also respond to other combustible gases.

• Heating Element:

  • Includes a heating element that ensures the sensor operates at the required temperature for accurate detection.

• Analog Output:

  • Provides an analog voltage output that varies with the concentration of the detected gases. This signal can be used to determine gas levels.

• Digital Output (Optional):

  • Some MQ9 modules feature a digital output that activates when gas concentrations exceed a predefined threshold, useful for triggering alarms or other actions.

2. Working Principle:

• Gas Detection:

  • The MQ9 sensor uses a metal oxide semiconductor (MOS) material that changes its electrical resistance in the presence of target gases. This change in resistance alters the analog output voltage.

• Heating Process:

  • A heating element maintains the sensor's temperature, which is crucial for accurate and stable gas detection.

• Output Signal:

  • The analog output voltage is proportional to the concentration of the gases detected. This signal can be read by a microcontroller or analog-to-digital converter (ADC) to measure gas concentrations.

3. Circuit Connections:

• Power Supply:

  • VCC: Connect to a 5V power source.
  • GND: Connect to ground.

• Analog Output:

  • A0: Connect the analog output pin to an analog input pin on a microcontroller or ADC to measure the concentration of CO, methane, or LPG.

• Digital Output (if available):

  • D0: Connect to a digital input pin on the microcontroller. This output can be used to trigger an alert or control system when gas concentrations exceed a set threshold.

• Heater Control:

  • The module may include additional pins for controlling the heater. Consult the datasheet for specific wiring instructions.

4. Applications:

• Gas Leak Detection:

  • Used in safety systems to detect leaks of CO, methane, or LPG, providing early warnings to prevent hazardous situations.

• Air Quality Monitoring:

  • Applied in systems to monitor air quality by detecting concentrations of combustible gases.

• Environmental Safety:

  • Employed in various safety systems to ensure safe levels of gases in industrial or residential environments.

• Home Safety:

  • Can be used in household safety devices to detect dangerous levels of gases.

5. Calibration:

• Initial Calibration:

  • Expose the sensor to clean air to establish a baseline for zero gas concentration.

• Gas Concentration Calibration:

  • For accurate measurements, calibrate the sensor with known concentrations of target gases (e.g., CO, methane, LPG). This involves creating a calibration curve to convert the sensor’s output into gas concentration values.

6. Advantages:

• Versatility:

  • Can detect multiple gases including CO, methane, and LPG, making it suitable for a range of applications.

• Cost-Effective:

  • Provides an affordable solution for detecting multiple gases and ensuring safety.

• Ease of Integration:

  • Simple to integrate with microcontrollers and development boards due to its analog and optional digital outputs.

7. Limitations:

• Sensitivity to Interference:

  • The sensor may respond to gases other than those it is primarily designed to detect, which can impact accuracy. Proper calibration is necessary for reliable results.

• Warm-Up Time:

  • Requires a warm-up period to stabilize and provide accurate readings.

• Limited Lifespan:

  • The sensing material can degrade over time, potentially affecting the sensor's performance and accuracy.

8. Example Use Case:

Gas Leak Detection System:

• In a gas leak detection system, the MQ9 sensor can monitor the concentration of CO, methane, or LPG. If the sensor detects a gas concentration above a predefined threshold, the system can activate an alarm or take other safety actions to prevent potential hazards.

Summary:

The MQ9 gas sensor module is a versatile and cost-effective tool for detecting carbon monoxide, methane, and LPG. Its ability to detect multiple gases and ease of integration make it suitable for applications in gas leak detection, air quality monitoring, and environmental safety. Proper calibration and understanding of the sensor's limitations are essential for achieving accurate and reliable performance. For specific details and connection instructions, refer to the datasheet for the MQ9 module.
