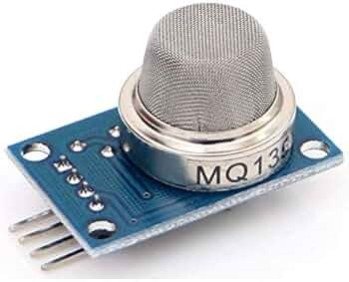

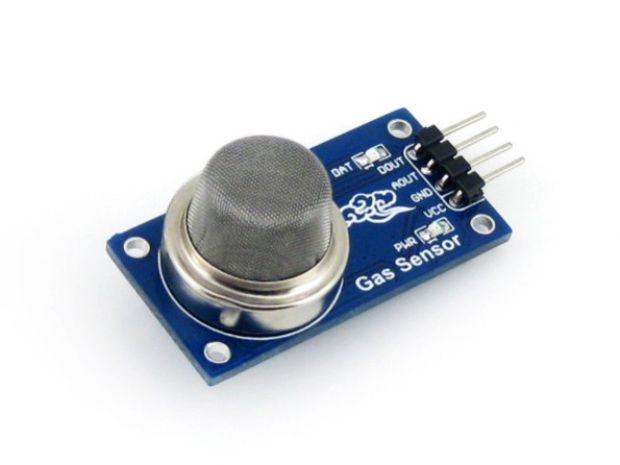

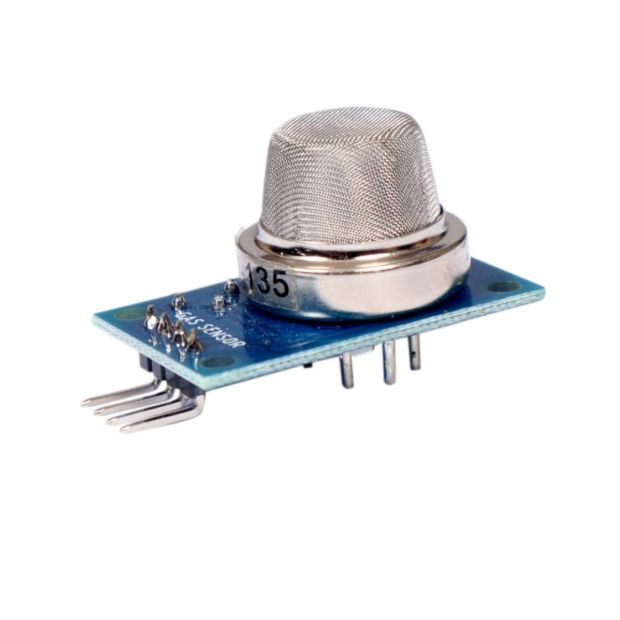

The MQ135 gas sensor module is a versatile sensor used for detecting a range of gases, including ammonia (NH3), nitrogen oxides (NOx), benzene, smoke, and carbon dioxide (CO2). It's commonly used in air quality monitoring systems to measure the concentration of these gases in the environment. Here’s a detailed overview of the MQ135 gas sensor module:

MQ135 Gas Sensor Module Overview:

1. Key Features:

• Gas Detection:

  • The MQ135 sensor is sensitive to multiple gases and can detect a variety of air pollutants. It is particularly useful for measuring levels of gases that contribute to air pollution.

• Heating Element:

  • The sensor includes a heating element that maintains the sensing material at a stable temperature, ensuring accurate and reliable gas detection.

• Analog Output:

  • Provides an analog voltage output that varies with the concentration of the detected gases. This signal is used to determine the concentration of gases by comparing it to known calibration values.

• Digital Output (Optional):

  • Some MQ135 modules include a digital output that can be used to signal when the gas concentration exceeds a predefined threshold, useful for triggering alarms or control systems.

2. Working Principle:

• Gas Detection:

  • The MQ135 sensor uses a metal oxide semiconductor (MOS) sensing element that changes its resistance in the presence of target gases. The change in resistance alters the analog output voltage.

• Heating Process:

  • A built-in heating element ensures that the sensor operates at a consistent temperature, which is crucial for accurate gas detection and stable readings.

• Output Signal:

  • The analog output voltage is proportional to the gas concentration. This voltage can be measured using an analog-to-digital converter (ADC) or microcontroller to determine gas levels.

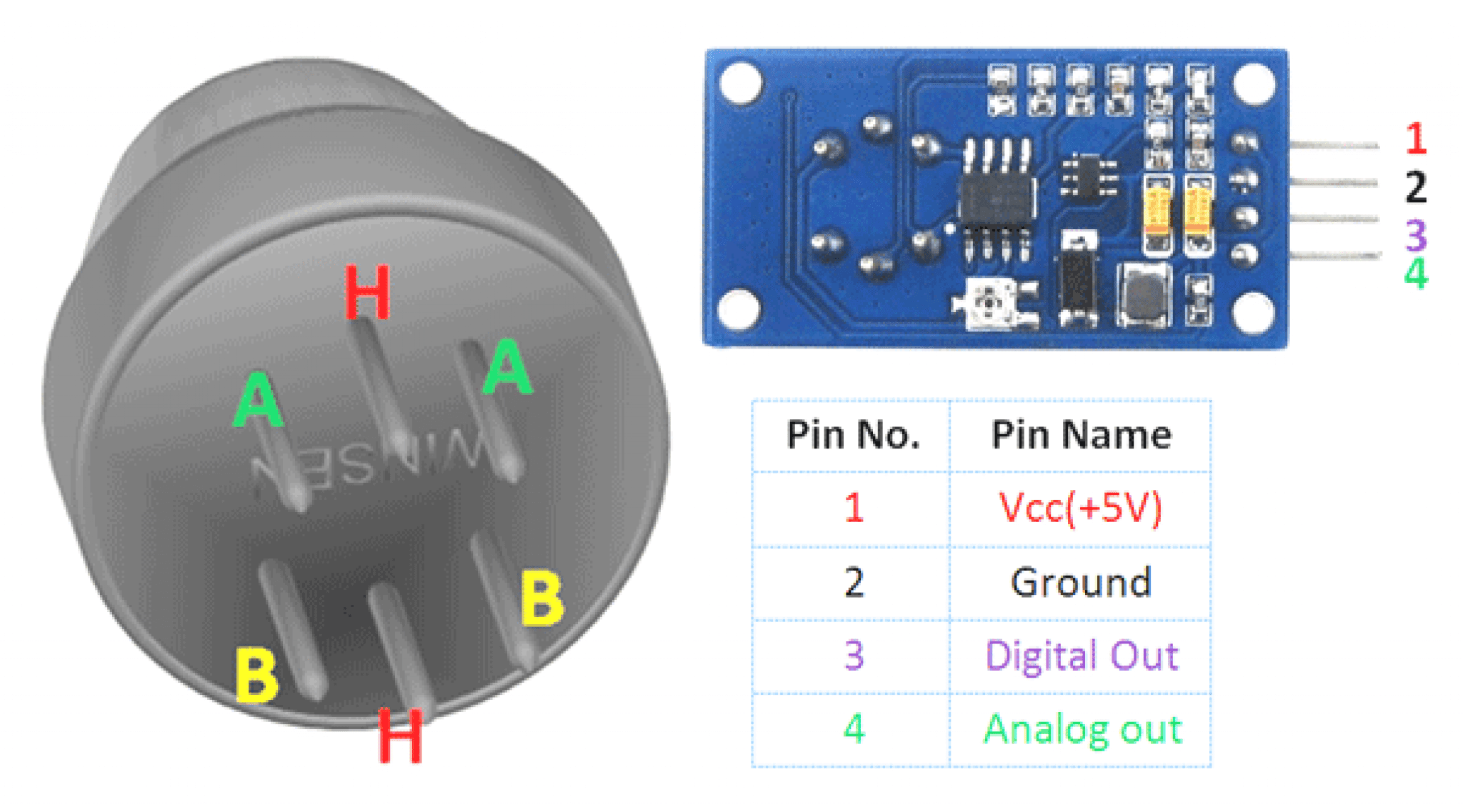

3. Circuit Connections:

• Power Supply:

  • Connect the VCC pin to a 5V power source. Ensure that the sensor receives the correct voltage to avoid damage. Connect the GND pin to ground.

• Analog Output:

  • Connect the analog output pin (A0) to an analog input pin on a microcontroller or ADC for measuring the gas concentration.

• Digital Output (if available):

  • If the module has a digital output pin (D0), connect it to a digital input pin on the microcontroller. This pin can be used to trigger alerts when the gas concentration exceeds a set threshold.

• Heater Control:

  • Some modules might have additional pins for heater control. Check the datasheet for detailed connection instructions.

4. Applications:

• Air Quality Monitoring:

  • Used in systems to monitor and improve indoor air quality by detecting pollutants and gases.

• Gas Leak Detection:

  • Employed in safety systems to detect gas leaks and prevent hazardous situations in industrial or residential settings.

• Environmental Monitoring:

  • Applied in systems that track environmental pollution levels and ensure safe air quality conditions.

• Breath Analysis:

  • Used in breath analyzers to measure the concentration of gases associated with health or environmental conditions.

5. Calibration:

• Initial Calibration:

  • Perform an initial calibration by exposing the sensor to clean air to establish a baseline for zero gas concentration.

• Gas Concentration Calibration:

  • To accurately measure specific gas concentrations, calibrate the sensor with known concentrations of the target gases. This involves creating a calibration curve based on the sensor’s response to these known levels.

6. Advantages:

• Versatility:

  • Can detect multiple gases, making it suitable for a wide range of air quality monitoring applications.

• Cost-Effective:

  • Provides an affordable solution for detecting and measuring gas concentrations.

• Ease of Integration:

  • Easy to integrate with microcontrollers and development boards due to its analog and optional digital outputs.

7. Limitations:

• Sensitivity to Interference:

  • The sensor may respond to gases other than those it is primarily designed to detect, affecting accuracy. Proper calibration is crucial for reliable readings.

• Warm-Up Time:

  • Requires a warm-up period to stabilize and provide accurate readings.

• Limited Lifespan:

  • The sensing material can degrade over time, which may affect the sensor’s performance and accuracy.

8. Example Use Case:

Air Quality Monitoring System:

• In an air quality monitoring system, the MQ135 sensor is used to measure the concentration of various gases in the environment. The analog output is read by a microcontroller, which processes the data and displays it or triggers an alert if gas concentrations exceed safe levels.

Summary:

The MQ135 gas sensor module is a versatile and cost-effective tool for detecting and measuring a variety of gases. Its sensitivity to multiple pollutants and ease of integration make it suitable for applications in air quality monitoring, gas detection, and environmental analysis. Proper calibration and understanding of the sensor’s limitations are essential for achieving accurate and reliable results. For detailed specifications and connection instructions, refer to the datasheet specific to the MQ135 module.
