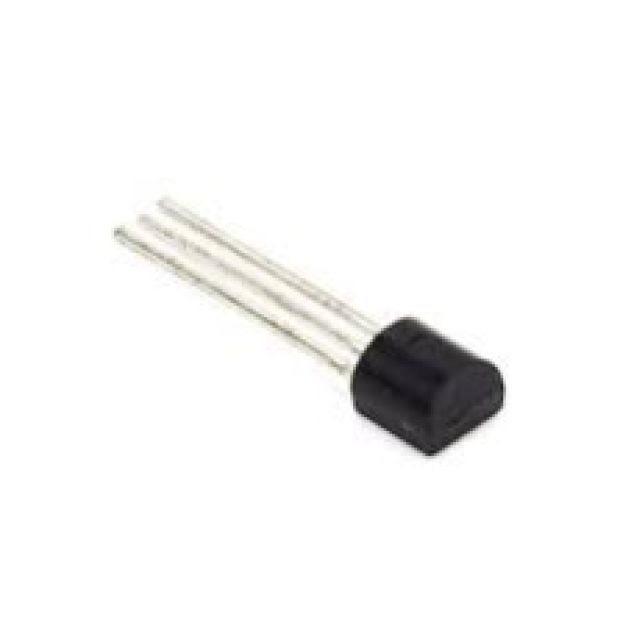

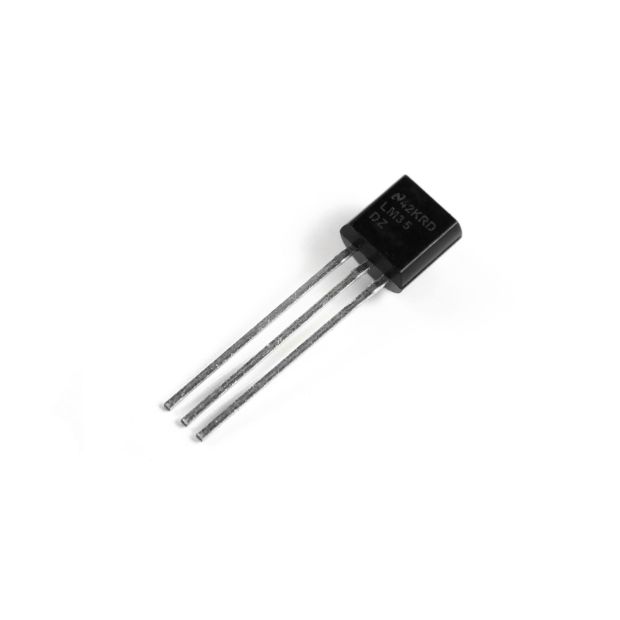

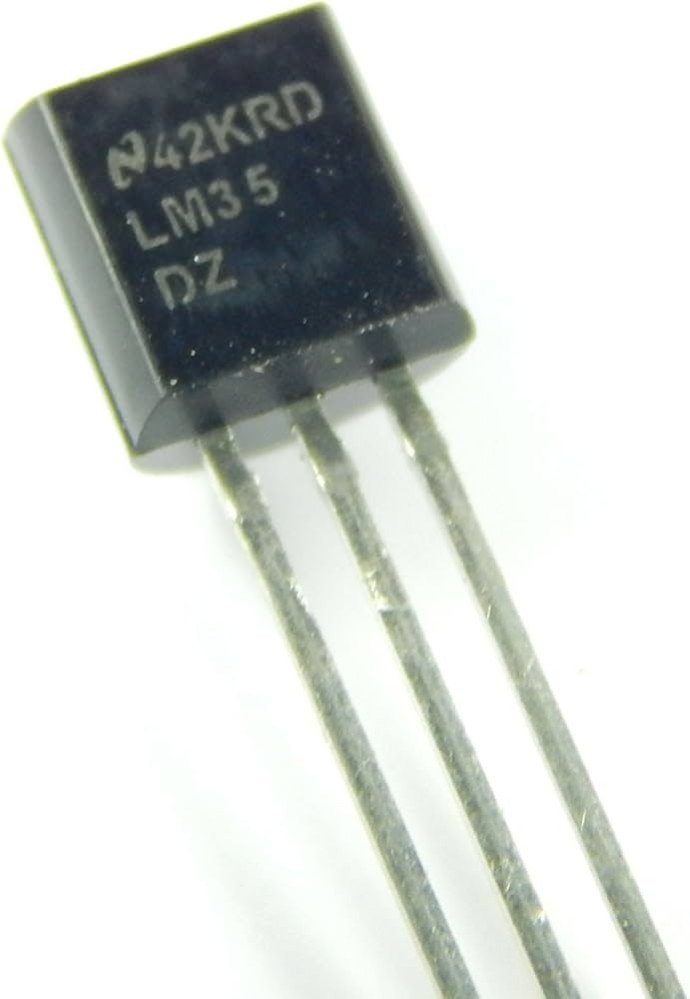

LM35 TO-92-3 Board Mount Temperature Sensors
LM35 is a temperature measuring device having an analog output voltage proportional to the temperature. It provides output voltage in Centigrade (Celsius). It does not require any external calibration circuitry. The sensitivity of LM35 is 10 mV/degree Celsius. As temperature increases, output voltage also increases.
₹ 58 ₹99
99
The LM35 is a popular temperature sensor known for its precision and ease of use. Here’s an overview of its features, specifications, and applications:
Key Features
- Analog Output: Produces a linear output voltage that corresponds to the temperature in Celsius. For example, it outputs 10 mV per °C.
- Wide Temperature Range: Typically operates from -55°C to +150°C, making it suitable for various applications.
- Low Power Consumption: Operates at low current, making it ideal for battery-powered devices.
- Calibration-Free: The output is directly proportional to temperature, eliminating the need for complex calibration.
Specifications
- Operating Voltage: 4V to 30V.
- Output Sensitivity: 10 mV/°C.
- Accuracy: ±0.5°C at room temperature.
- Package: Available in TO-92, SOIC, and other package types.
Wiring
To use the LM35 with a microcontroller (like Arduino), follow these steps:
-
Connect Power:
- VCC: Connect to a 5V power supply.
- GND: Connect to ground.
-
Output:
- Connect the output pin to an analog input pin on the microcontroller.
| Manufacturer: |
Generic |
|---|---|
| Case/Package: |
TO 92 3 |
| Mounting Type: |
Through Hole |
| Sensor Type |
Temperature Sensor |
| Output Type |
Analog Voltage |
| Max. Supply Voltage (V) |
30 |
| Min Supply Voltage |
4 |
| Operating Temperature (°C) |
-55 to 150 |
| Shipping Weight | 0.008 kg |
| Shipping Dimensions | 8 × 5 × 3 cm |
