A 20x4 LCD display is a character-based Liquid Crystal Display (LCD) module that can display up to 20 characters per line and has 4 lines of text. These displays are often used in various electronic projects and devices due to their simplicity and ease of use. Here’s a guide on using a 20x4 LCD display with a microcontroller or development board like an Arduino or Raspberry Pi.

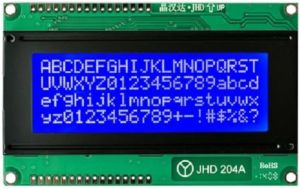

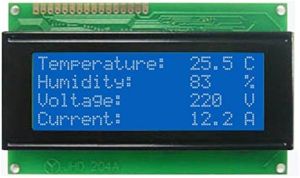

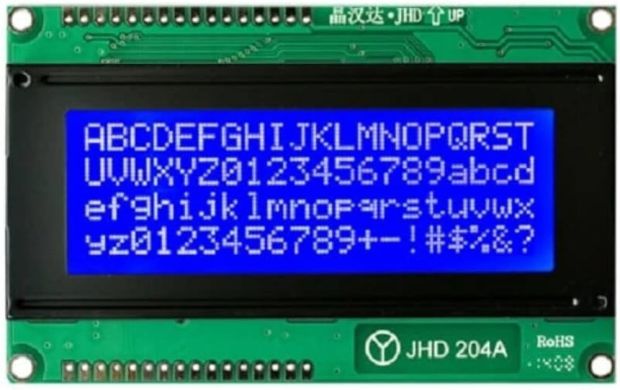

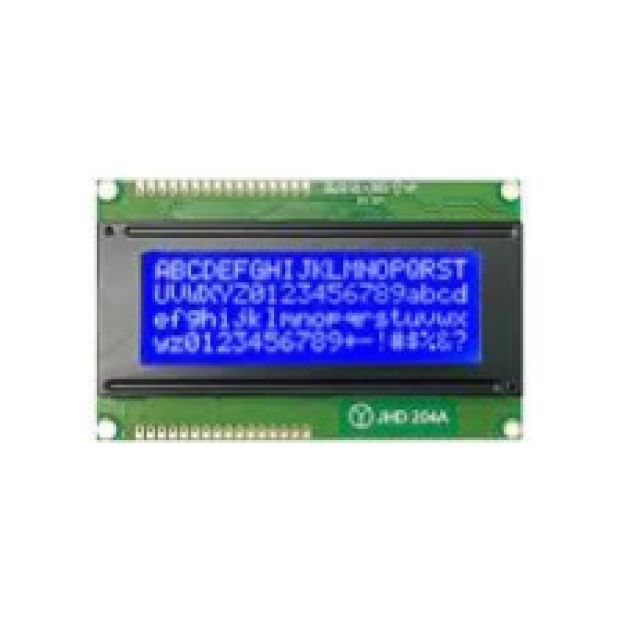

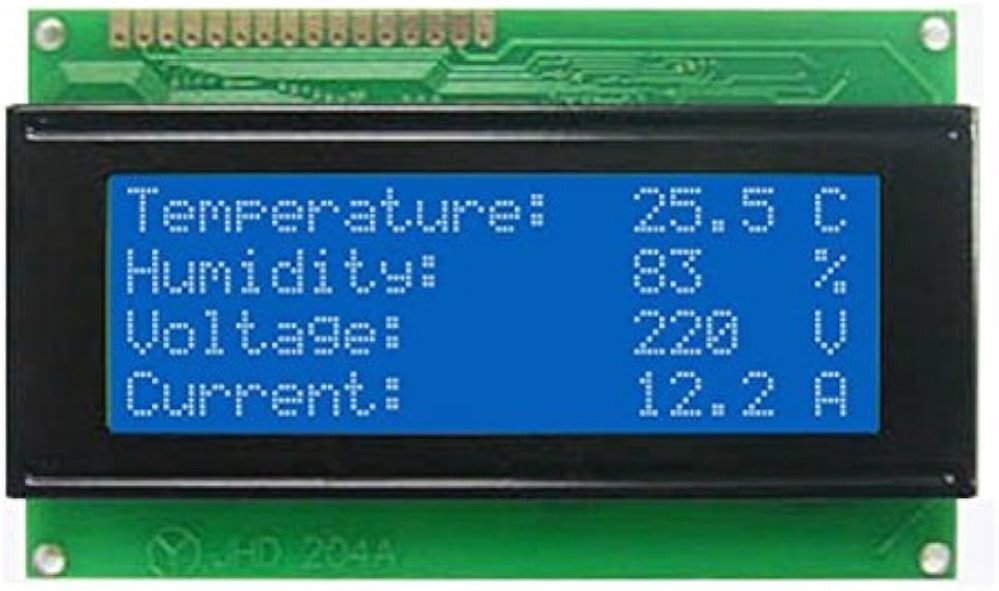

Overview of 20x4 LCD Display

• Character Capacity: 20 characters per line, 4 lines.
• Type: Typically uses the HD44780 controller or compatible.
• Backlight: Many models include a backlight for better visibility.
• Interface: Generally uses a 16-pin interface (or 14-pin for some models without a backlight).

Pinout

The typical pin configuration for a 20x4 LCD display is as follows:

1. GND: Ground
2. VCC: Power supply (usually 5V)
3. VO: Contrast adjustment (connected to a potentiometer)
4. RS: Register Select (0 for command, 1 for data)
5. RW: Read/Write (0 for write, 1 for read)
6. E: Enable (used to latch data)
7. DB0-DB3: Data bus lines (optional, for 4-bit mode)
8. DB4-DB7: Data bus lines (used for 4-bit or 8-bit mode)
9. LED+: Backlight positive (if present)
10. LED-: Backlight negative (if present)

Connections

For Arduino

1. Wiring the Display:

   • GND to Arduino GND.
   • VCC to Arduino 5V.
   • VO to the middle pin of a 10k potentiometer (other two pins to 5V and GND).
   • RS to Arduino pin 12.
   • RW to Arduino GND (for write-only mode).
   • E to Arduino pin 11.
   • DB4 to Arduino pin 10.
   • DB5 to Arduino pin 9.
   • DB6 to Arduino pin 8.
   • DB7 to Arduino pin 7.
   • LED+ to Arduino 5V (if applicable).
   • LED- to Arduino GND (if applicable).
