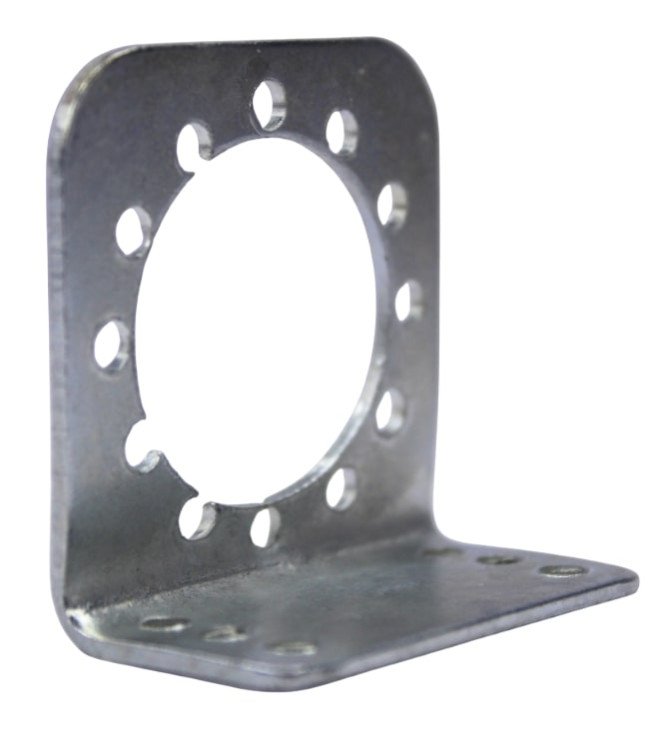

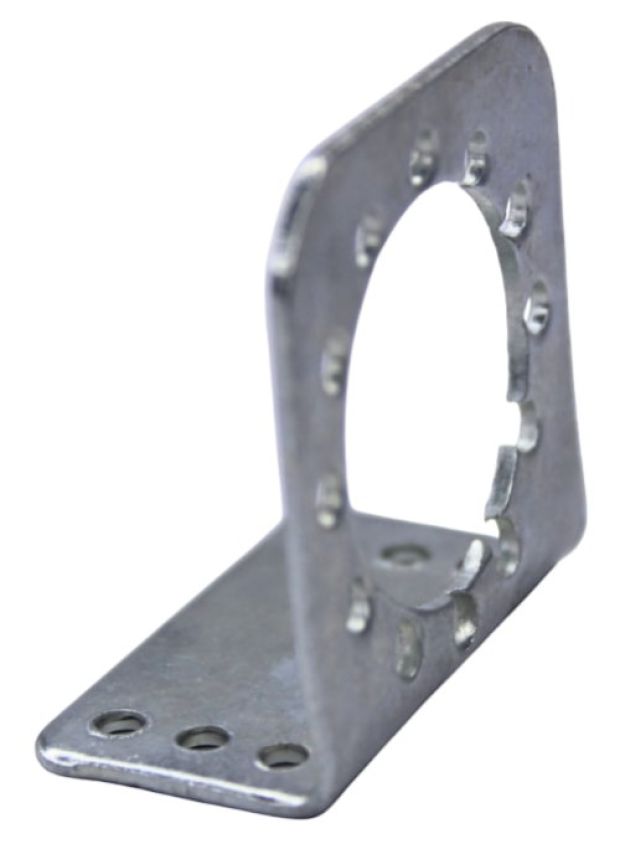

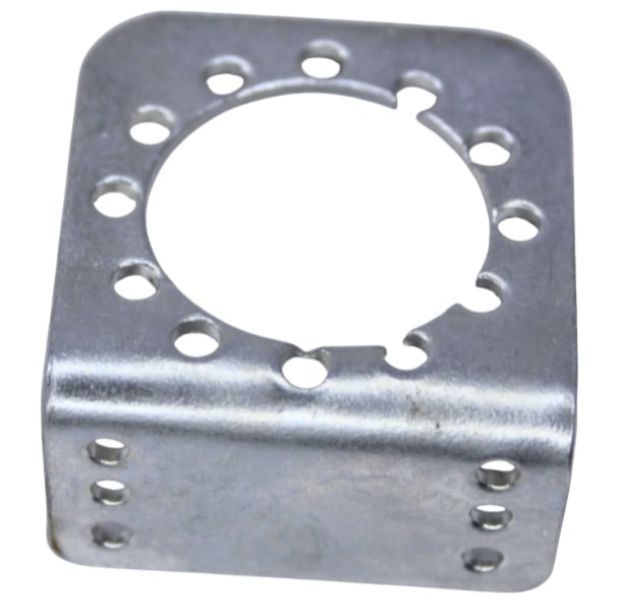

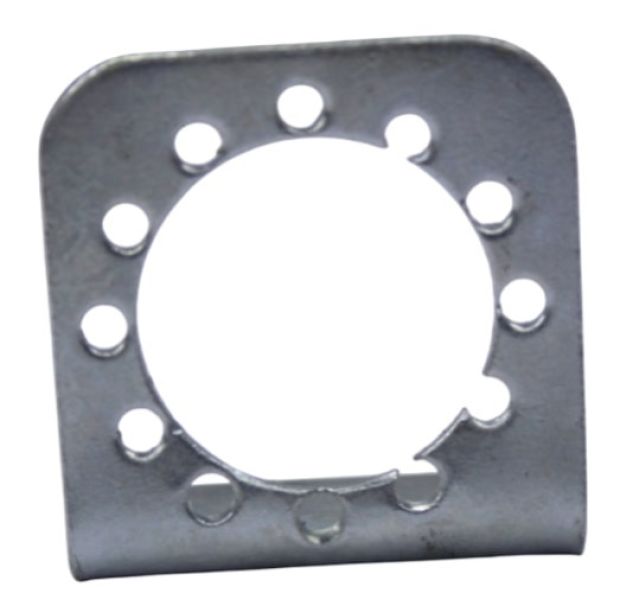

Johnson Gear Motor Mounting Bracket – L Clamp Metal Holder
The Johnson Gear Motor Mount L Clamp is a durable and precisely engineered mounting bracket designed to securely hold Johnson DC geared motors in robotics, automation, and mechanical projects. Made from high-quality metal, this L-shaped bracket ensures a firm and stable motor attachment to chassis, base plates, or other structural components. Durable L-shaped metal mounting clamp designed to securely hold Johnson 12V DC gear motors (60RPM/100RPM/300RPM) in place for robotics, automation, and DIY chassis assemblies.
₹ 19
₹29
29
| : | |
| Made In : | India |
Detailed Description:
This L-shaped motor mounting bracket is designed to fit standard Johnson DC geared motors (typically 60RPM, 100RPM, 300RPM variants). Made from powder-coated or zinc-plated metal, it offers a strong and stable base for motor installation on a robotic chassis, automation frame, or metal body.
Pre-drilled holes on the base and vertical face allow easy mounting of both the motor and the bracket to the chassis using screws or bolts. Ideal for students, developers, and hobbyists building DIY robots, automated platforms, and project models.
Key Features:
-
Sturdy L-shaped bracket for Johnson DC gear motors
-
Made from mild steel or aluminum alloy
-
Rust-resistant coating for long life
-
Pre-drilled holes for easy installation
-
Supports horizontal and vertical motor orientation
-
Compatible with 60RPM, 100RPM, 300RPM Johnson motors
-
Lightweight yet robust – ideal for moving bots
-
Fits securely into standard robot chassis holes
Technical Specifications:
| Parameter | Specification |
|---|---|
| Material | Mild Steel / Aluminum |
| Finish | Powder-coated / Zinc Plated |
| Mount Type | L-Shape (90° Angle) |
| Compatible Motor | Johnson Geared Motors (12V, 60–300 RPM) |
| Mounting Hole Diameter | ~3mm to 4mm |
| Base Dimensions | ~55mm × 35mm (varies by model) |
| Weight | ~35g |
| Color | Black / Silver (based on availability) |
How to Use:
-
Attach the Johnson motor to the vertical face using screws
-
Fix the bracket base to your chassis using nuts/bolts
-
Connect wiring as needed and secure with clamps or zip ties
-
Optionally add vibration-damping washers for motor protection
-
Ensure motor alignment for smooth wheel or gear operation
Applications:
-
2WD/4WD robotic vehicles
-
Automated conveyor systems
-
Line followers & obstacle avoiders
-
Robotic arms & project platforms
-
STEM kits and educational builds
Package Includes:
-
1 × L Clamp Mount Bracket for Johnson Gear Motor
