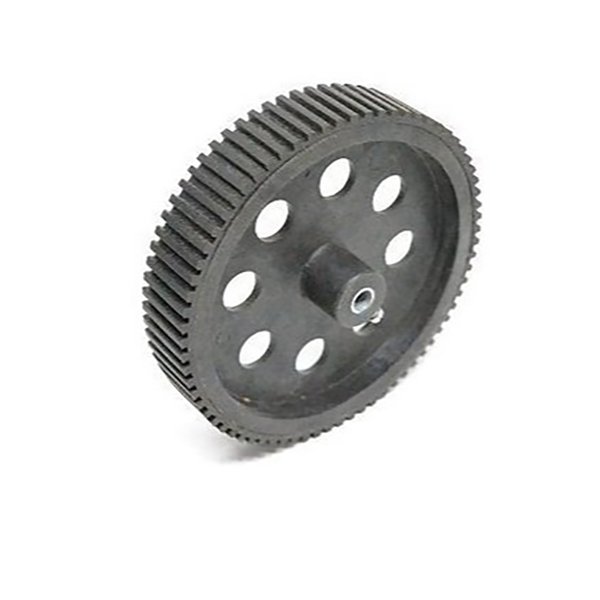

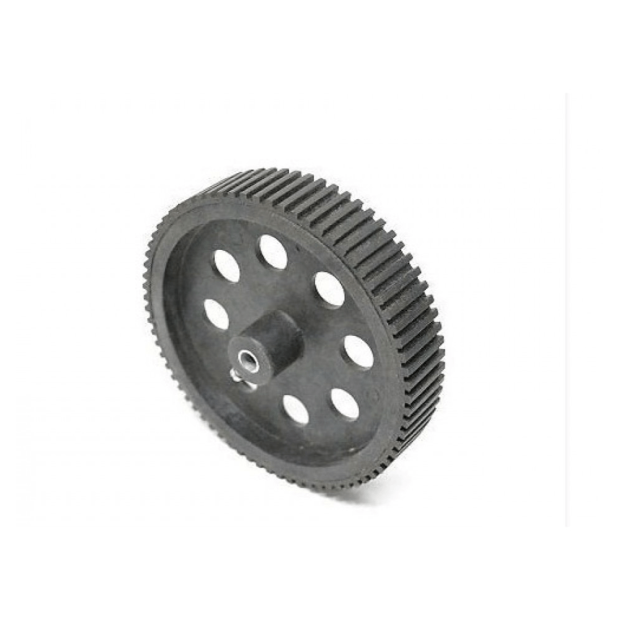

Engineered by Electroboat Technologies Pvt Ltd for high-speed maneuvering and precision robotics, the 10cm x 2cm (100x20mm) Slim Robot Wheel balances large outer diameter speed output with a lightweight, low-friction profile. The 100mm wheel diameter allows your robot to achieve higher linear speed per motor RPM, while the narrow 20mm width significantly reduces rotational drag and steering resistance during zero-radius turns.

Designed with a precision 6mm inner bore, this wheel mounts directly onto standard side-shaft, planetary, and center-shaft DC gear motors. The reinforced center hub includes a metal threaded insert with an inline grub screw, locking firmly onto D-shaped or round motor shafts to ensure reliable power transmission under rapid acceleration and reverse braking.

Key Features and Benefits

• Agile Slim Profile: 20mm width minimizes steering friction, enabling faster turn response and improved battery efficiency.

• Large 10cm Diameter: Maximizes top speed and ground clearance without over-weighting the drivetrain.

• Anti-Skid Rubber Grip: Textured synthetic rubber tire provides reliable traction on smooth tile, wood, carpet, and track surfaces.

• Secure Grub Screw Lock: Side set-screw mechanism firmly locks the wheel onto 6mm motor D-shafts to prevent slipping during sudden turns.

• High-Impact Core: Durable ABS plastic rim structure resists deformation under high rotational stress.

Technical Specifications

• Wheel Outer Diameter: 100 mm (10 cm)

• Tread Width: 20 mm (2 cm)

• Center Bore Diameter: 6 mm

• Locking Mechanism: Side M4/M3 Grub Screw

• Rim Core Material: Reinforced ABS Plastic

• Tire Material: High-Friction Synthetic Rubber

• Color: Black Rim with Black Rubber Tread

• Compatibility: 6mm D-Shaft / Round Shaft DC Geared Motors

How to Use

1. Ensure the output shaft of your 6mm DC motor is clean and free of oil or debris.

2. Align the wheel hub bore with the motor shaft and slide it into place, leaving a 1mm clearance from the motor casing.

3. Position the side grub screw directly over the flat surface of the motor D-shaft.

4. Tighten the grub screw securely using an Allen key or screwdriver to complete installation.

Applications

• High-Speed Line Follower & Maze Solver Robots

• 2WD / 4WD Lightweight Mobile Platforms & AMRs

• Obstacle Avoidance & Sensor-Guided Autonomous Bots

• RC Vehicles & Educational Robotics Kits

• University & STEM Engineering Project Prototypes

Package Includes

• 1 × 10cm x 2cm (100x20mm) Slim Robot Wheel (6mm Bore)
