ESP32-S Cam OV2640 Dual-Core 32-Bit Module with WiFi, Bluetooth, Micro USB CH340 Breakout
This module integrates a dual-core ESP32‑S microcontroller with a 2 MP OV2640 camera sensor, and features Wi‑Fi, Bluetooth, and a built-in CH340 USB-to-serial converter for seamless USB connectivity. It’s a powerful yet compact solution for IoT, vision, and embedded projects.
₹ 899
₹1,150
1,150
| : | |
| Made In : | India |

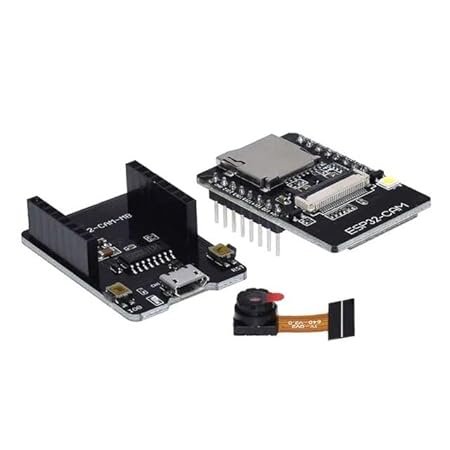

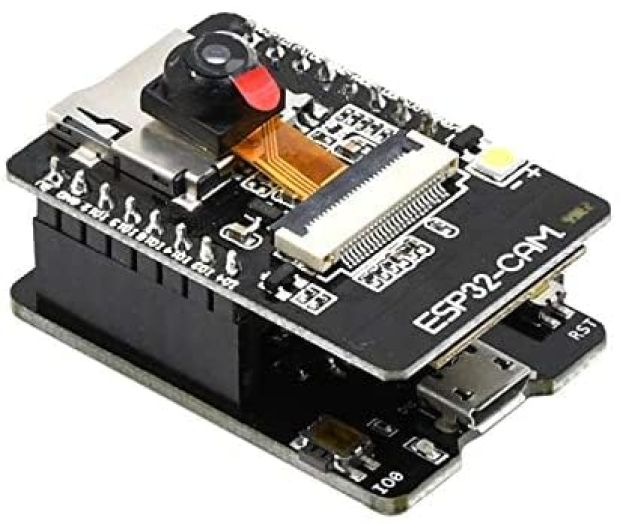

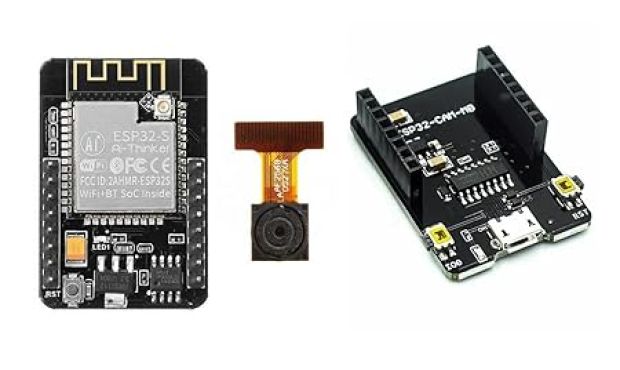

Here's an image of the ESP32‑S CAM OV2640 module with CH340 USB‑serial breakout—a compact board combining a camera, ESP32 microcontroller, and onboard USB programming interface.
Overview
This module is a development board built around the ESP32‑S, featuring:
-
Dual-core LX6 microprocessor (up to 240 MHz, ~600 DMIPS),
-
Wi‑Fi (802.11 b/g/n) and Bluetooth 4.2 + BLE, with PCB antenna,
-
A 2 MP OV2640 camera (supporting JPEG, BMP, grayscale formats),
-
Onboard CH340 USB‑to‑serial interface via micro-USB, for easy programming without external adapters (Amazon, sigmanortec.ro).
Technical Specifications
| Feature | Details |
|---|---|
| Controller | ESP32-S (ESP32-D0WD‑V3), dual-core LX6, up to 240 MHz (~600 DMIPS) (ProBots, mischianti.org, Wikipedia) |
| Memory | 520 KB internal SRAM; typically 4 MB or 8 MB external PSRAM (ProBots) |
| Flash Storage | ~32 Mbit (4 MB) onboard SPI flash (Components101, OpenELAB Technology Ltd.) |
| Camera | OV2640 2 MP with built-in flash; also compatible with OV7670; supports JPEG, BMP, grayscale (Components101, Robu, ProBots) |
| SD Card Slot | microSD support up to 4 GB for local storage (Components101, Robu) |
| Interfaces | UART, SPI, I²C, PWM, ADC/DAC; ~9–16 GPIO pins accessible (Components101, Robu) |
| Wireless Connectivity | Wi‑Fi: 802.11 b/g/n (Station/AP/SoftAP + Station, WPA/WPA2/WPS supported); Bluetooth 4.2 BR/EDR + BLE (Components101, OpenELAB Technology Ltd.) |
| Power & Consumption | 5 V via micro USB or header; current: 180 mA (no flash), 310 mA (with maximum flash brightness); low-power modes: deep sleep ~6 mA, modem sleep ~20 mA, light sleep ~6.7 mA (Components101, ProBots) |
| Security & Protocols | WPA/WPA2, enterprise Wi‑Fi, supports SmartConfig/AirKiss, OTA/FOTA updates, embedded LwIP & FreeRTOS (Amazon, Robu, mischianti.org) |
| Dimensions & Temp Specs | Approx. 40 × 27 mm (height around 12 mm depending on board) (Components101, Robu). Operating: -20 °C to 85 °C; Storage: -40 °C to 90 °C or above depending on source (Components101) |
| USB Interface | CH340 (USB‑to‑serial) integrated, simplifying connection to PC (OpenELAB Technology Ltd., sigmanortec.ro) |
Key Advantages
-
All-in-One Module: Combines camera, ESP32 chip, and USB interface—no need for separate FTDI adapters or wiring.
-
Flexible I/O & Connectivity: Supports Wi-Fi, Bluetooth, camera, SD card, and multiple standard I/O protocols.
-
Efficient Power Modes: Deep-sleep mode (~6 mA) enables battery-centric applications.
-
Rich Software Support: Compatible with Arduino IDE, ESP-IDF, MicroPython; has OTA update capabilities.
-
Compact & Ready-for-Prototyping: Small form factor with convenient USB connectivity makes development fast and easy for embedded IoT, surveillance, and vision-related projects.
Use Cases
This module shines in applications like:
-
DIY surveillance or home security cameras
-
Live streaming or image upload over Wi-Fi
-
Face recognition / QR code scanning
-
Robotics or embedded vision tasks
-
IoT-driven agriculture or automation systems
Let me know if you'd like help with example code (Arduino or ESP-IDF), connectivity scenarios, or selecting accessories to go with your module!
