Detailed Description:

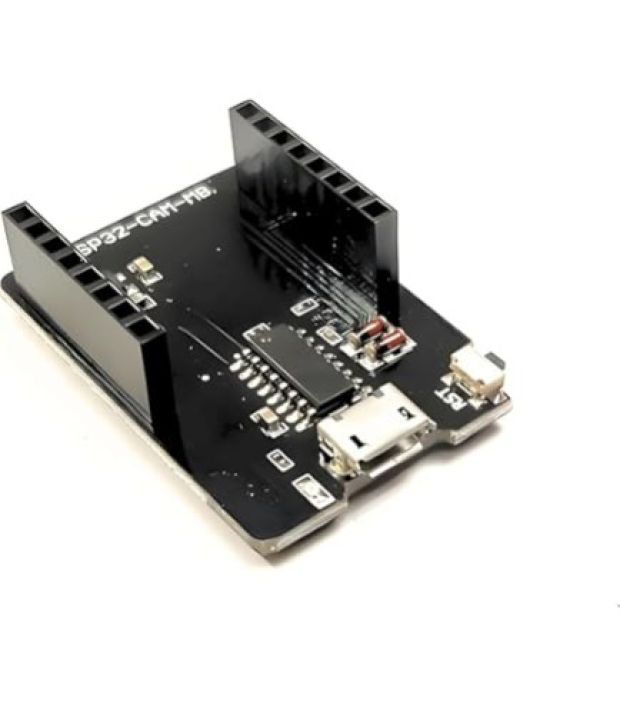

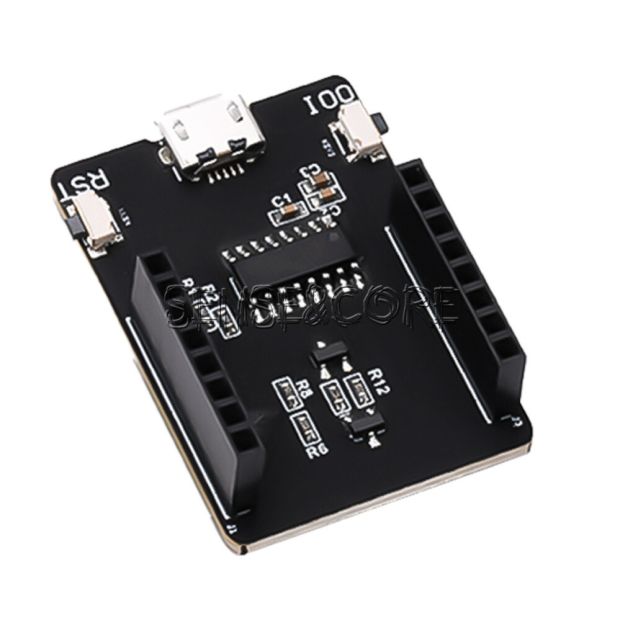

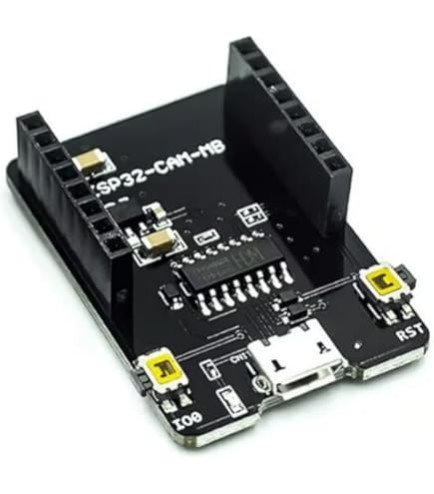

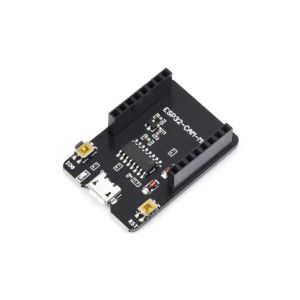

Simplify and accelerate your ESP32-CAM development with the indispensable ESP32-CAM Shield – USB to TTL Programmer Adapter Board. This dedicated programmer module is the perfect companion for your ESP32-CAM WiFi + Bluetooth Camera Module, providing a crucial bridge between your computer and the camera board, making firmware uploading and debugging a seamless process.

The standard ESP32-CAM module lacks a built-in USB port, making direct programming a challenge. This USB to TTL Programmer Adapter Board (often designated as ESP32-CAM-MB and commonly utilizing a reliable CH340G or CP2102 USB-to-serial chip) solves this problem by providing a convenient micro-USB interface. Simply plug your ESP32-CAM module directly onto the header pins of this shield, connect a standard micro-USB cable to your computer, and you're ready to program.

Key features of this ESP32-CAM programmer shield include:

• Integrated USB to Serial Converter: Eliminates the need for external FTDI or CP2102 modules and messy jumper wires.

• Onboard Programming Buttons: Typically includes dedicated IO0 and RST buttons. The IO0 button is essential for putting the ESP32-CAM into "flash mode" (or "download mode") for uploading new firmware, while the RST (reset) button helps in restarting the module after a successful upload or during debugging. Some advanced versions might even feature "auto-boot" functionality, simplifying the flashing process further.

• Stable Power Supply: Powers the ESP32-CAM directly from the USB connection, eliminating the need for a separate power source during programming.

• Direct Plug-and-Play: Designed with header pins that align perfectly with the ESP32-CAM module, ensuring a secure and easy connection.

• Compact Design: Small footprint makes it convenient for desktop development and integration into prototyping setups like breadboards.

This adapter board is an absolute must-have for anyone working with the powerful ESP32-CAM WiFi + Bluetooth Camera Module, whether you're building smart home security systems, creating IoT video streaming projects, or experimenting with AI-powered vision applications. It streamlines the development workflow, making it significantly easier to upload sketches from the Arduino IDE or ESP-IDF.

Don't let the lack of a USB port hinder your ESP32-CAM projects. Invest in the ESP32-CAM Shield – USB to TTL Programmer Adapter Board to unlock the full potential of your camera module.

The ESP32-CAM Shield Adapter is a purpose-built interface board for the ESP32-CAM Wi-Fi + Bluetooth module. It features an onboard CH340 or CP2102 USB-to-TTL chip, allowing seamless code uploads and serial communication via a micro-USB port.

With built-in 5V/3.3V regulation, reset button, and IO0 boot jumper, it allows easy switching between programming and normal operation modes. This adapter saves time and reduces connection errors compared to using external USB-to-serial modules with jumper wires.

It is widely used in IoT cameras, face recognition projects, home surveillance systems, and ESP32-CAM development workflows.

Key Features:

• Plug-and-play USB to TTL adapter for ESP32-CAM

• Onboard CH340 or CP2102 USB-UART chip

• Micro-USB interface for easy programming

• Includes Auto Reset & Flash Mode (IO0 jumper)

• 5V and 3.3V voltage support

• No external jumper wires or FTDI needed

• Compact design – mounts directly with ESP32-CAM

• Fully compatible with Arduino IDE & ESP32 core

Technical Specifications:

How to Use:

1. Insert the ESP32-CAM module into the shield

2. Connect via micro-USB cable to PC

3. Set IO0 to LOW (BOOT mode) via jumper for programming

4. Open Arduino IDE, select correct COM port & board (AI Thinker ESP32-CAM)

5. Upload the sketch. Remove IO0 jumper for normal operation

Applications:

• Programming ESP32-CAM without FTDI or breadboard

• WiFi Camera Projects / Video streaming

• AI face recognition & object detection projects

• Home security or surveillance automation

• Wireless ESP32-CAM prototyping with Arduino IDE

Package Includes:

• 1 x ESP32-CAM Shield USB Programmer Adapter
  (ESP32-CAM module not included – sold separately)
