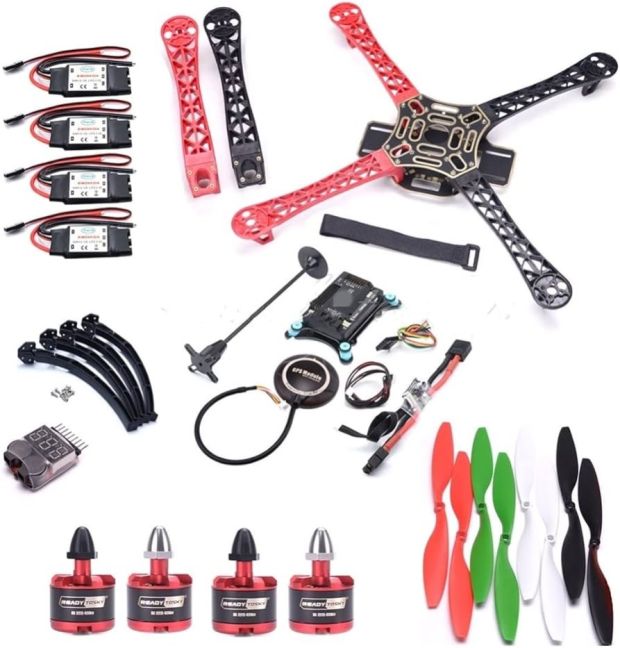

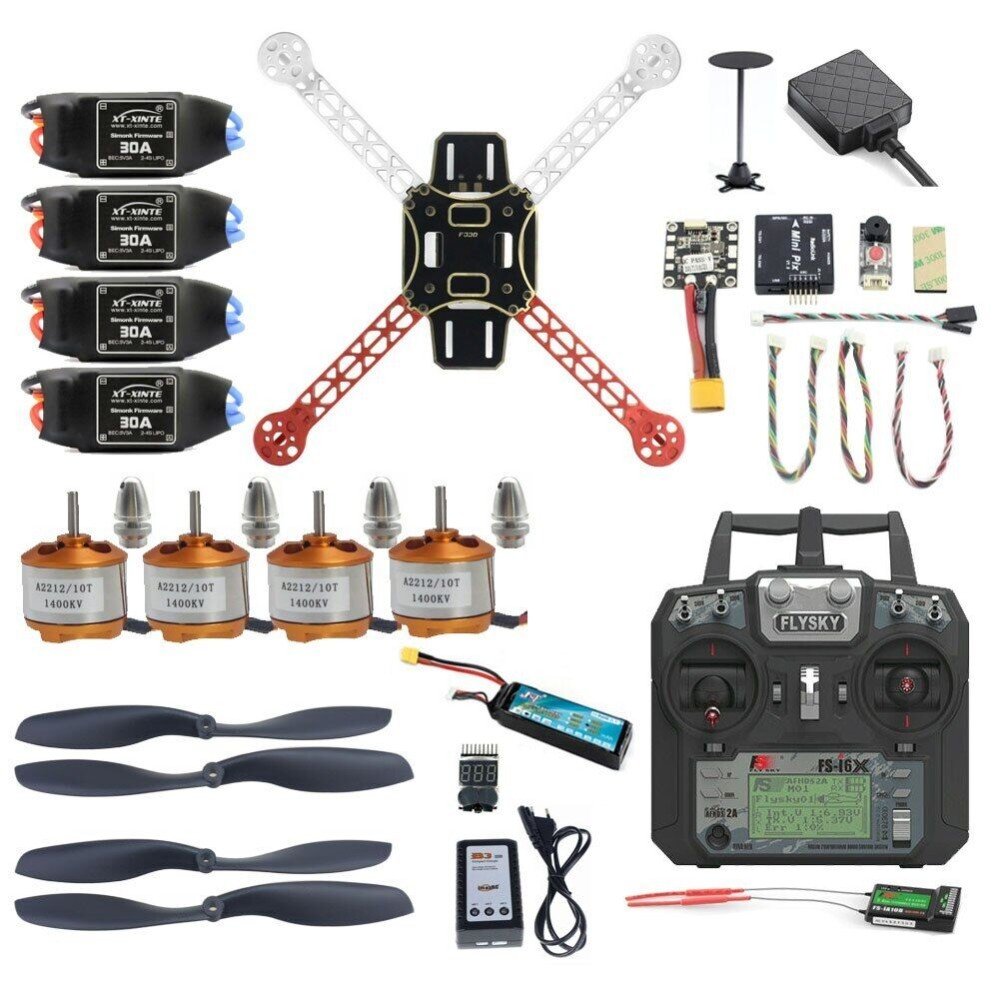

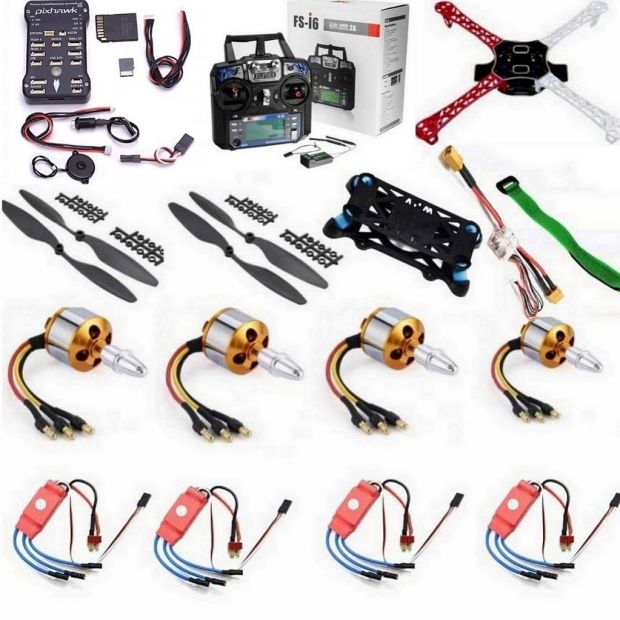

Building and operating a drone involves integrating several critical components, each playing a specific role in the drone's functionality. Here’s a description of the key components typically found in drones:

1. Frame:

• Description: The frame is the structural backbone of the drone, providing the physical support and housing for all other components. It is usually made of lightweight materials like carbon fiber, plastic, or aluminum.
• Function: Supports and protects components, ensures structural integrity, and often includes mounting points for motors, flight controllers, and batteries.

2. Motors:

• Description: Drones typically use brushless DC motors (BLDC), which are efficient and offer good performance. These motors drive the propellers to generate thrust.
• Function: Provide the rotational force needed to lift and maneuver the drone. The number and configuration of motors (e.g., quadcopter with four motors) affect the drone's stability and control.

3. Propellers:

• Description: Propellers are attached to the motors and are responsible for generating lift and thrust. They come in various sizes and designs, depending on the drone’s purpose and motor specifications.
• Function: Convert the rotational motion from the motors into aerodynamic lift, enabling the drone to fly and maneuver.

4. Electronic Speed Controllers (ESCs):

• Description: ESCs regulate the speed of the drone's motors. They are typically connected between the flight controller and the motors.
• Function: Control the amount of power supplied to each motor, allowing for precise adjustments to speed and direction, which is crucial for stable flight and maneuvering.

5. Flight Controller:

• Description: The flight controller is the central brain of the drone. It processes input from various sensors and controls the ESCs to stabilize and control the drone.
• Function: Manages flight stability, navigation, and control based on inputs from sensors like accelerometers, gyroscopes, and sometimes GPS.

6. GPS Module:

• Description: A GPS module provides the drone with location data and altitude information.
• Function: Enables features like autonomous flight, waypoint navigation, return-to-home (RTH), and geofencing. It helps the drone maintain its position and navigate based on geographic coordinates.

7. Battery:

• Description: The battery supplies power to all the drone’s electronic components and motors. Commonly used types include Lithium-Polymer (LiPo) batteries.
• Function: Provides the necessary electrical power for flight. The battery’s capacity (measured in mAh) determines the drone's flight time.

8. Transmitter and Receiver:

• Description: The transmitter is the handheld device used by the pilot to control the drone, while the receiver is mounted on the drone to receive control signals.
• Function: Facilitates communication between the pilot and the drone, allowing for manual control of the drone’s movements and settings.

9. Camera:

• Description: Drones can be equipped with cameras for capturing video and photos. The camera may be integrated into the drone or mounted externally.
• Function: Provides aerial footage and images. Some drones use high-definition cameras or even 4K cameras for professional photography and videography.

10. Gimbals:

• Description: Gimbals are stabilizing mounts used to keep the camera steady during flight.
• Function: Compensate for the drone's movements and vibrations, ensuring that the camera footage remains smooth and stable.

11. Sensors:

• Description: Additional sensors may include barometers (for altitude), magnetometers (for compass data), ultrasonic sensors (for obstacle avoidance), and infrared sensors.
• Function: Enhance the drone’s ability to navigate, maintain altitude, and avoid obstacles. Sensors provide critical data to the flight controller for improved flight performance.

12. Telemetry System:

• Description: Telemetry systems allow for real-time data transmission between the drone and the ground station.
• Function: Transmit information such as battery voltage, GPS location, altitude, and other flight data. This data helps in monitoring and controlling the drone during flight.

13. Receiver (RX) and Transmitter (TX) Module:

• Description: The RX and TX modules communicate wirelessly to send and receive control signals and telemetry data.
• Function: The TX module is part of the remote control used by the pilot, and the RX module is installed on the drone to receive these commands.

14. Firmware:

• Description: Firmware is the software that runs on the flight controller and other components.
• Function: Provides the programming needed for the flight controller to interpret inputs, manage sensor data, and control the drone’s flight.

Summary:

• Frame: Structural support for the drone.
• Motors: Provide thrust for flight.
• Propellers: Generate lift and thrust.
• ESCs: Regulate motor speed.
• Flight Controller: Manages flight stability and control.
• GPS Module: Provides location and navigation data.
• Battery: Supplies power to the drone.
• Transmitter/Receiver: Facilitate control and communication.
• Camera: Captures aerial imagery and video.
• Gimbals: Stabilize camera for smooth footage.
• Sensors: Enhance navigation and obstacle avoidance.
• Telemetry System: Transmits flight data in real-time.
• RX/TX Module: Wireless communication between the pilot and drone.
• Firmware: Software that controls the flight controller and other components.

These components work together to ensure the drone's stable flight, efficient operation, and the ability to perform its intended tasks, whether it's aerial photography, surveying, or recreational flying.
