Product Description (Detailed):

Unleash the potential of your robotics and automation projects with our versatile 100 RPM Straight Single Shaft BO Motor, a reliable and cost-effective gear motor designed for optimal performance in diverse applications. This compact DC geared motor, often referred to as a "Battery Operated" motor due to its efficiency at lower voltages, offers a compelling balance of speed and substantial torque, making it ideal for everything from small mobile robots and DIY smart cars to educational platforms and intricate automation systems. Operating typically within a 3-12V DC range, this motor's integrated plastic gearbox ensures smooth power transmission and features a straight single shaft with a common 5.5mm diameter, compatible with a variety of wheels like 69mm or 87mm diameter options, simplifying integration into your designs. Its lightweight construction, pre-drilled mounting holes, and inherent low noise operation contribute to its user-friendliness, while the injection-molding process for its robust plastic gears provides durability, shock absorption, and resistance to corrosion with minimal maintenance. Engineered for consistent performance, this 100 RPM BO motor delivers a rated torque of approximately 1 kg-cm, alongside a low no-load current of 40-180mA, ensuring energy efficiency for battery-powered projects. Whether you're a robotics enthusiast, a student, or a professional developer, this motor provides the precise motion control and reliable power required for your innovative creations.

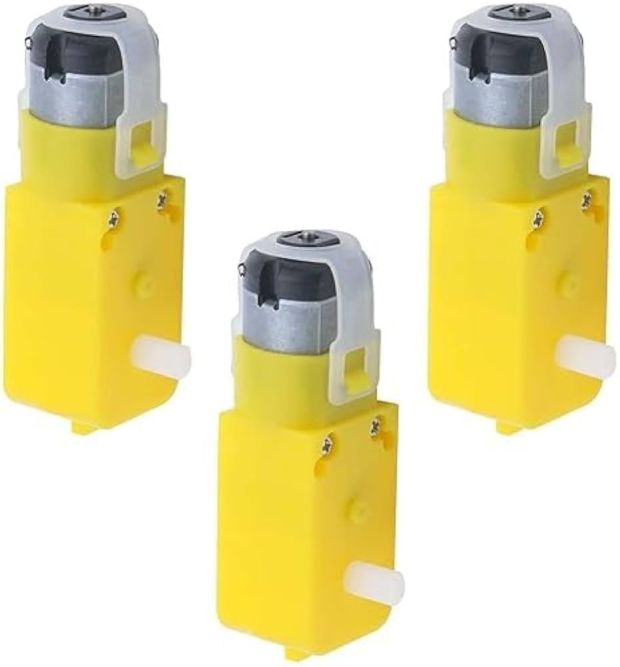

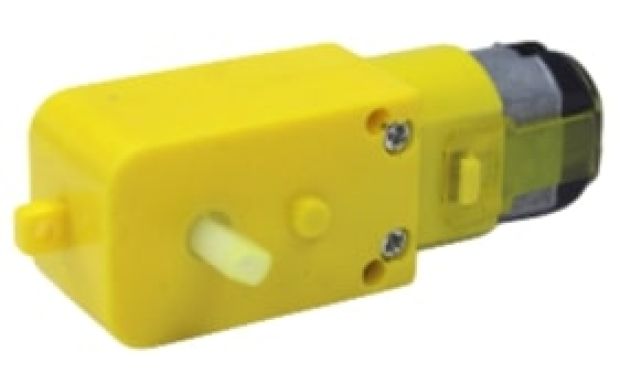

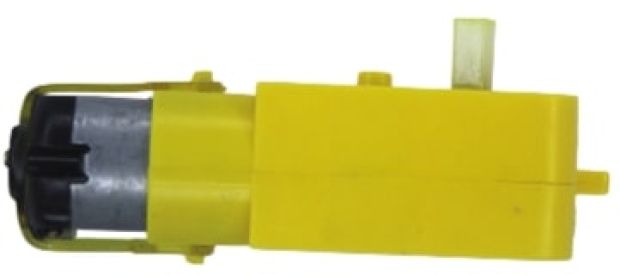

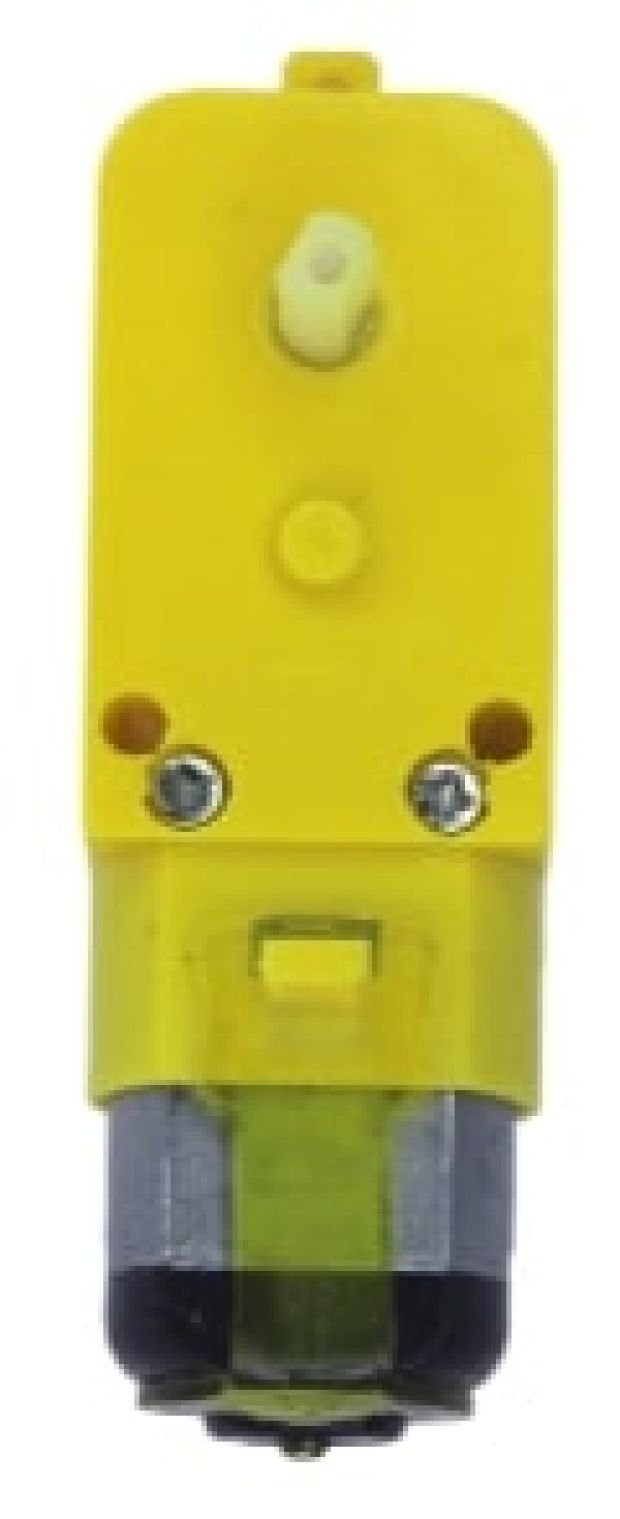

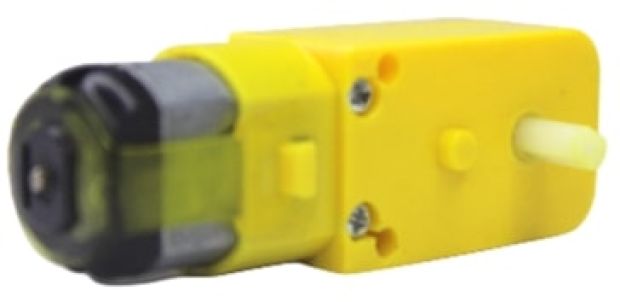

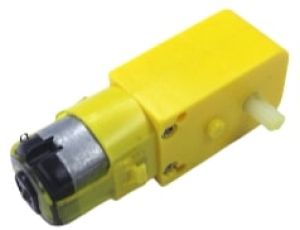

The 100 RPM BO Motor (Straight Single Shaft) is a compact, plastic-geared DC motor designed specifically for DIY electronics, robotics, and embedded systems projects. It provides a good balance between torque and speed, making it ideal for beginner and educational robots such as line followers, obstacle avoiders, and automated carts.

With a 12V operating voltage, this motor delivers approximately 100 rotations per minute under no load, suitable for lightweight tasks. Its single straight shaft allows easy attachment of compatible robot wheels, pulleys, or rotary encoders.

Key Features:

• 100 RPM output at 12V DC for controlled movement

• Straight single shaft design for gear compatibility

• Operates on DC voltage from 6V to 12V

• Lightweight and easy to mount on robotic chassis

• Perfect for line-followers, obstacle-avoidance robots, and other projects

• Compatible with wheels, encoders, and motor drivers like L298N, L293D

Technical Specifications:

How to Use:

1. Connect the motor wires to a DC power supply (battery pack or driver module).

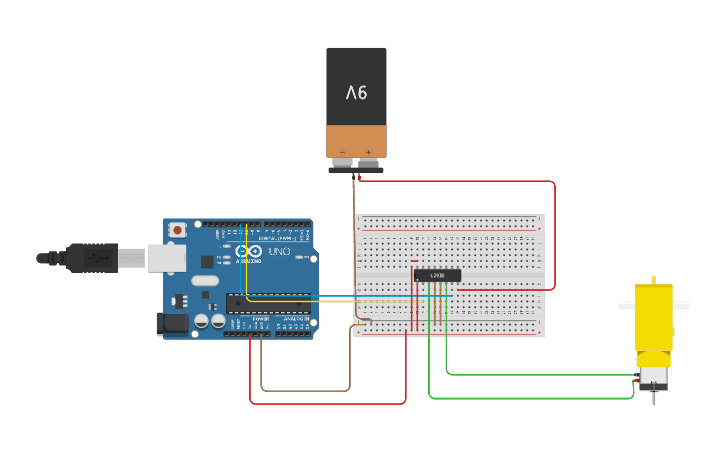

2. Control speed and direction using L293D/L298N motor driver module with Arduino or Raspberry Pi.

3. Attach compatible robot wheels or pulleys to the shaft.

4. Mount onto robot chassis using screws through side holes.

Reverse polarity to change motor direction.

Applications:

• Line follower robots

• Obstacle avoiding robots

• Arduino robotics kits

• Automated trolleys and carts

• DIY conveyor belt systems

• Motor control learning projects for students

Package Includes:

• 1 × 100 RPM BO Motor – Straight Single Shaft
