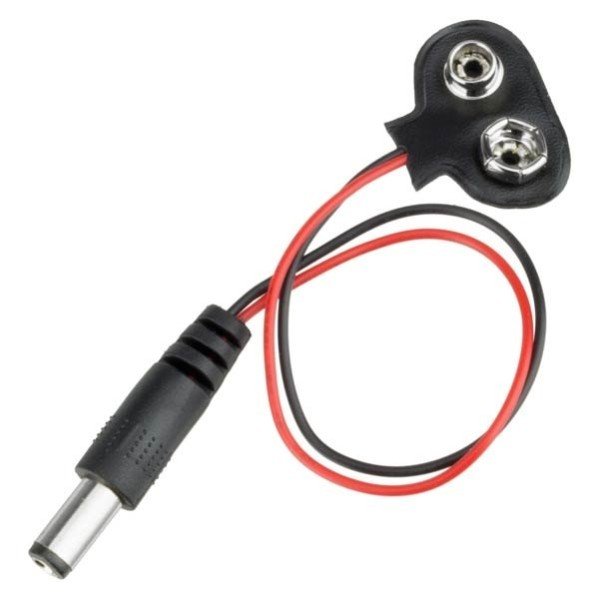

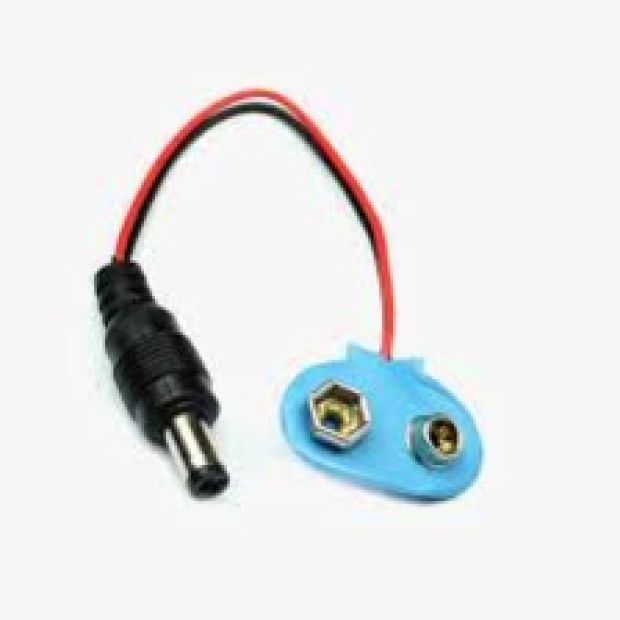

A 9V battery clip with a DC jack is a component typically used to connect a 9V battery to an electronic circuit that requires a 9V power input. It combines a standard battery clip for a 9V battery with a DC (direct current) jack, making it easy to connect the power source to your project.

Key Components:

1. 9V Battery Clip: This is a connector that attaches to a 9V battery, typically consisting of two leads (red for positive and black for negative) that clip onto the terminals of the battery. The clip is commonly used to securely connect the battery to a circuit or power input.

2. DC Jack: The DC jack is a standard connector used to plug into electronic devices that require a DC voltage. The jack typically has a cylindrical shape with a central pin for the positive connection and the outer shell for the negative (ground) connection. Common sizes include 5.5mm x 2.1mm or 5.5mm x 2.5mm.

Features of a 9V Battery Clip with a DC Jack:

• Easy Power Connection: This component allows you to power a circuit from a 9V battery and connect it to a device using a DC input jack (often used with breadboards, development boards like Arduino, or other custom circuits).
• Voltage Compatibility: A 9V battery typically provides a nominal voltage of around 9V, which is used in many hobbyist projects, small electronic circuits, and sensors.
• Versatility: It’s useful in cases where you want to easily connect or disconnect power from a project, especially in portable designs.

Typical Uses:

• Arduino Projects: Many Arduino boards, such as the Arduino Uno, can be powered using a 9V battery. This clip allows you to easily connect the 9V battery to the DC jack of the Arduino board.
• Prototyping Circuits: During prototyping, this type of battery clip with a DC jack is handy for quick connections when testing circuits on a breadboard or custom-made designs.
• Portable Devices: In portable electronics, a 9V battery is often used to power sensors, small motors, or microcontrollers in situations where a stable, rechargeable power supply is not available.

How It Works:

1. Attach the 9V battery to the clip (red for positive, black for negative).
2. Plug the DC jack (with its positive and negative connections) into your circuit or device.
3. The power from the battery will flow through the jack to your circuit, supplying the 9V DC voltage needed.

Advantages:

• Convenience: The DC jack allows for easy power connection and disconnection, especially in projects where you want to avoid hard-wiring the power.
• Portability: Using a 9V battery means you can make a portable, battery-powered device that doesn’t require an external power outlet.
• Versatility: This component can be used in a wide range of hobby electronics, educational kits, and small gadgets.
