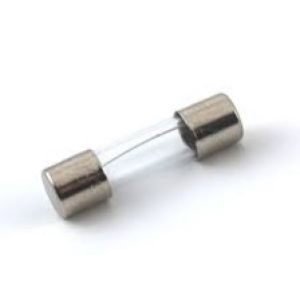

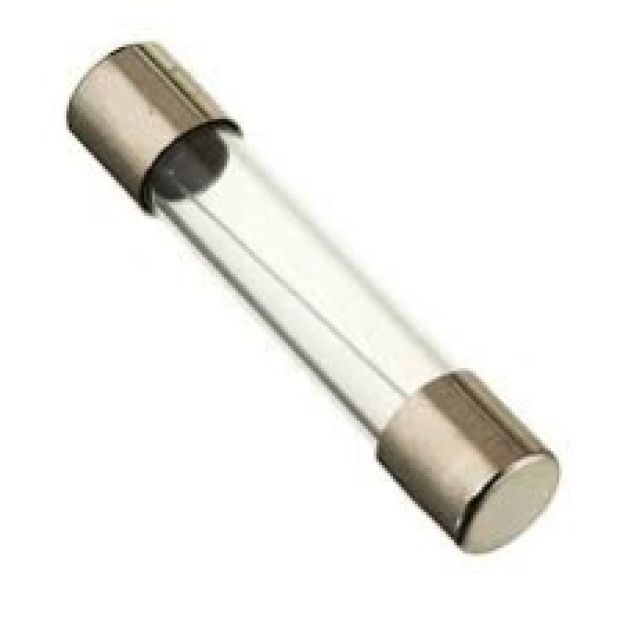

The 5 Amp 250V Glass Fuse (5x20mm) is a type of fuse commonly used for protecting electrical circuits and components from overcurrent or short-circuit conditions. The glass fuse is a simple yet effective safety component that melts when the current exceeds a safe level, thereby disconnecting the circuit and preventing damage to other electrical components.

Here’s a detailed breakdown of the key specifications, function, and applications of this fuse:

Key Specifications:

1. Current Rating:

   • 5 Amp: This fuse is rated to carry a 5 ampere (A) current. If the current flowing through the fuse exceeds 5A, the fuse will blow (the wire inside the fuse will melt), disconnecting the circuit.

2. Voltage Rating:

   • 250V: The fuse is rated for a maximum operating voltage of 250 volts (AC or DC). This means the fuse can be used in circuits operating up to 250V without risk of failure.

3. Size:

   • 5x20mm: The dimensions of the fuse are 5mm in diameter and 20mm in length, which is a standard size for small, low-power fuses. This is a glass tube fuse, and its clear glass construction allows visual inspection of the fuse element.

4. Fuse Type:

   • Glass Fuse: This type of fuse is housed in a glass tube, which allows the internal fuse wire to be visible. Glass fuses are commonly used in a variety of consumer electronics and home appliances.

5. Blow Type:

   • Fast Blow or Slow Blow: Glass fuses can be either fast-blow (which blows quickly when an overcurrent occurs) or slow-blow (which tolerates brief current surges before blowing). The specific type would depend on the application requirements.
     • Fast-Blow fuses are used in circuits that require quick protection, such as in sensitive electronic devices.
     • Slow-Blow fuses are used in devices that may experience temporary current surges, such as motors or transformers.

How the Fuse Works:

• Overcurrent Protection: The fuse contains a thin metal wire or strip inside the glass tube. When the current exceeds the rated limit (5A in this case), the wire heats up and melts, breaking the circuit. This stops the flow of current and protects the circuit from damage.

• Fusing Action:

  • If the current flowing through the fuse is too high (greater than 5 amps), the fuse will heat up due to the increased electrical resistance in the metal wire inside the fuse. Once the wire reaches a temperature high enough to melt, it will break the circuit.
  • After blowing, the fuse needs to be replaced to restore circuit functionality.

Applications of the 5 Amp 250V Glass Fuse:

1. Home Appliances:

   • Glass fuses are commonly used in small household appliances such as toasters, coffee machines, and microwave ovens for overcurrent protection.

2. Consumer Electronics:

   • Used in TVs, radios, computers, and other electronic devices to protect against sudden surges of electrical current.

3. Power Supplies:

   • In AC-DC power supplies or chargers, a fuse is often employed to protect the internal circuits from overloads.

4. Industrial Equipment:

   • Glass fuses are used in some industrial equipment for protection against short circuits and overloads in low-voltage circuits.

5. Automotive:

   • Some vehicle electronics (like lights, sensors, and entertainment systems) might use these types of fuses.

6. LED Lighting:

   • Protection of circuits in LED lighting systems can also involve glass fuses to protect from overcurrent conditions.

Advantages of Glass Fuses:

1. Visual Inspection: The clear glass tube allows for easy visual inspection to check whether the fuse has blown (the internal fuse wire will be visibly broken).

2. Compact and Simple: Glass fuses are small, inexpensive, and simple to install. Their compact design makes them suitable for low-power applications in tight spaces.

3. Reliable Overcurrent Protection: They provide reliable protection against short circuits and overloads in many consumer electronics and industrial devices.

Limitations:

1. Fragility: Glass fuses are relatively fragile compared to other fuse types, such as ceramic or polymer fuses. They may break upon impact or under high temperatures.

2. Not Suitable for High-Power Circuits: Glass fuses are generally designed for lower power applications and are not suitable for circuits with very high currents or voltages.

Conclusion:

The 5 Amp 250V Glass Fuse (5x20mm) is a widely used and effective overcurrent protection device that is ideal for a variety of low to medium-power applications. It protects electrical circuits from damage due to overcurrent conditions, ensuring safety and preventing potential hazards in devices such as home appliances, electronics, and power supplies. When the fuse blows, it must be replaced to restore functionality to the circuit. If you are replacing a blown fuse, always make sure to use one with the same voltage and current rating to ensure proper protection.
