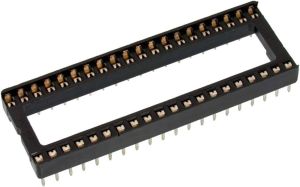

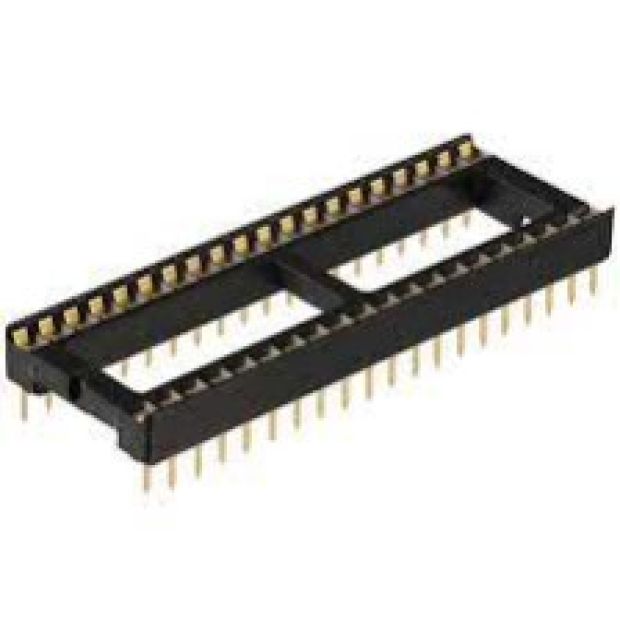

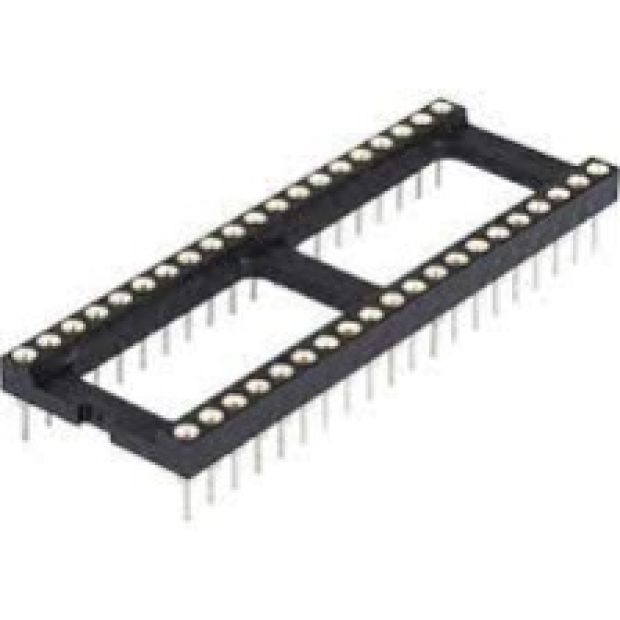

A 40-pin IC base is a type of socket used for integrated circuits (ICs) that have 40 pins. It allows you to easily insert and remove ICs without soldering them directly onto a circuit board. This can be very useful for testing, replacing, or prototyping with different ICs.

Key Features and Details:

1. Pin Count:

   • The 40-pin designation refers to the number of pins in the IC. These pins are the electrical connection points through which the IC communicates with the circuit.

2. IC Compatibility:

   • Typically used for DIP (Dual In-line Package) ICs, where the pins are arranged in two rows of 20 each.
   • The IC base is designed to fit ICs that have a 40-pin DIP configuration.

3. Material:

   • IC bases are usually made of plastic (such as ceramic or Nylon) with metal contacts inside, which are used to connect to the pins of the IC.

4. Function:

   • The base provides a removable socket for the IC, ensuring that you can swap out components without having to solder or desolder.
   • Easier for prototyping: Helps you easily test and replace ICs, reducing the need for soldering and the risk of damaging components.
   • Prevents damage: Using an IC base can prevent damage to sensitive ICs during installation or removal, and protect the PCB (printed circuit board) from the heat and wear associated with soldering.

5. Pin Layout:

   • The pins are typically numbered from 1 to 40 (often starting from one corner), with odd-numbered pins on one side and even-numbered pins on the other.
   • The IC base usually has a key notch (or dot) that indicates the orientation of the IC, so the component is inserted correctly.

6. Use Cases:

   • Prototyping: Perfect for prototyping projects where ICs might need to be replaced or upgraded frequently.
   • Testing: Allows for easy swapping of ICs when troubleshooting or testing in electronic circuits.
   • Repairs: Used in repairs where ICs may need to be replaced, such as in older devices or for specific functionality in a design.

7. Sizes and Types:

   • While the 40-pin variant is popular, you can also find IC bases in other sizes, such as 8-pin, 16-pin, and 28-pin, depending on the IC being used.

8. Installation:

   • The IC base is typically soldered onto a PCB.
   • Once soldered, the IC can be inserted into the base, making future replacements and testing much easier.

Advantages of Using an IC Base:

• Simplifies IC replacement: ICs can be swapped out quickly without the need for soldering or desoldering, which is particularly useful during testing.
• Preserves the IC: Prevents wear on the IC's pins and the PCB from multiple soldering cycles.
• Better for Prototyping: Perfect for use in development, testing, and educational projects.

Example Uses:

• Microcontroller-based projects: Where you frequently use ICs that need to be tested or replaced.
• Signal processing ICs: For use in audio, video, or other signal processing electronics.
• Power management ICs: For applications involving voltage regulation, power conversion, etc.

Conclusion:

A 40-pin IC base is a helpful tool in electronics, making it easier to handle and replace 40-pin DIP ICs without causing damage. It is commonly used for prototyping, testing, and repairing circuits involving ICs, and it provides a reliable and convenient way to ensure your ICs remain safely removable while facilitating ease of use in the design process.
