The Electroboat 2.5cm Width 60cm Length Rubber Track Belt is engineered for mobile robotics builders who need superior traction, stability, and obstacle-climbing capabilities. Unlike standard wheels that easily slip on loose sand, gravel, or inclined surfaces, continuous tank treads distribute the robot’s weight over a wider surface area, providing maximum ground contact and slip resistance.

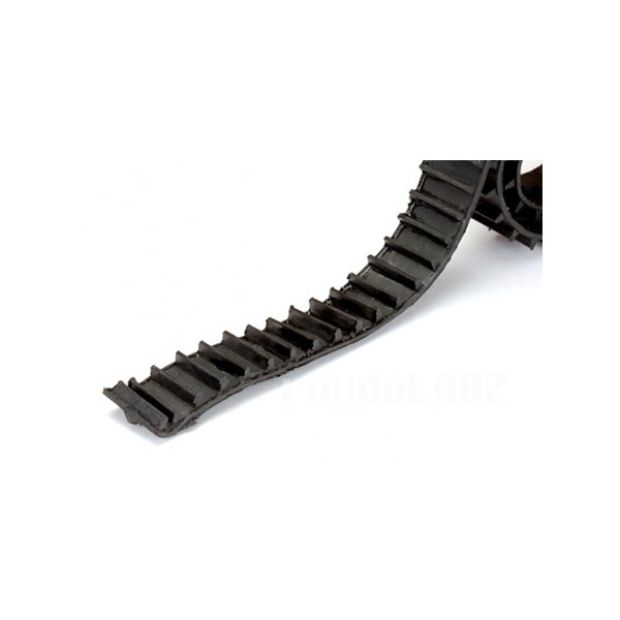

Manufactured from high-grade, durable synthetic rubber, this continuous loop track belt measures 25mm in width and 600mm in total loop length. The outer surface features aggressive, non-skid tread blocks for all-terrain grip, while the inner surface contains molded timing lugs designed to mesh securely with 2.5cm wide pulley drive wheels or sprocket hubs without slipping off track.

Key Features and Benefits

• Continuous Rubber Loop (60cm Perimeter): High elasticity and tensile strength prevent stretching or tearing during heavy loads.

• 2.5cm (25mm) Extra-Grip Surface: Broad contact area enhances stability, preventing tipping on inclines and rough terrain.

• Internal Drive Lugs: Molded inner teeth interface cleanly with drive pulleys to prevent belt slippage during sudden acceleration or reverse rotation.

• High All-Terrain Traction: Outer tread design easily grips tile, concrete, grass, sand, and wood.

• Modular Chassis Compatibility: Ideal for building custom 2-track or 4-track robot tank rovers, snowplow models, and mini conveyor belts.

Technical Specifications

How to Use

1. Wrap the rubber track belt around two parallel pulley wheels (one driving pulley connected to a motor shaft and one passive idler wheel).

2. Adjust the center distance between the two wheels to ensure proper tension on the 60cm track loop (avoid over-stretching or leaving excessive slack).

3. Align the internal drive lugs of the track belt with the teeth/grooves of your drive pulley.

4. Power up your motors and test the tension during turn maneuvers.

Applications

• DIY All-Terrain Caterpillar Tank Rovers & Exploration Vehicles

• Obstacle-Climbing & Stair-Ascending Mobile Robotics Projects

• Conveyor Belt Systems & Miniature Factory Automation Models

• STEM, University Engineering Competitions, and Prototyping Projects

• Wireless RC Tank Platforms & Heavy Duty Outdoor Rovers

Package Includes

• 1 x 2.5cm Width 60cm Length Rubber Track Belt
