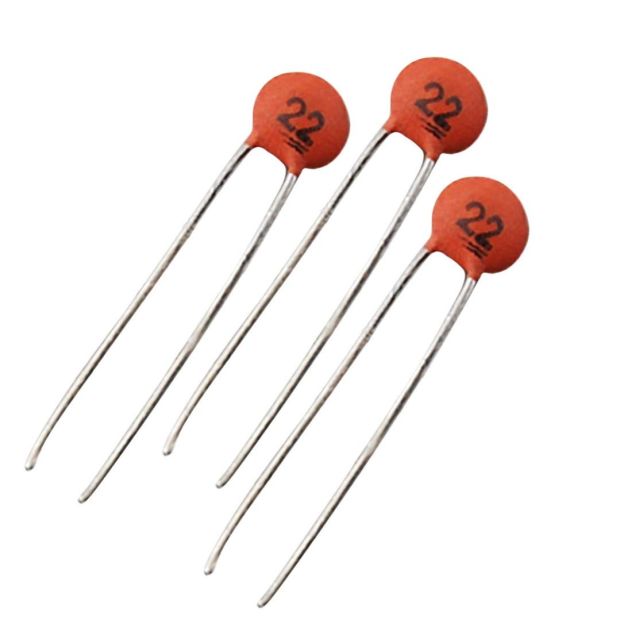

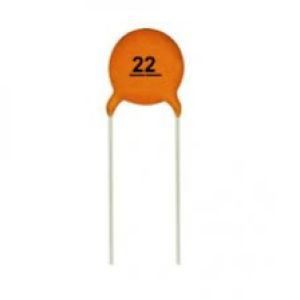

A 22pF capacitor is a ceramic capacitor (or potentially other types, depending on the application) with a capacitance of 22 picofarads (pF). It is used in a wide range of electronic circuits for applications that require a specific capacitance value. The "pF" stands for picofarads, where 1 pF = 10^-12 farads.

Key Features of a 22pF Capacitor:

1. Capacitance Value: 22 picofarads (pF), which is a relatively small capacitance value, commonly used in high-frequency or low-pass filtering applications.

2. Size and Type: Typically, the 22pF capacitor can come in various types like:

   • Ceramic Capacitors: These are the most common type for values in the picofarad range. They are often used in high-frequency circuits, such as RF circuits, or in signal filtering applications.
   • Film Capacitors: Though less common for 22pF values, they may be used in precision timing circuits.
   • Tantalum Capacitors: These are more likely to be used in higher capacitance values but could be found in precision applications.

3. Voltage Rating: The voltage rating typically indicates the maximum voltage the capacitor can safely handle. For a 22pF capacitor, the voltage rating can vary depending on the type and manufacturer but commonly ranges from 25V to 50V for general-purpose use. For specialized applications, higher voltage ratings may be available.

4. Tolerance: The tolerance of a capacitor defines how much the actual capacitance can deviate from its rated value. For example, a 22pF capacitor with a ±10% tolerance will have a capacitance between 19.8pF and 24.2pF.

Common Uses of a 22pF Capacitor:

1. Decoupling and Filtering:

   • Decoupling capacitors are often used in power supply circuits to reduce noise or stabilize voltage.
   • Filtering in high-frequency circuits, especially in RF (radio frequency) or communication applications, where small capacitances are necessary to filter out high-frequency signals or noise.

2. Oscillators and Timing Circuits:

   • Oscillator circuits often use small-value capacitors like 22pF for setting frequency, especially in crystal oscillator circuits. For example, a 22pF capacitor might be used alongside a crystal oscillator to determine the oscillation frequency.
   • Common in RC (Resistor-Capacitor) circuits for timing applications where precise time delays or frequency control are required.

3. Crystal Oscillator Circuits:

   • In many circuits, a 22pF capacitor is used in conjunction with crystals (like the 16 MHz crystal) in microcontroller or communication circuits to stabilize the frequency of oscillation.

4. Coupling and Bypass Applications:

   • Coupling capacitors allow AC signals to pass while blocking DC components. The small value of 22pF can be used in high-frequency signal coupling to prevent unwanted low-frequency signals from passing through.
   • Bypass capacitors can be used to prevent unwanted oscillations or noise in high-frequency or RF circuits.

5. RF and Communication Circuits:

   • High-frequency circuits often use capacitors of low values like 22pF to tune circuits or block certain frequency ranges while allowing others to pass. They are commonly found in radio-frequency (RF) designs, such as in AM or FM radio receivers, antenna tuning, and signal mixing.

Example Circuit:

1. Crystal Oscillator Circuit:
   In a crystal oscillator circuit for a microcontroller or communication device, the 22pF capacitor may be used in parallel or series with the crystal to define the operating frequency. This ensures stable oscillation.

2. Low-pass Filter: A 22pF capacitor could be used in combination with resistors to create a low-pass filter circuit that blocks high-frequency noise from passing through to sensitive components.

Characteristics to Keep in Mind:

1. Temperature Coefficient: The capacitance of some types of capacitors, such as ceramic capacitors, can change with temperature. For circuits requiring precise capacitance values, consider the temperature coefficient of the capacitor.

2. Type of Capacitor: The type of capacitor (e.g., ceramic, film, etc.) affects its behavior in different applications. Ceramic capacitors, for example, tend to have higher tolerances compared to other types.

3. Voltage Rating: Ensure that the voltage rating of the capacitor exceeds the operating voltage of the circuit in which it will be used.

Conclusion:

A 22pF capacitor is commonly used in high-frequency, timing, and filtering applications. It plays a critical role in fine-tuning circuits, especially in the realm of RF electronics, microcontroller crystals, and signal conditioning. The small capacitance is particularly effective for controlling high-frequency signals and stabilizing circuits.
