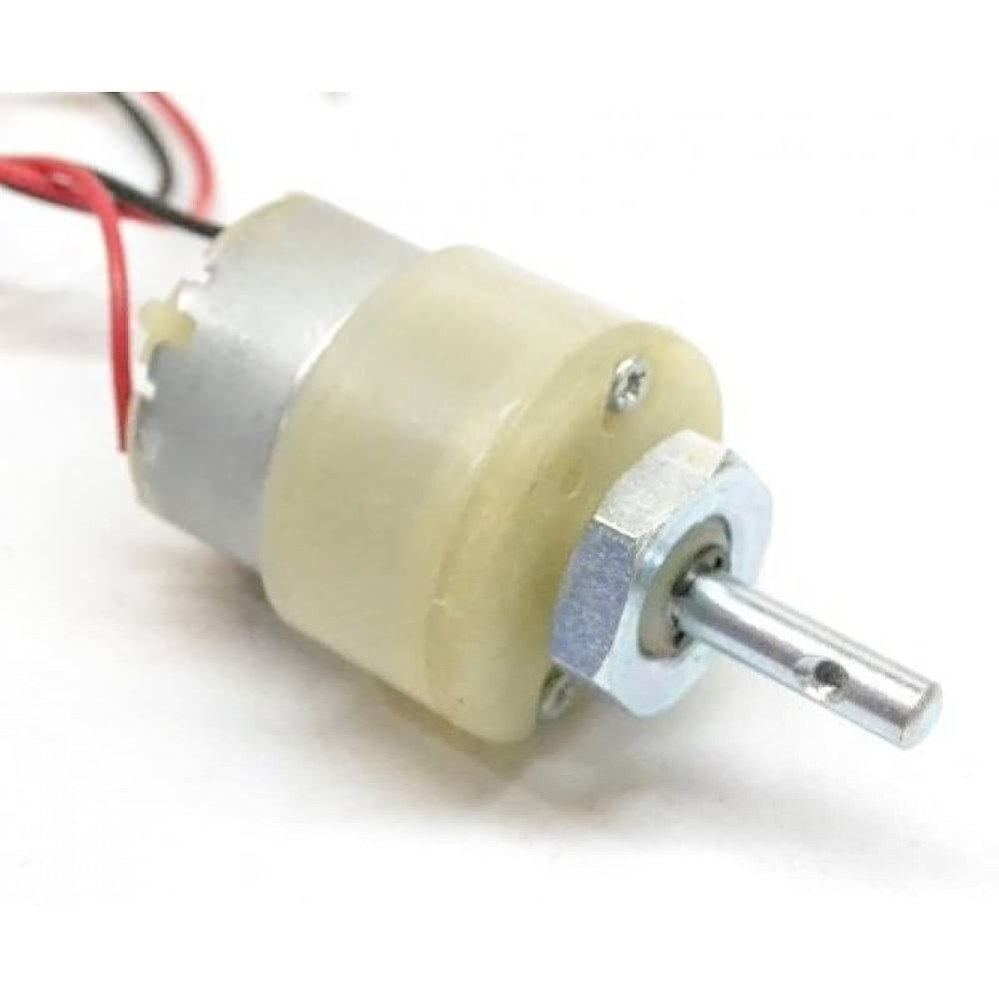

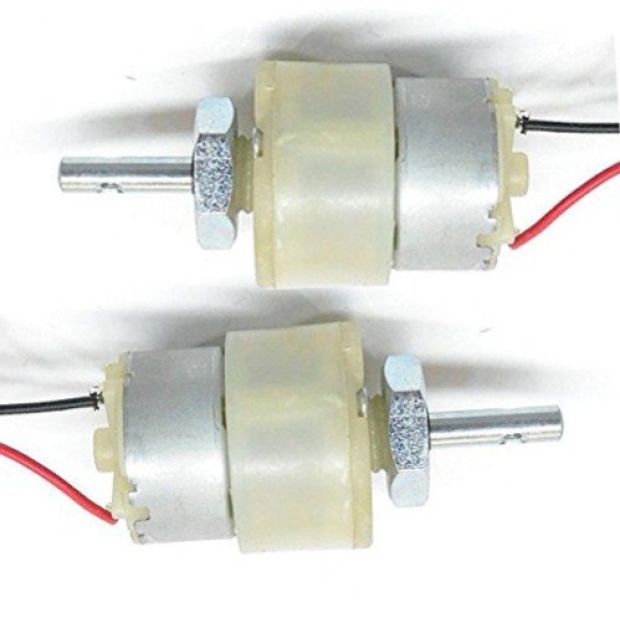

200 RPM DC Gear Motor – 12V High Torque Geared Motor
The 200 RPM DC Gear Motor is a compact, high-torque, low-speed motor ideal for robotics, automation, and DIY projects. The integrated gear reduction system allows for enhanced torque output while maintaining a manageable rotational speed, making it perfect for driving wheels, actuators, or any load requiring controlled movement. A compact and powerful 200 RPM DC geared motor with high torque, ideal for robotics, conveyor belts, automation mechanisms, and DIY robotic vehicles. Operates efficiently on 6V–12V DC and offers reliable torque and speed balance.
₹ 168
₹249
249
| : | |
| Made In : | India |
Detailed Description:
This 200 RPM DC Gear Motor is designed for precision movement in compact robotic or automated systems. With a metal/plastic gear assembly, it provides high torque output while maintaining moderate speed. It runs efficiently on 6V to 12V DC, making it perfect for Arduino, Raspberry Pi, and embedded applications.
Suitable for 2WD robots, line followers, obstacle avoiders, and gear-based lifting mechanisms, this motor features a D-shaped shaft for secure coupling and easy integration into wheels or gears.
Key Features:
-
Operating speed: 200 RPM at 12V DC
-
Provides high torque suitable for small robots
-
Compact and lightweight design
-
Compatible with BO wheels and couplers
-
Low power consumption, good thermal stability
-
D-shaft for easy mounting
-
Works with motor drivers like L298N, L293D, or BTS7960
Technical Specifications:
| Parameter | Specification |
|---|---|
| Rated Voltage | 6V to 12V DC |
| RPM at 12V | ~200 RPM |
| Gearbox Type | Spur Gear (Plastic or Metal) |
| Shaft Diameter | ~6mm (D-type) |
| Shaft Length | ~18mm |
| Stall Torque (at 12V) | Approx. 2.5–3 kg-cm |
| Motor Body Length | ~55mm |
| Mounting Hole Distance | ~30mm |
| Weight | ~70g |
How to Use:
-
Connect the motor wires to a motor driver (L298N, L293D, etc.)
-
Supply 6V–12V DC through the driver
-
Use a microcontroller (Arduino, ESP32) to control speed and direction
-
Attach a wheel or pulley using a D-shaft coupler
-
Secure the motor using the built-in mounting holes
Applications:
-
2WD/4WD robotic car projects
-
Conveyor belt and lift systems
-
Obstacle-avoiding bots
-
Miniaturized automation equipment
-
Line following and pathfinding robots
-
Arduino & STEM educational kits
Package Includes:
-
1 × 200 RPM DC Geared Motor (6V–12V Compatible)
