The 1N4148 diode is a widely used small-signal fast-switching diode. It is known for its ability to handle low currents and its quick switching characteristics, making it ideal for applications involving signal processing, protection, and switching circuits.

Key Features of the 1N4148 Diode:

1. Type:

   • The 1N4148 is a silicon diode, meaning it is made from silicon material and behaves according to the typical characteristics of a silicon diode.

2. Forward Voltage (Vf):

   • The forward voltage drop for the 1N4148 diode is typically around 0.7V when it is conducting (in forward bias). This is a characteristic of silicon diodes.

3. Current Rating:

   • The 1N4148 is designed for small signal applications and can handle a maximum forward current of 300mA. However, it is commonly used in circuits where the current is much lower, typically under 100mA.

4. Reverse Voltage (Vr):

   • The reverse voltage rating of the 1N4148 diode is typically 100V, meaning it can withstand reverse voltages up to this value without breaking down.

5. Switching Speed:

   • One of the main features of the 1N4148 diode is its fast switching speed, with a reverse recovery time of around 4 nanoseconds. This allows it to switch on and off rapidly, which is ideal for use in high-frequency circuits.

6. Package:

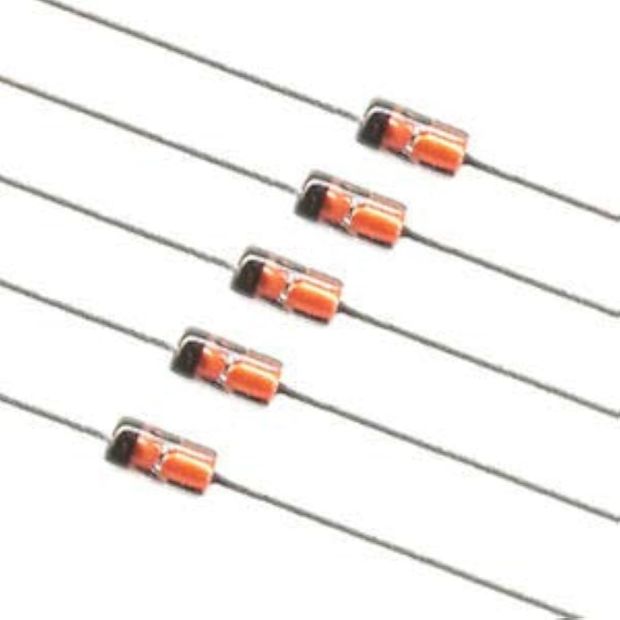

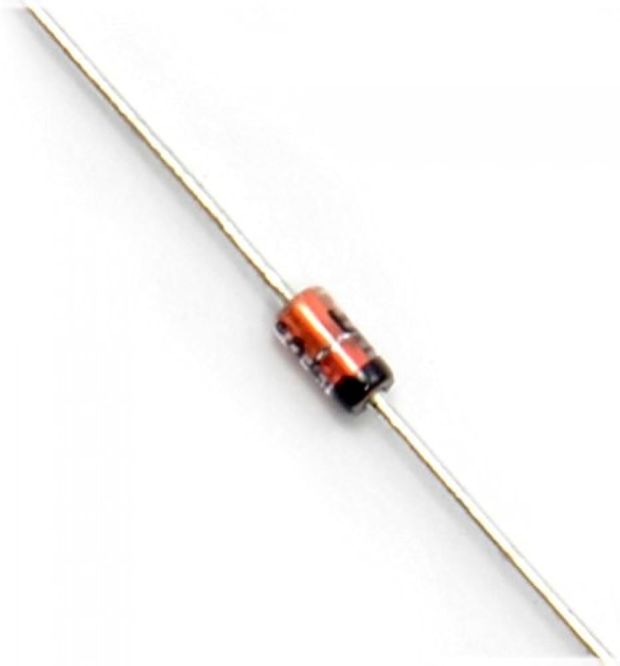

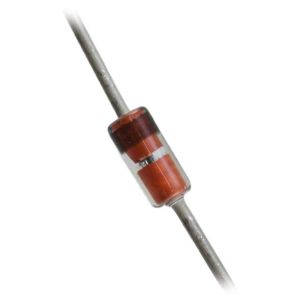

   • The 1N4148 is typically packaged in a DO-35 package, which is a small cylindrical glass body. This makes it suitable for use in compact or high-density circuits.

Applications of the 1N4148 Diode:

1. Signal Clipping and Clamping:

   • The 1N4148 is often used for signal clipping, where it limits the voltage across a circuit to a specific level. This is useful for protecting sensitive components from voltage spikes.

2. Switching Circuits:

   • Due to its fast switching speed, the 1N4148 is commonly used in switching circuits like logic gates, oscillators, and signal demodulation circuits.

3. Protection:

   • It is used in protection circuits to prevent reverse voltage or current from damaging more sensitive components, such as microcontrollers and other ICs.

4. Rectification:

   • The 1N4148 diode can be used for small-signal rectification in circuits where low currents need to be rectified, such as in signal demodulation or in power supply circuits where low voltage levels are used.

5. Flyback Diodes:

   • In inductive load circuits (e.g., relays, motors), the 1N4148 can act as a flyback diode to protect the rest of the circuit from high-voltage spikes generated when the inductive load is turned off.

6. Digital Circuits:

   • The 1N4148 diode is often used in digital circuits where fast switching times are crucial. It can be used for logic-level signal switching, clock recovery, or other high-speed signal processing applications.

7. Capacitor Discharge:

   • The 1N4148 diode is also used in circuits where it discharges a capacitor quickly, such as in pulse circuits or signal timing circuits.

Example Circuit with the 1N4148 Diode:

1. Basic Protection Circuit:

• A 1N4148 diode can be used to protect sensitive components (such as a microcontroller) from reverse voltage. In this case, you would connect the 1N4148 diode in series with the power supply, oriented to block any reverse voltage that could damage the circuit.

2. Switching Circuit:

• The 1N4148 diode can be used in a switching circuit for signal demodulation. For example, in an AM radio receiver, the 1N4148 can be used to rectify the AM signal, allowing the audio signal to pass through while filtering out the carrier wave.

3. Flyback Diode for Inductive Load Protection:

• In a circuit driving an inductive load (e.g., a relay or motor), a 1N4148 diode can be placed in parallel with the load to protect the driving transistor from the high-voltage spike generated when the current through the inductive load is turned off.

Characteristics and Limitations:

• Advantages:

  • Fast switching: The 1N4148 is well-suited for high-speed signal processing applications.
  • Low cost: It is inexpensive and commonly available.
  • Small size: Its compact size makes it suitable for use in tight spaces on PCBs.

• Limitations:

  • Low current handling: The 1N4148 can only handle up to 300mA of forward current, making it unsuitable for high-power applications.
  • Low reverse voltage rating: It can only withstand a reverse voltage up to 100V, so it is not ideal for circuits with higher voltage requirements.

Summary:

The 1N4148 diode is a small-signal, fast-switching diode commonly used in a wide range of electronic applications, from signal processing and switching to protection and rectification. Its quick switching speed, low forward voltage drop, and small size make it an ideal choice for high-frequency circuits, logic gates, and small-signal applications. However, its low current handling and reverse voltage ratings limit its use in high-power circuits.
