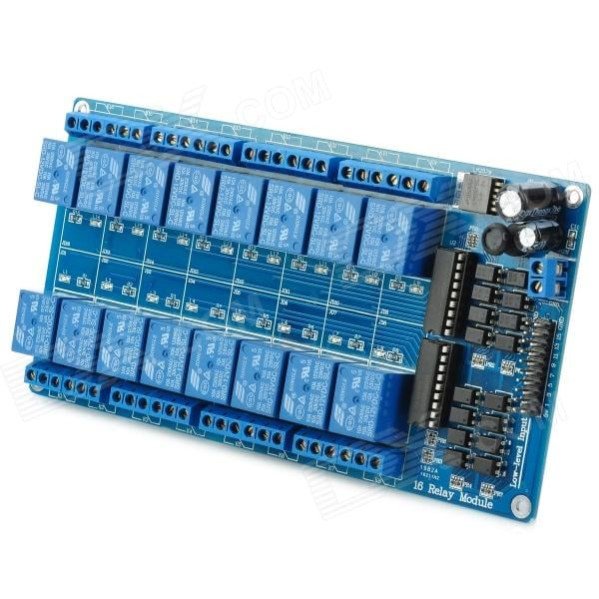

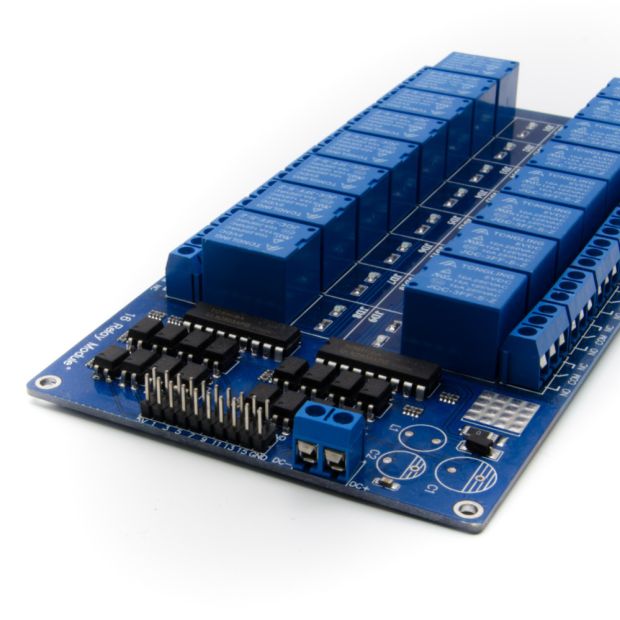

16-Channel 5V Relay Module Description

A 16-Channel 5V Relay Module is an electromechanical switching device designed to control high voltage devices using low voltage digital signals (such as those from a microcontroller like Arduino, Raspberry Pi, ESP32, etc.). Each channel on the module can control an individual electrical device, giving the user the ability to operate up to 16 different AC or DC loads.

Key Features:

• Channels: 16 independent relays

• Operating Voltage: 5V DC

• Trigger Voltage: Typically 0V (LOW) to activate the relay (active LOW logic)

• Relay Type: SPDT (Single Pole Double Throw)

• Load Capacity (per relay):

  • AC: Up to 250V @ 10A

  • DC: Up to 30V @ 10A

• Opto-Isolated Inputs: Each relay channel is opto-isolated for better protection and noise reduction

• LED Indicators: Each relay has an onboard LED indicator showing the relay's ON/OFF status

• Driver Circuit: Includes transistors and flyback diodes for reliable switching

• Mounting Holes: Pre-drilled for easy mounting on cases or panels

• Control Interface: 16 digital input pins (IN1 to IN16), typically active LOW

• Power Supply:

  • Relay power (JD-VCC): Connects to 5V for driving relays

  • Logic power (VCC): Connects to 5V from microcontroller

  • GND: Common ground

Pin Configuration:

• IN1 to IN16: Control inputs for each relay

• GND: Ground

• VCC: Logic power supply (from controller)

• JD-VCC: Relay power (separate 5V for relay coil, often with jumper)

• COM (Common), NO (Normally Open), NC (Normally Closed): Relay switch terminals for each channel

Applications:

• Home automation (lights, fans, ACs, etc.)

• Industrial automation

• Smart energy systems

• IoT projects

• Security systems

• Remote switching of appliances or motors

Notes:

• Make sure the control board and relays share a common ground.

• Remove the jumper between VCC and JD-VCC if you want to isolate relay power from control logic power.
