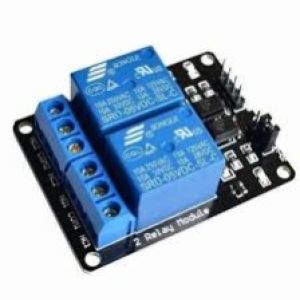

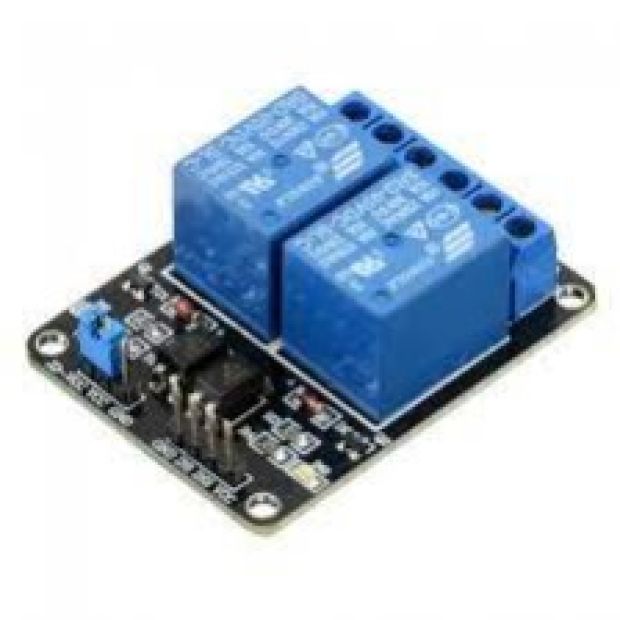

12 v dc 2 channel relay
12v 2 Channel Relay module and each one needs 15-20mA Driver Current. Both controlled by 12V and 5V input Voltage. Equipped with high-current relay, AC250V 10A ; DC30V 10A. Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic active low).
₹ 71 ₹99
99
![](https://electroboat.in/assets/front_end/classic/images/cod_logo.png)
![](https://electroboat.in/assets/front_end/classic/images/cancelable.png)
![](https://electroboat.in/assets/front_end/classic/images/returnable.png)
Made In : | India |
Add FAQ
A 12V DC 2-channel relay module is a component used to control two devices or circuits with a single low-power signal. Here's an overview of its features, specifications, wiring, and applications:
Key Features
- Dual Channel: Controls two separate circuits, allowing for more versatile applications.
- 12V DC Operation: Designed to work with a 12V power supply for both the relay coils and the load.
- Isolation: Provides electrical isolation between the control circuit (like a microcontroller) and the high-power load.
- Normally Open (NO) / Normally Closed (NC): Can come in configurations for different control needs.
Specifications
- Coil Voltage: Typically requires 12V DC to activate.
- Contact Ratings: Usually rated for around 10A at 250V AC or 30V DC, but this can vary based on the relay model.
- Input Control: Requires a control signal, which can be from a microcontroller like Arduino or Raspberry Pi.
Wiring
-
Power Connections:
- Connect the positive terminal of a 12V power supply to the relay module’s VCC pin.
- Connect the ground to the GND pin.
-
Control Connections:
- Connect your control signals (e.g., from a microcontroller) to the input pins (IN1 and IN2) corresponding to each relay channel.
-
Load Connections:
- For each relay channel, connect the load to the output terminals:
- COM (Common): Connect to the power source of your load.
- NO (Normally Open) or NC (Normally Closed): Connect to the device being controlled based on your application.
- For each relay channel, connect the load to the output terminals:
Common Applications
- Home Automation: Control lights, fans, or appliances.
- Automotive: Switch on/off various electrical components in vehicles.
- Microcontroller Projects: Use in conjunction with Arduino or Raspberry Pi to control high-voltage devices.
Installation Tips
- Use Flyback Diodes: For inductive loads (like motors), use flyback diodes to protect against voltage spikes.
- Cooling: Ensure adequate cooling to prevent overheating during operation.
Troubleshooting Tips
- Relay Not Triggering: Check the control signal and ensure proper wiring.
- Inconsistent Performance: Inspect the relay module for damage or loose connections.
If you have specific questions about wiring, components, or use cases, let me know!
