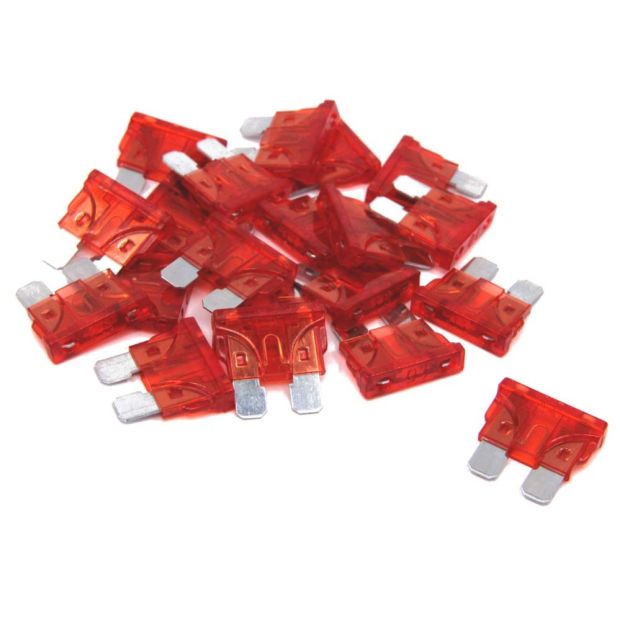

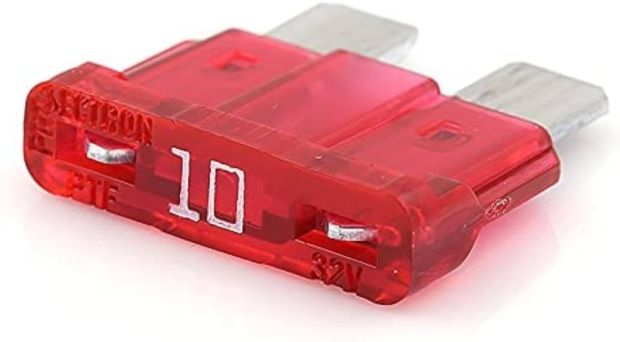

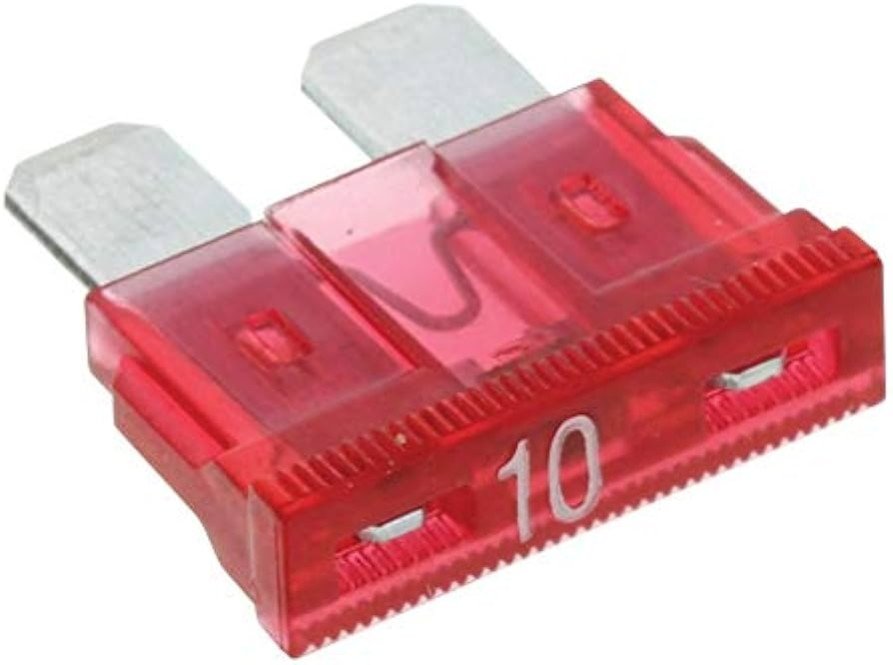

A 10 Amp Car Blade Fuse (10 pcs) is a type of fuse commonly used in automotive electrical systems to protect the wiring and components from overcurrent conditions. Blade fuses are widely used in vehicles to ensure the safety of electrical circuits and to prevent damage caused by short circuits or overloads.

Key Features and Specifications:

1. Current Rating:

   • 10 Amp: This fuse is rated to handle a 10 ampere (A) current. If the current exceeds this value, the fuse will blow (the internal element will melt), protecting the circuit from further damage.

2. Fuse Type:

   • Blade Fuse: This fuse has a rectangular plastic body with two metal blades (or prongs) that fit into a fuse holder or fuse box. The design is compact and easy to replace. Blade fuses are also known as spade fuses or ATO/ATC fuses in the automotive context.

3. Voltage Rating:

   • Typically 32V (in automotive circuits). Blade fuses for automotive use are generally rated for up to 32V DC, which is common in most car electrical systems.

4. Pack Size:

   • 10 pcs: This package includes 10 individual fuses, providing replacements for multiple circuits in a car or other vehicles. This is a common quantity for automotive maintenance.

5. Color Coding:

   • The 10 Amp fuse is typically colored red in many standard fuse kits. Fuse color coding is used to differentiate between different current ratings. Each current rating has a corresponding color:
     • Red for 10A
     • Blue for 15A
     • Yellow for 20A
     • Green for 30A, etc.

How Blade Fuses Work:

1. Fuse Construction:
   • Inside the fuse is a thin metal wire or strip that is designed to melt when the current exceeds the fuse's rated capacity (in this case, 10A). This interrupts the flow of electricity and prevents damage to the rest of the electrical system.
2. Blow Mechanism:
   • When the current exceeds 10 amps, the metal element inside the fuse heats up and melts, breaking the electrical connection. This stops the flow of current and prevents further damage to the wiring or components in the circuit.
3. Fuse Holder:
   • Blade fuses are typically inserted into fuse holders or fuse blocks in the vehicle’s fuse box. The two metal prongs make contact with the holder, allowing current to flow through the fuse while it is intact.

Applications of the 10 Amp Car Blade Fuse:

1. Automotive Electrical Systems:

   • Blade fuses are primarily used in automobiles to protect various electrical circuits and devices. Some typical components and systems that may use a 10A fuse include:
     • Interior lighting (such as dashboard lights or interior cabin lights).
     • Radio and entertainment systems.
     • Power outlets or cigarette lighter sockets.
     • Window motors (such as electric windows).
     • Horn circuits.

2. Motorcycles and Recreational Vehicles (RVs):

   • These fuses are not limited to cars but are also used in motorcycles, trucks, and RVs to protect electrical systems, especially for lower-power devices.

3. Car Accessories:

   • Used to protect circuits for aftermarket car accessories, such as dash cams, GPS units, or LED lights installed in vehicles.

4. Electrical Equipment:

   • They can be used in low-voltage 12V DC circuits where protection is needed, like camping gear, boats, or other vehicles with 12V electrical systems.

Advantages of Blade Fuses:

1. Easy to Replace:

   • Blade fuses are easy to replace, as they are designed to fit directly into a fuse holder or fuse block. Replacing a blown fuse is quick and straightforward.

2. Compact and Reliable:

   • The compact design of blade fuses allows them to fit into tight spaces within fuse boxes, making them ideal for vehicles with limited space for electrical components.

3. Widely Available:

   • Blade fuses are widely used and readily available in auto parts stores, online retailers, and hardware stores. The color coding also helps users quickly identify the correct fuse for a circuit.

4. Multiple Pack Sizes:

   • Fuses are often sold in multi-packs (like the 10 pcs pack), making it easier to keep spares on hand for replacement when a fuse blows.

How to Use and Replace:

1. Identify the Fuse:
   • First, identify the blown fuse by checking the fuse box or using a fuse tester. If the fuse is visibly broken or the metal wire inside is melted, it’s blown.
2. Remove the Blown Fuse:
   • Use a fuse puller or small pliers to remove the blown fuse from the fuse box.
3. Insert the New Fuse:
   • Take a new 10 Amp blade fuse from the pack and insert it into the same slot in the fuse box, ensuring that the metal prongs make good contact with the fuse holder.
4. Check the Circuit:
   • After replacing the fuse, test the circuit to ensure it is working properly. If the fuse blows again, there may be an underlying issue with the circuit, such as a short or malfunctioning component.

Safety Considerations:

• Correct Fuse Rating: Always replace the fuse with one of the same current rating (10A in this case) to ensure proper protection for the circuit. Using a higher-rated fuse could allow too much current to flow, potentially damaging components or causing fires.

• Inspect for Faults: If fuses frequently blow in a particular circuit, there could be an underlying fault, such as a short circuit or malfunctioning component, that needs to be fixed.

Conclusion:

The 10 Amp Car Blade Fuse (10 pcs) is a reliable and essential component for protecting the electrical systems in automobiles, motorcycles, RVs, and other vehicles. Its compact design, ease of use, and clear color coding (red for 10A) make it an excellent choice for low-power circuits like interior lighting, radios, and accessories. By using the correct fuse, you ensure the safety of your electrical systems, preventing damage from overcurrent or short-circuit conditions.
