Detailed Description:

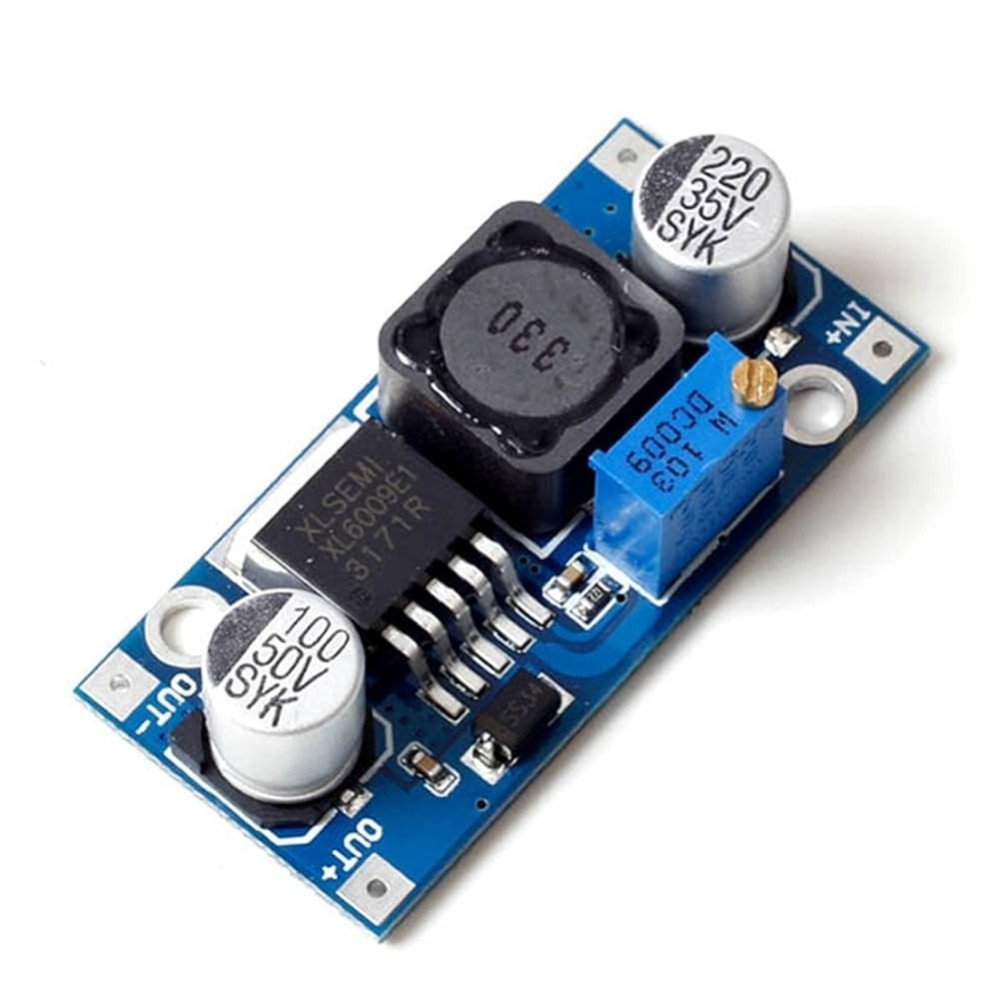

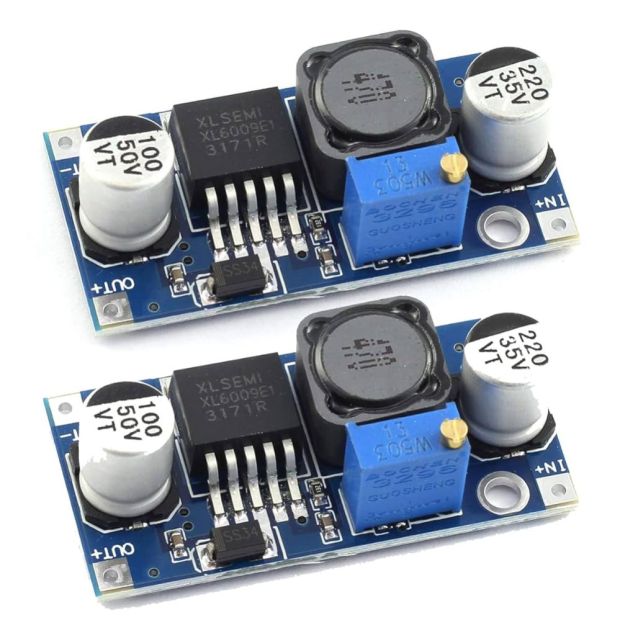

The XL6009 Boost Converter Module is a high-performance DC-DC step-up (boost) power supply module based on the XL6009 switching regulator IC. It allows you to convert low voltage DC (3V–32V) into a higher adjustable DC output (5V–35V), making it a versatile tool for powering devices that need a stable higher voltage.

This module is a great replacement for the older LM2577 module, offering better conversion efficiency and faster switching (400kHz). It includes a built-in power LED, a multi-turn potentiometer for precise voltage adjustment, and supports up to 4A peak output current (recommended ≤2A continuous with heatsink).

Key Features:

• Wide input voltage: 3V to 32V DC

• Adjustable output voltage: 5V to 35V DC

• Based on XL6009 regulator IC

• High efficiency: up to 94% (depending on load)

• Built-in power LED indicator

• Compact and lightweight module

• Ideal for Arduino, robotics, IoT, and battery-powered circuits

• Thermal and short-circuit protection (with proper cooling)

Technical Specifications:

How to Use:

1. Connect input voltage (3V to 32V) to VIN+ and VIN–

2. Use a multimeter to monitor the output

3. Rotate the potentiometer clockwise to increase output voltage

4. Ensure output doesn’t exceed your device rating

5. Add heatsink or active cooling if output >1.5A continuously

6. Connect output to your device or load (VOUT+ and VOUT–)

Applications:

• Powering Arduino and Raspberry Pi from battery

• Boosting 3.7V lithium battery to 5V/9V/12V

• LED strips, fans, or sensors needing higher voltage

• Solar-powered applications and battery charging

• Portable chargers or voltage test benches

• DIY electronics, robotics, and embedded systems

Package Includes:

• 1 × XL6009 Adjustable Step-Up (Boost) Converter Module
