Detailed Description

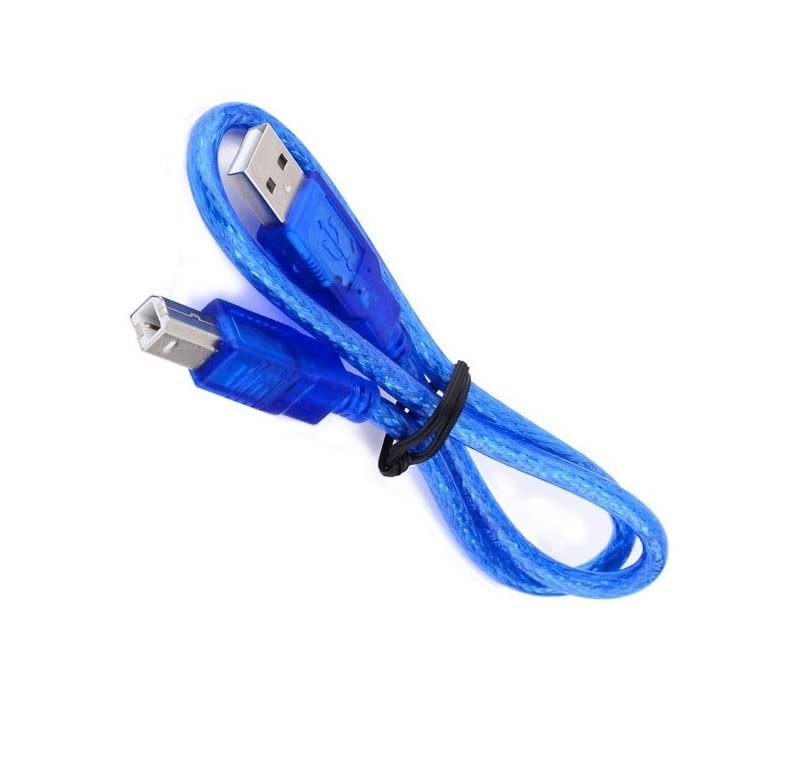

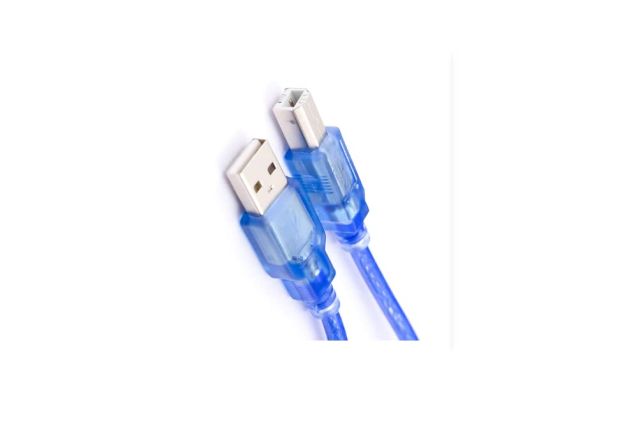

The USB 2.0 Type-A Male to Type-B Male 1-Meter Cable serves as a foundational link for both desktop manufacturing and electronic product design. While wireless networks dominate modern consumer gadgets, high-fidelity physical data pipelines remain irreplaceable for industrial hardware, desktop printing, and microprocessor flashing. This cable features a universal Type-A male plug that slides directly into any standard host computer, laptop, or USB hub. The downstream terminal is an active Type-B male block—characterized by its signature square frame with beveled top corners—engineered to lock securely into heavy-duty hardware ports.

Built to eliminate signal degradation over short-range workbench layouts, the 1-meter span is an optimized structural distance. It provides enough slack to navigate around desk obstacles while keeping the cable short enough to prevent parasitic voltage drops along the inner power rails. The inner layout uses twisted-pair signaling lines to completely eliminate crosstalk, layered beneath a durable Mylar foil and braided aluminum shield. This multi-layer shielding creates an effective electromagnetic boundary, blocking high-frequency electrical noise from nearby high-voltage stepper motors or switching power supplies from corrupting code uploads or data packets.

Key Features and Benefits

• Dual-Core Data & Power Delivery: Seamlessly handles structural firmware flashing data while simultaneously routing up to 5V power to running development boards.

• True 480 Mbps High-Speed Bus: Fully compliant with the legacy USB 2.0 protocol framework, allowing for real-time serial monitor data logging without latency issues.

• Enhanced Shielding Stackup: Formulated with an internal aluminum foil barrier and tight braided grounding shield to combat EMI and RFI interference.

• Rugged Molded Strain Reliefs: Reinforced PVC injection molding at both connector boots absorbs mechanical flexing stress, preventing inner copper fractures.

• Instant Universal Driver Mapping: Operates completely driver-free across Windows, macOS, and Linux, immediately communicating with common USB-serial conversion ICs like the CH340, CP2102, or FTDI chips.

Technical Specifications

How to Use

Basic Peripheral Hookup Routine:

1. Insert the flat USB Type-A connector into an available USB port on your PC, laptop, or host console.

2. Press the square USB Type-B connector firmly into the matching port on your downstream peripheral (such as your printer, scanner, or development board) until it seats fully.

3. The host operating system will automatically handshake with the device's internal controller chip via plug-and-play automation.

Microcontroller Programming Guide (Arduino UNO / MEGA):

1. Connect the Type-A plug to your development computer running the Arduino IDE.

2. Connect the Type-B plug directly to your Arduino UNO or MEGA board. The board's onboard status LEDs should light up instantly as it draws power through the 24 AWG power lines.

3. Navigate to the Tools menu in your IDE, choose your correct board model, and select the newly populated COM/Serial Port.

4. Hit compile and upload; the shielded data lines will push your binary sketch code smoothly without interruption.

Applications

• Microcontroller Prototyping: Serves as the primary data and power link for programming Arduino UNO, Arduino MEGA, and Arduino Leonardo development boards.

• Office Document Production: Reliably links high-speed document scanners, laser printers, multifunction printers (MFPs), and label makers to workstations.

• Desktop Desktop CNC Routing: Transmits continuous real-time coordination G-code paths from a computer directly to GRBL CNC shields or controller boxes.

• Digital Audio Equipment (MIDI): Connects desktop USB audio interfaces, electronic pianos, digital mixing boards, and MIDI controller keyboards to recording software.

• POS Billing Operations: Powers and communicates with desktop receipt thermal printers, barcode scanners, and cash drawer management hubs at checkout counters.

Package Includes

• 1 x 1-Meter High-Speed USB 2.0 Type-A to Type-B Data/Power Cable
